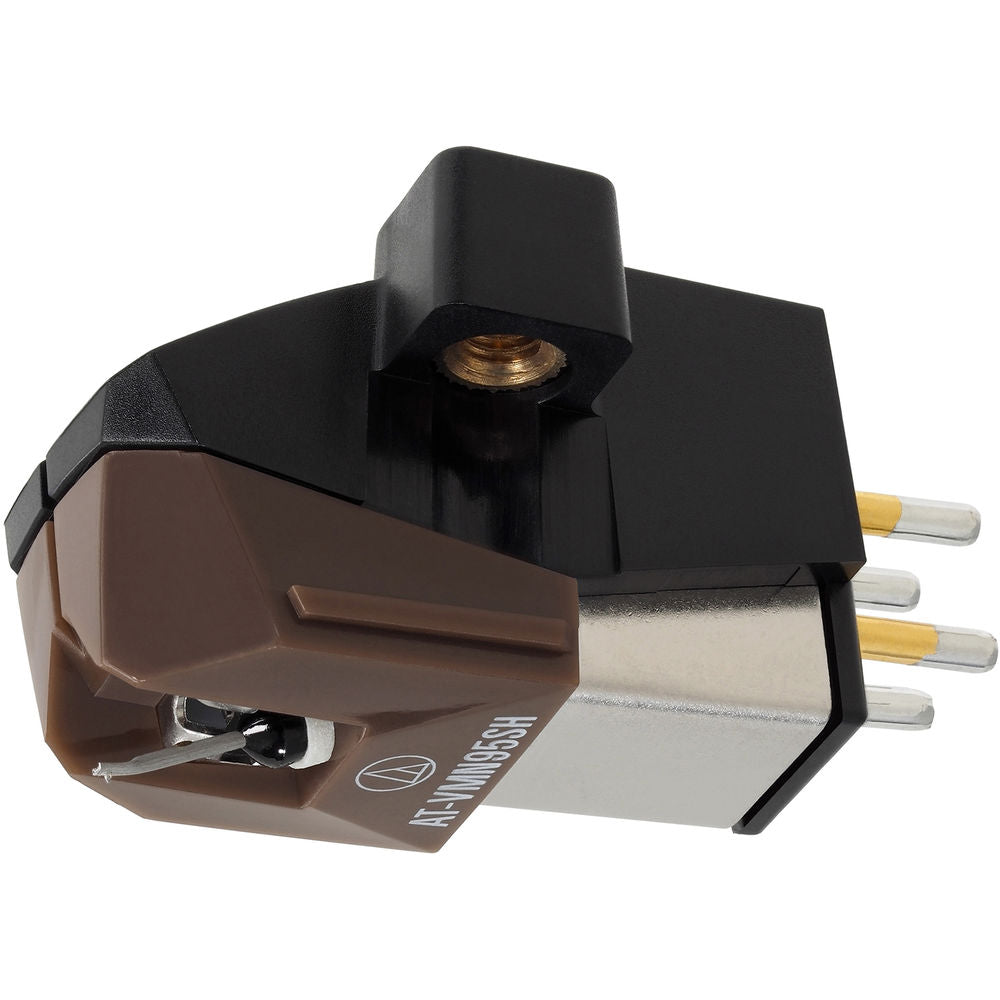

Audio-Technica Consumer AT-VM95SH Dual Moving Magnet Cartridge

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features:

VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus

Aluminum cantilever

Durable low-resonance polymer housing

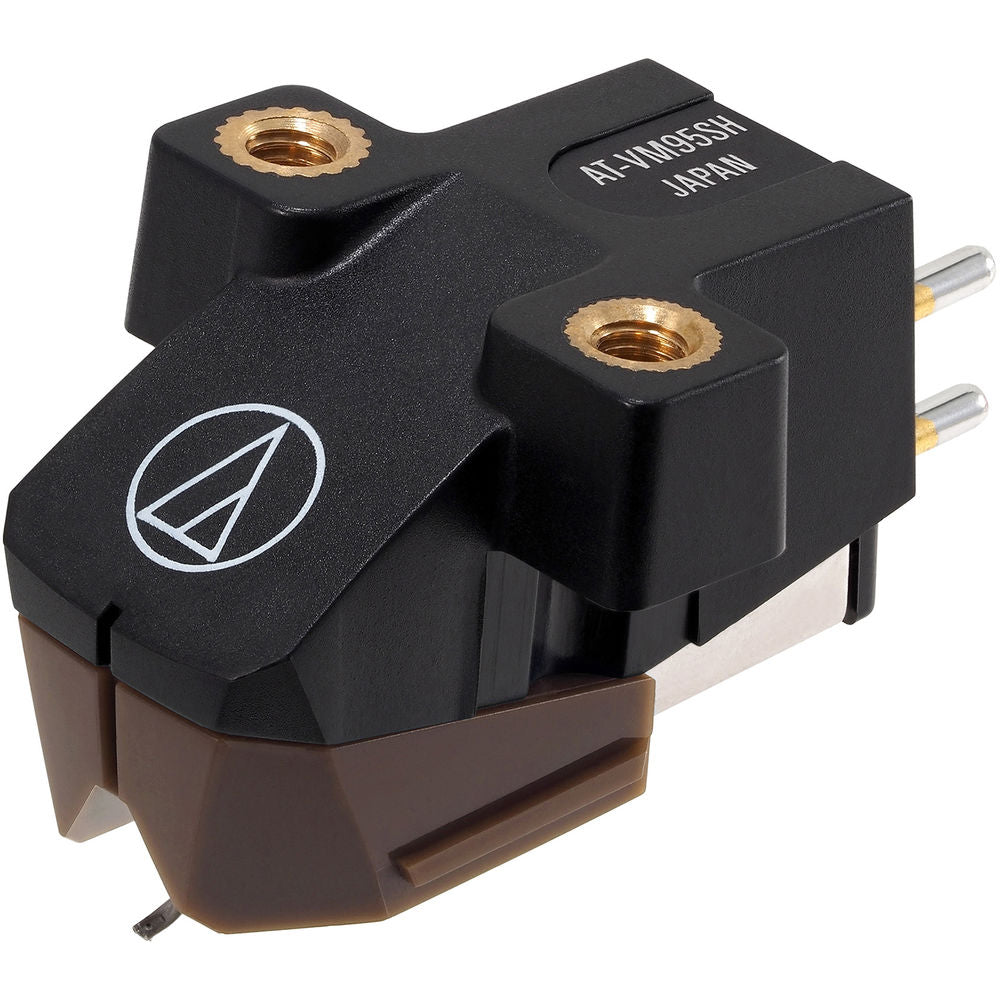

Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required

Compatible with any AT-VMN95 replacement stylus

Specifications:

Frequency Response: 20-25,000 Hz

Channel Separation: 23 (dB at 1 kHz)

Vertical Tracking Angle: 23°

Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)

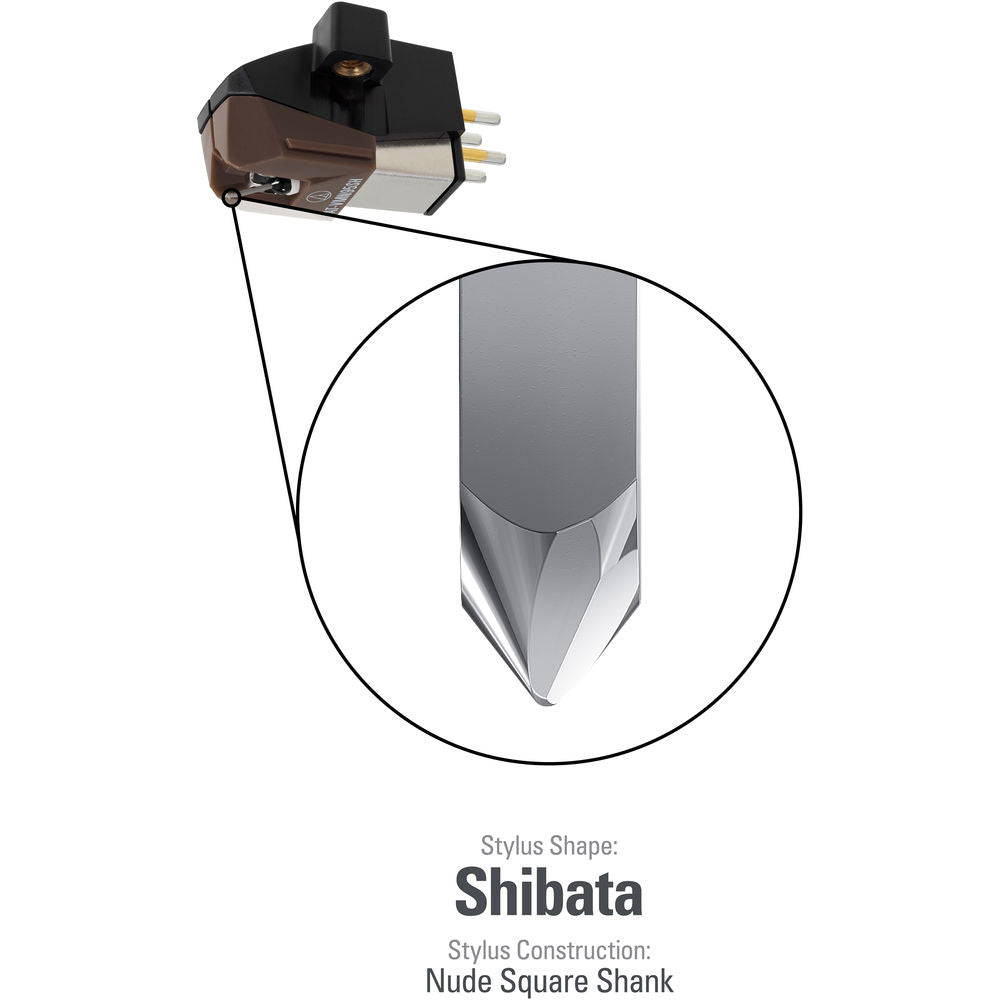

Stylus Construction: Nude square shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 3.3 k ohms (1 kHz)

DC Resistance: 485 ohms

Coil Inductance: 550 mH (1 kHz)

Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 1.5 dB (1 kHz)

Stylus Shape: 2.7 x 0.26 mil Shibata

Cantilever: Aluminum pipe

Static Compliance: 20 x 10 – 6 cm / dyne

Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)

Mounting: Half-inch

Cartridge Weight: 6.1g

Dimensions17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D

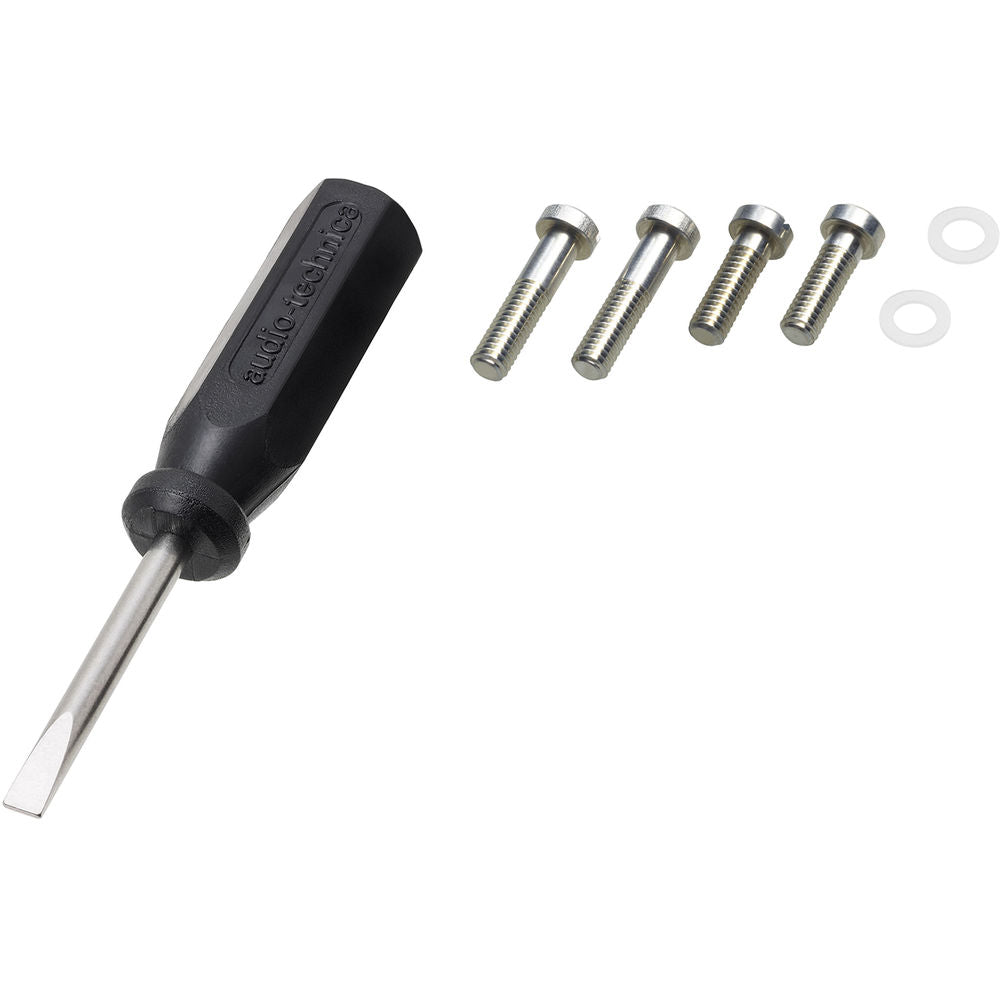

Accessories Included:

• Two 11 mm installation screws
• two 8 mm installation screws
• two washers
• nonmagnetic screwdriver

Model: AT-VM95SH

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: AT-VMN95SH

Stylus Size: 2.7 x 0.26mil

Type: VM Stereo Dual Magnet

Weight: 6.1 g (0.22 oz)

Wire Used for Coil: T.P. Copper
