Audio-Technica Consumer AT-VM95SH/H Cartridge and Headshell Combo Kit
AT-VM95SH/H
Payment plans from Affirm, learn more
- Audio-Technica
- Shipping Calculated at checkout, most in stock products ship same day

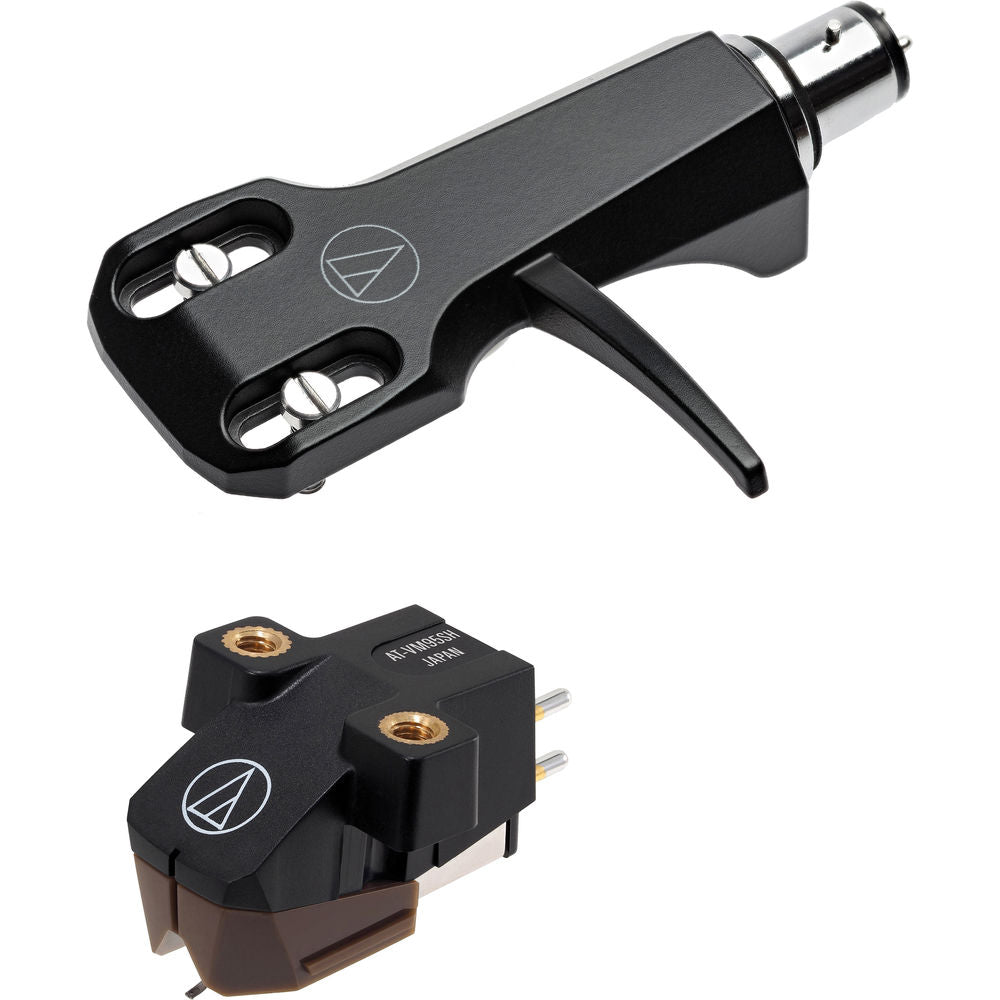

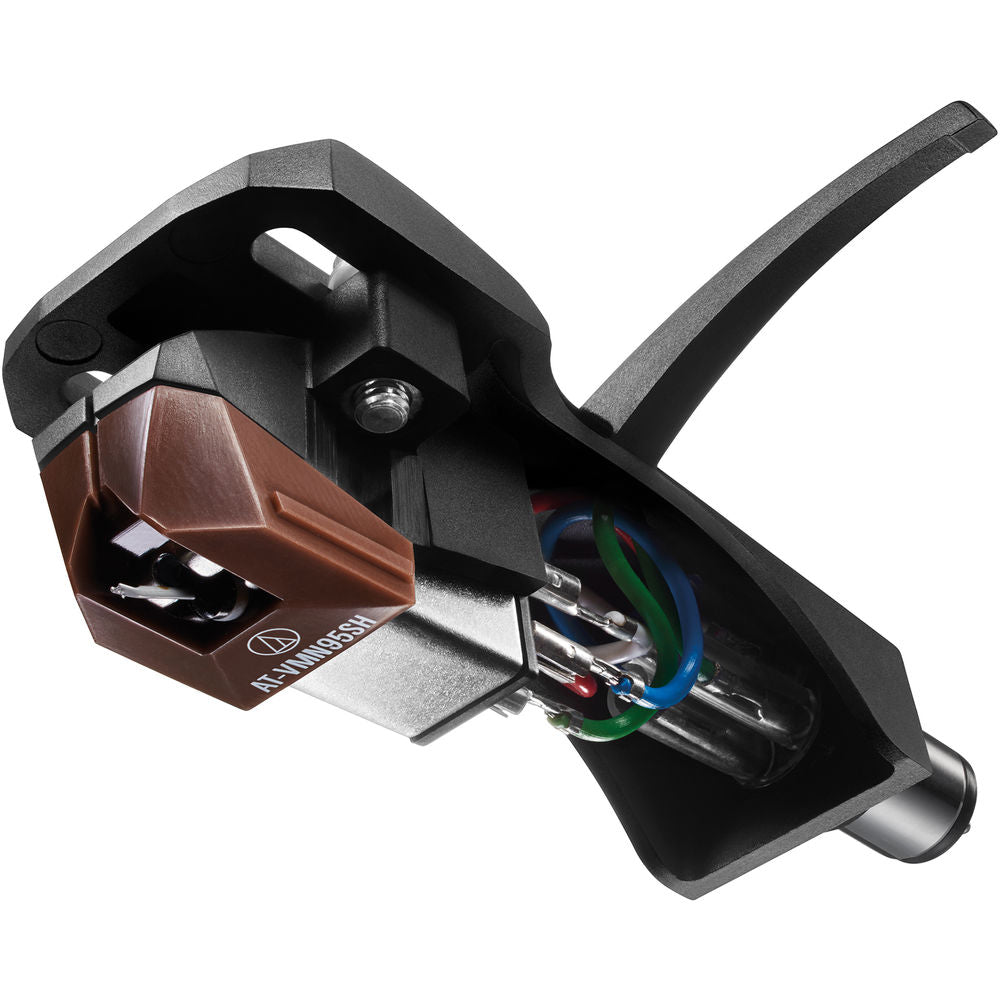

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.
Specifications:
Frequency Response: 20 - 25,000 Hz
Channel Separation: 23 dB (1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
Stylus Construction: Nude Square Shank
Recommended Load Impedance: 47,000 Ω
Coil Impedance: 3.3 kΩ (1 kHz)
DC Resistance: 485 Ω
Coil Inductance: 550 mH (1 kHz)
Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 1.5 dB (1 kHz)
Stylus Shape: Shibata
Cantilever: Aluminium Pipe
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
Mounting: 1/2” centres
Dimensions: 21.2 × 21.4 × 62.4 ( H x W x D mm)
Recommended Load Capacitance: 100-200 pF
Replacement Stylus: AT-VMN95SH
Stylus Size: 2.7 x 0.26mil
Type: VM Stereo Dual Magnet
Weight: 15.5 g
Wire Used for Coil: T.P. Copper
