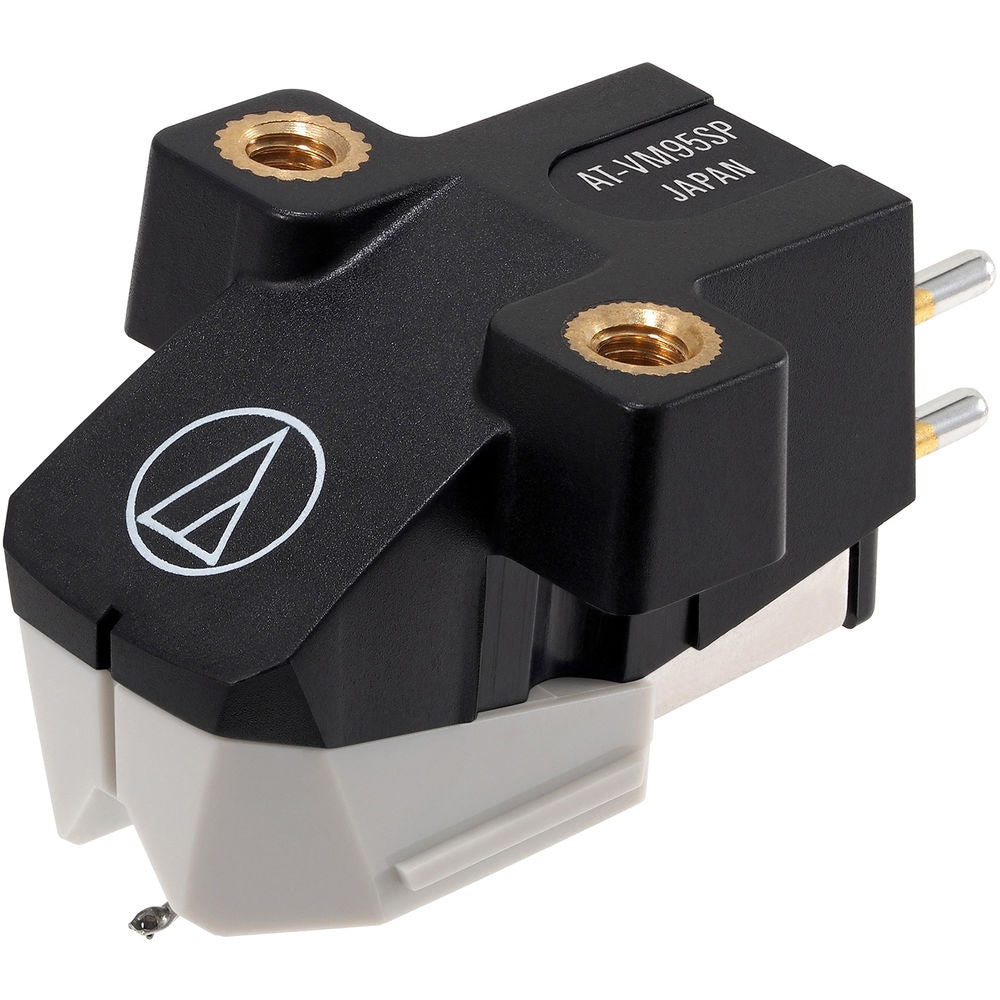

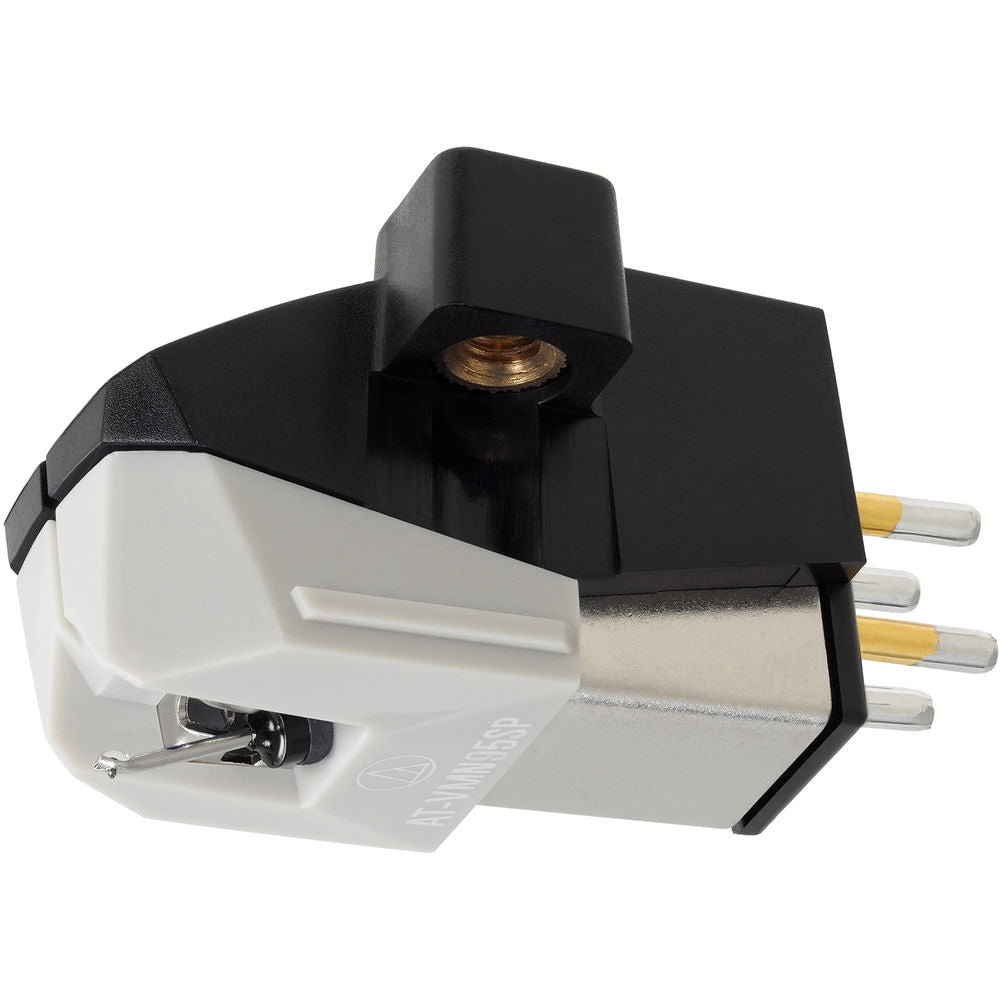

Audio-Technica Consumer AT-VM95SP Dual Moving Magnet Cartridge

This VM95 Series cartridge with 3.0 mil conical stylus fits half-inch mount turntables. While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications:

Frequency Response: 20-20,000 Hz

Channel Separation: N/A

Vertical Tracking Angle: 23°

Vertical Tracking Force: 4.5-5.5 g (5.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 3.3 k ohms (1 kHz)

DC Resistance: 485 ohms

Coil Inductance: 550 mH (1 kHz)

Output Voltage: 2.7 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 1.5 dB (1 kHz)

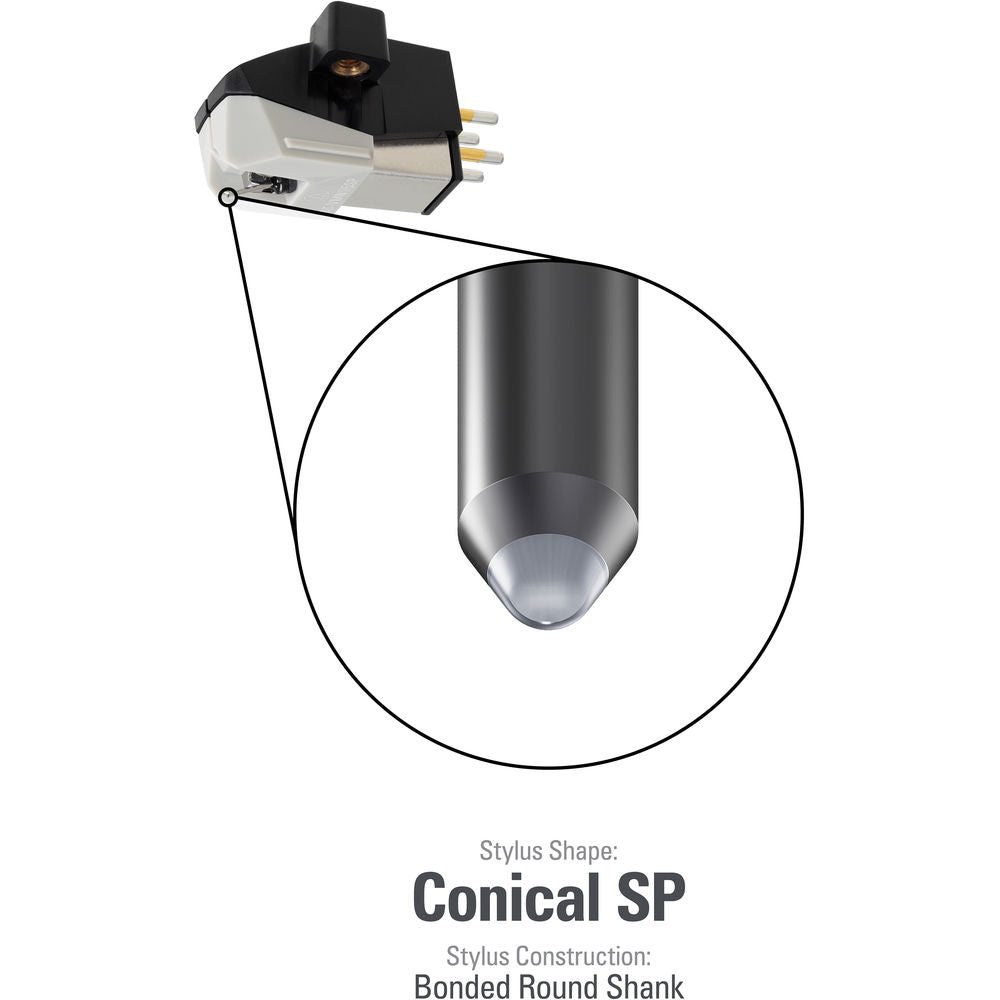

Stylus Shape: 3.0 mil conical

Cantilever: Aluminum pipe

Static Compliance: 12 x 10-6 cm/dyne

Dynamic Compliance: 2 x 10-6 cm/dyne (100 Hz)

Mounting: Half-inch

Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D

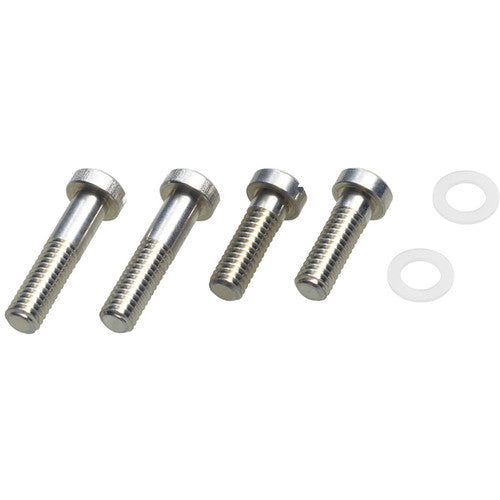

Accessories Included:

• Two 11 mm installation screws
• two 8 mm installation screws
• two washers

Model: AT-VM95SP

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: AT-VMN95SP

Stylus Size: 3 mil

Type: VM Stereo Dual Magnet

Weight: 6.1 g (0.22 oz)

Wire Used for Coil: T.P. Copper
