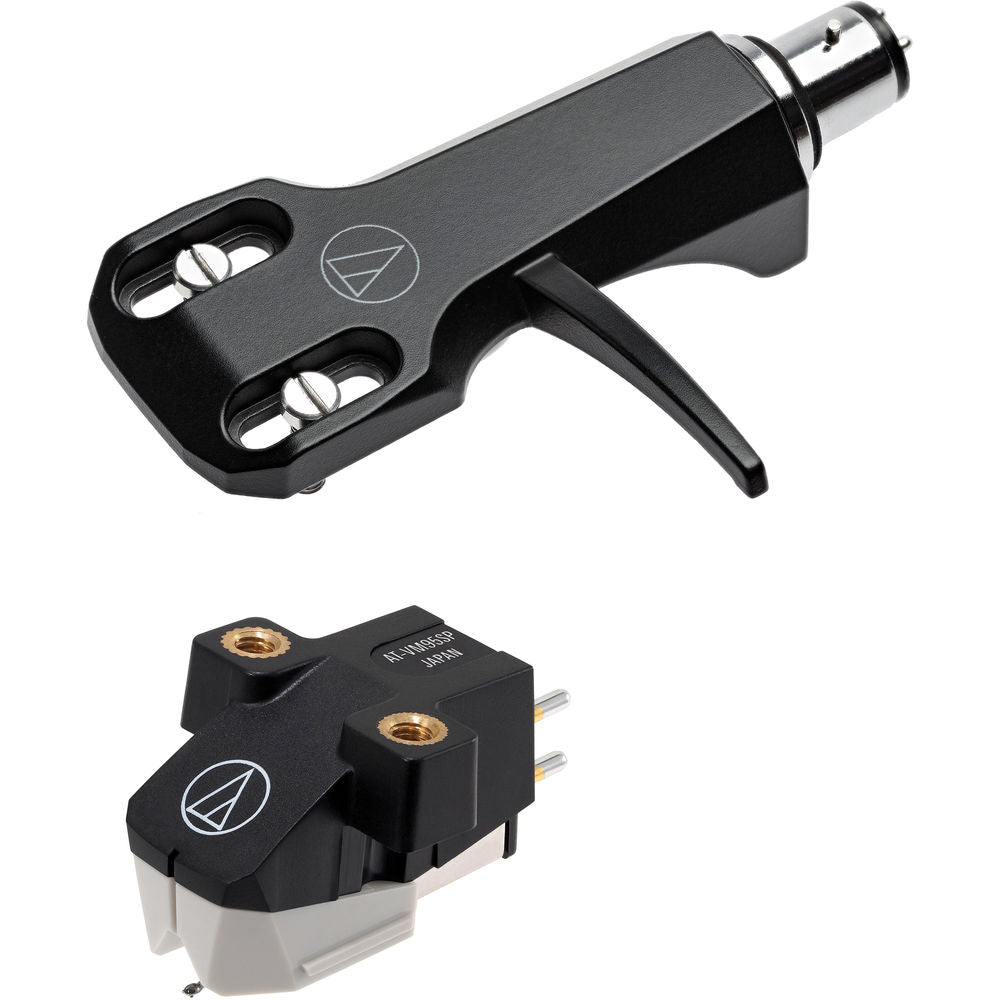

Audio-Technica Consumer AT-VM95SP/H Cartridge and Headshell Combo Kit

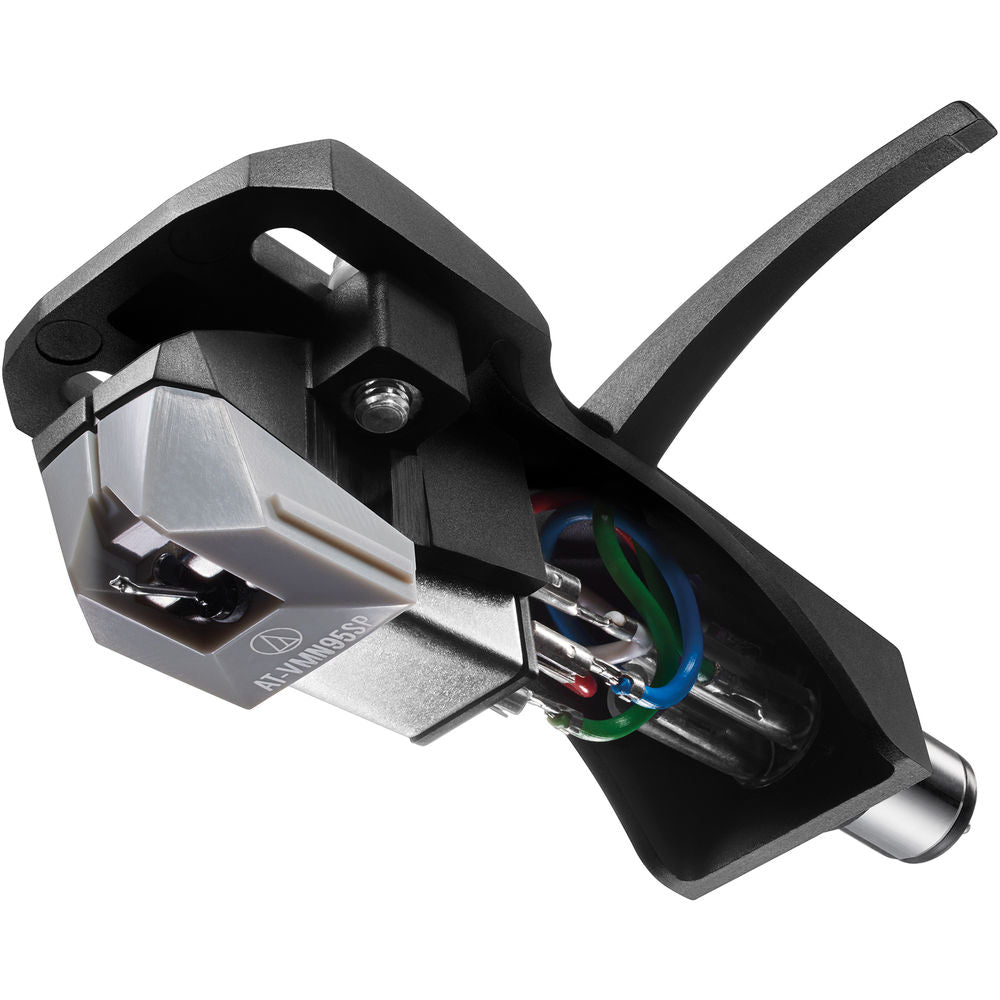

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features:

• VM dual magnet cartridge with 3.0 mil conical stylus
• Aluminum cantilever
• Specially wound coils increase output voltage
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
• Compatible with any AT-VMN95 replacement stylus
• Universal ½"-mount headshell for 4-pin turntable cartridges

Specifications:

Frequency Response: 20-20,000 Hz

Channel Separation: N/A

Vertical Tracking Angle: 23°

Vertical Tracking Force: 4.5-5.5 g (5.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 3.3 k ohms (1 kHz)

DC Resistance: 485 ohms

Coil Inductance: 550 mH (1 kHz)

Output Voltage: 2.7 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 1.5 dB (1 kHz)

Stylus Shape: 3.0 mil conical

Cantilever: Aluminum pipe

Static Compliance: 12 x 10 – 6 cm / dyne

Dynamic Compliance: 2 x 10 – 6 cm / dyne (100 Hz)

Mounting: Half-inch

Dimensions:

• Cartridge: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
• Cartridge & Headshell: 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D

Accessories Included:

• Two 11 mm installation screws
• two 8 mm installation screws
• two washers

Model: AT-VM95SP/H

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: AT-VMN95SP

Stylus Size: 3 mil

Type: VM Stereo Dual Magnet

Weight:

• Cartridge 6.1 g (0.22 oz)
• Cartridge & Headshell 15.5 g (0.55 oz)

Wire Used for Coil: T.P. Copper
