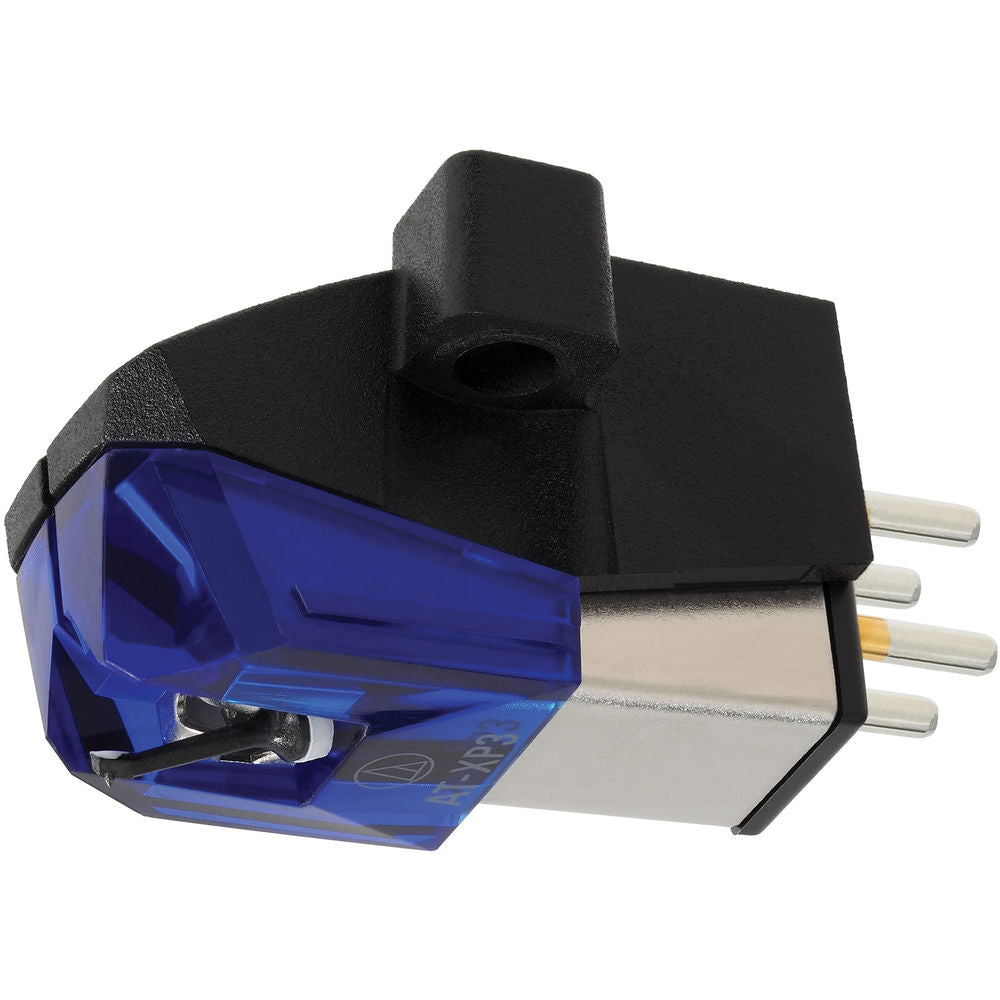

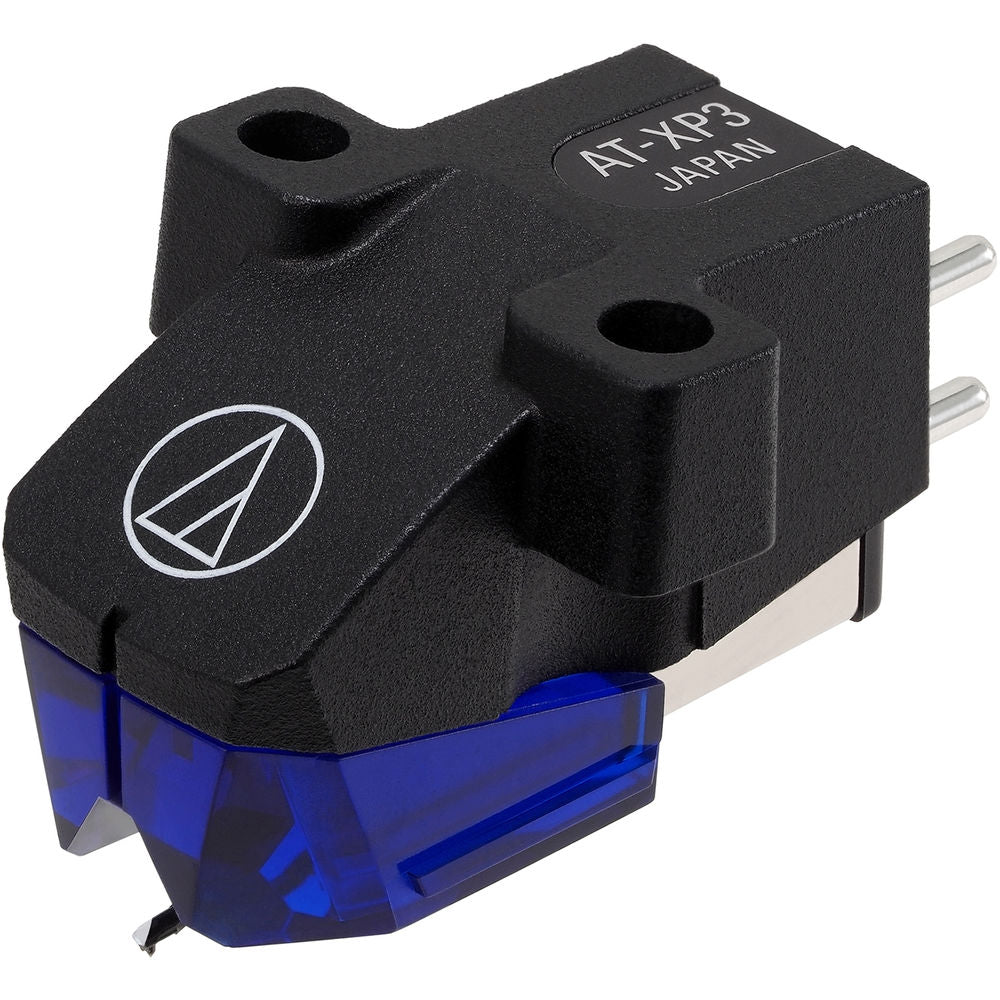

Audio-Technica Consumer AT-XP3 DJ Cartridge

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Specifications:

Frequency Response: 20-18,000 Hz

Channel Separation: 20 (dB at 1 kHz)

Vertical Tracking Angle: 20°

Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 6.7 k ohms (1 kHz)

Coil Inductance: 550 mH (1 kHz)

Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 2.0 dB (1 kHz)

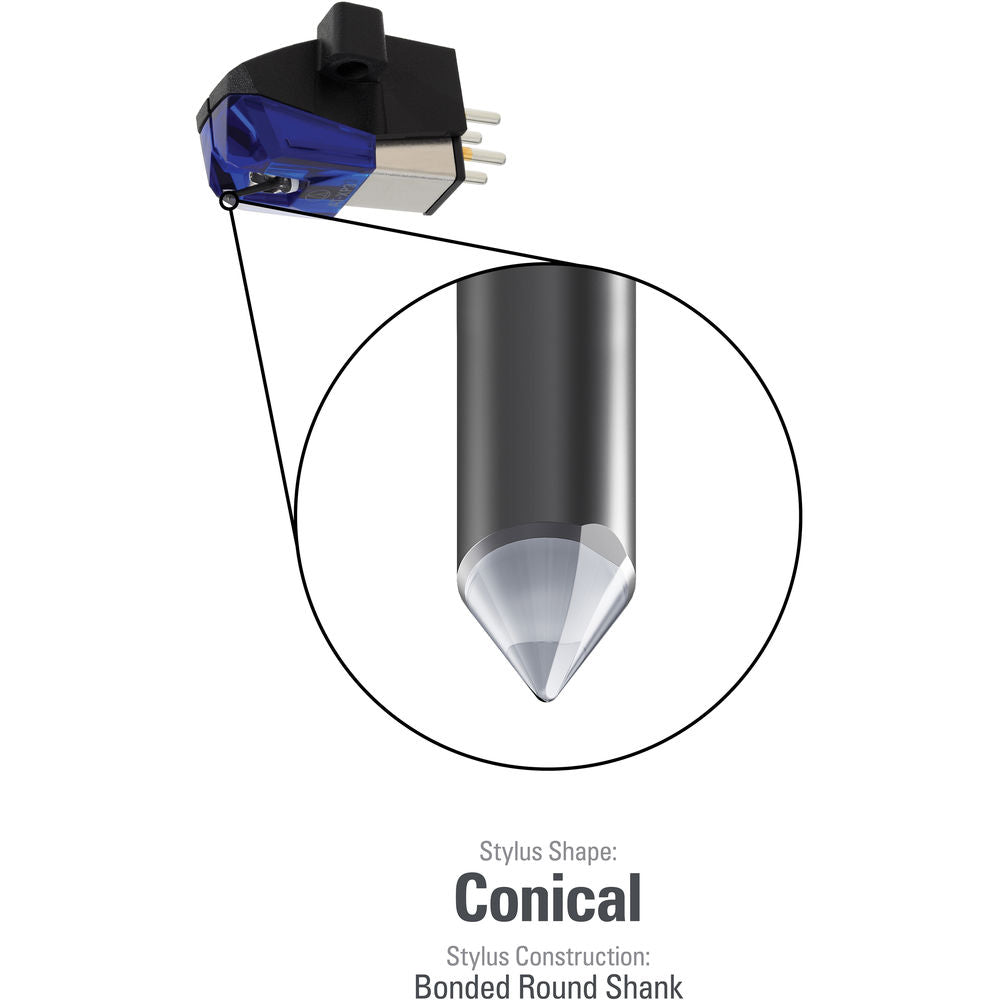

Stylus Shape: 0.6 mil conical

Cantilever: Carbon fiber-reinforced ABS

Static Compliance: 20 x 10 – 6 cm / dyne

Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)

Mounting: Half-inch

Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D

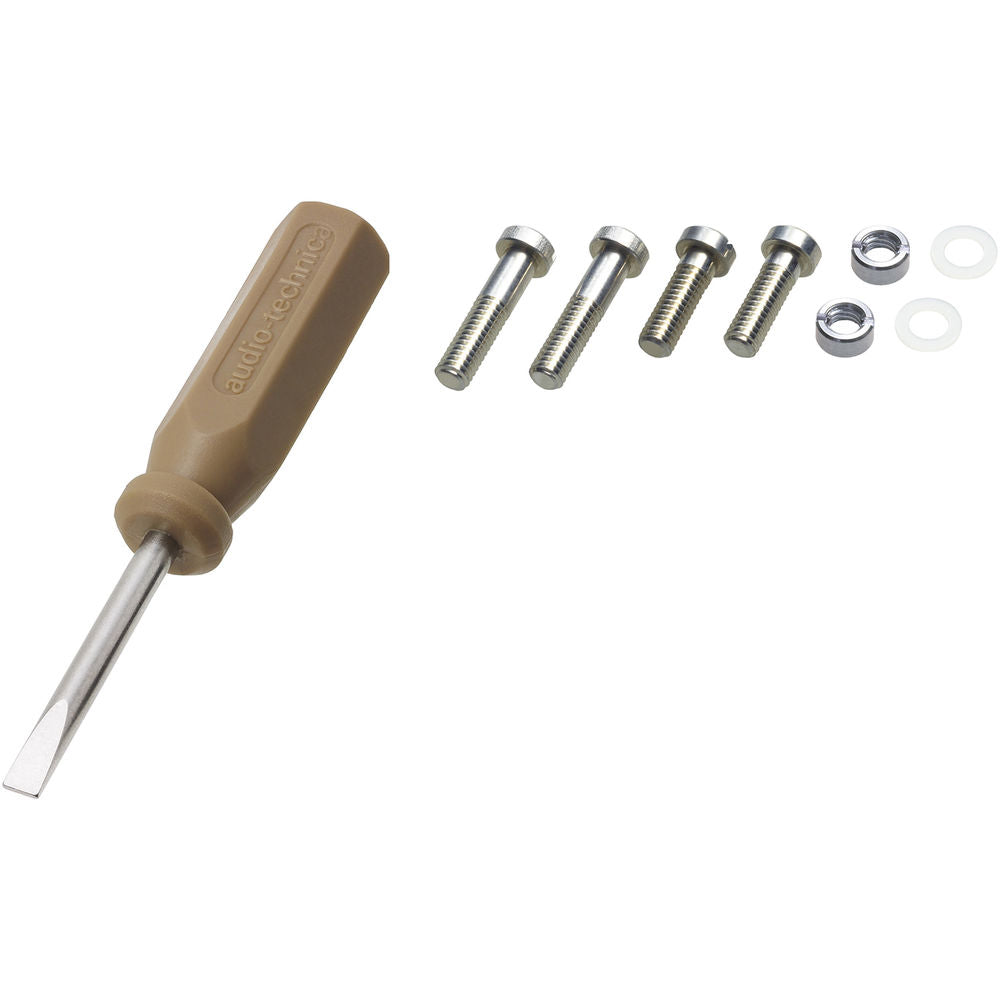

Accessories Included

• Two 11 mm installation screws
• two 8 mm installation screws
• two washers
• two nuts
• non-magnetic screwdriver

Model: AT-XP3

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: ATN-XP3

Stylus Size: 0.6 mil

Weight: 6.2 g (0.22 oz)
