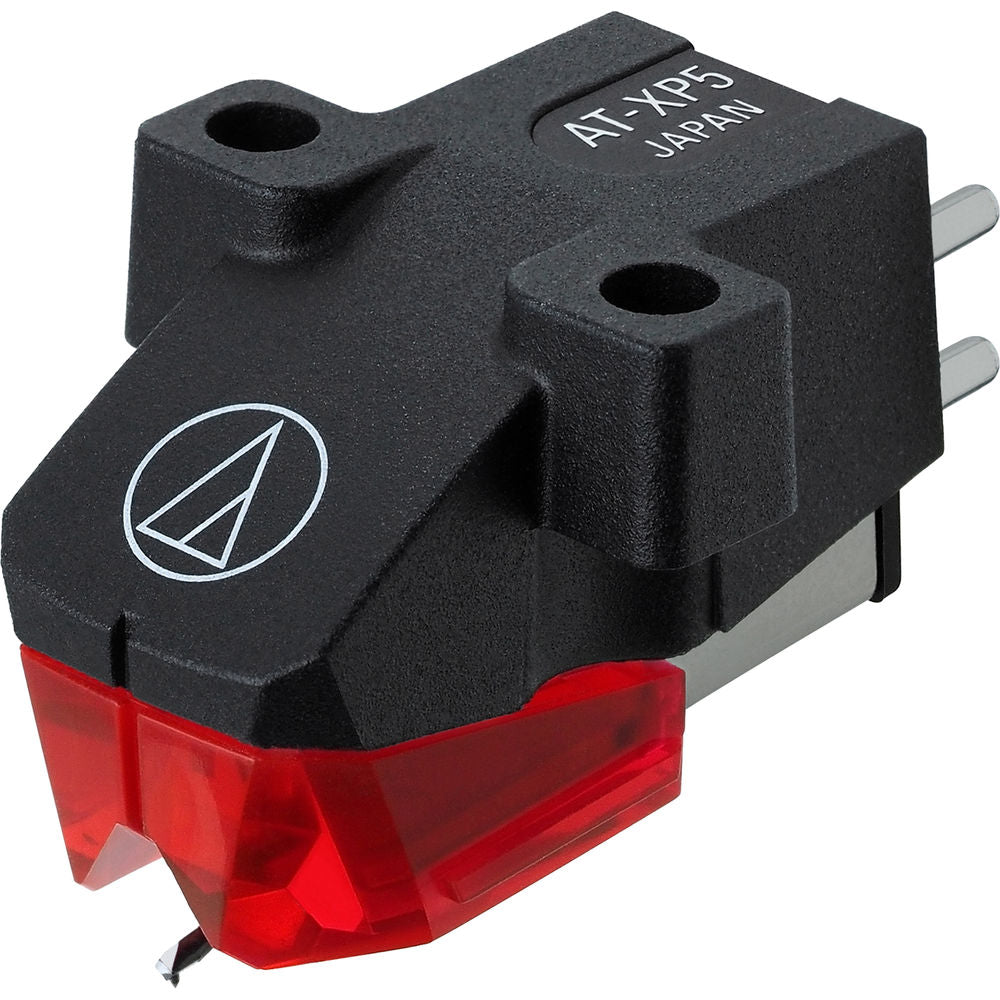

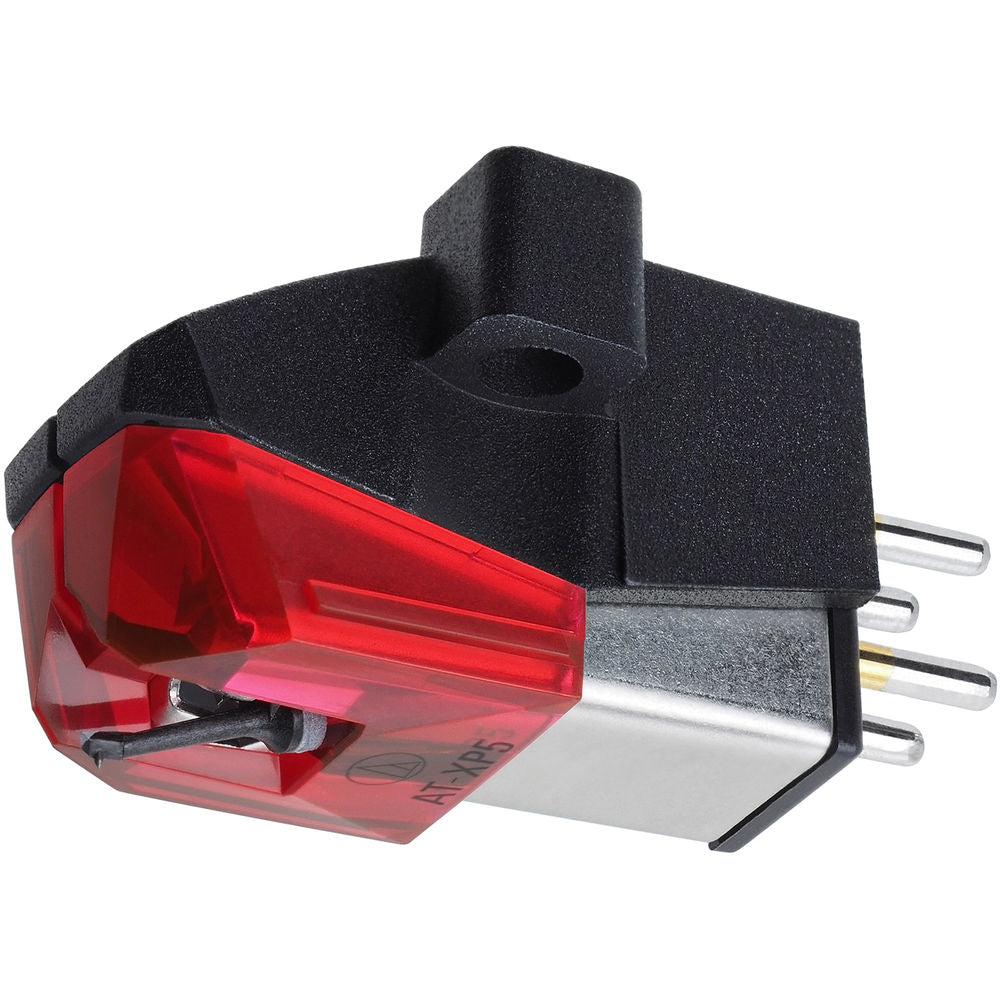

Audio-Technica Consumer AT-XP5 DJ Cartridge

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Specifications:

Frequency Response: 20-18,000 Hz

Channel Separation: 20 (dB at 1 kHz)

Vertical Tracking Angle: 20°

Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 6.7 k ohms (1 kHz)

DC Resistance: 990 ohms

Coil Inductance: 1.0 H (1 kHz)

Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 2.0 dB (1 kHz)

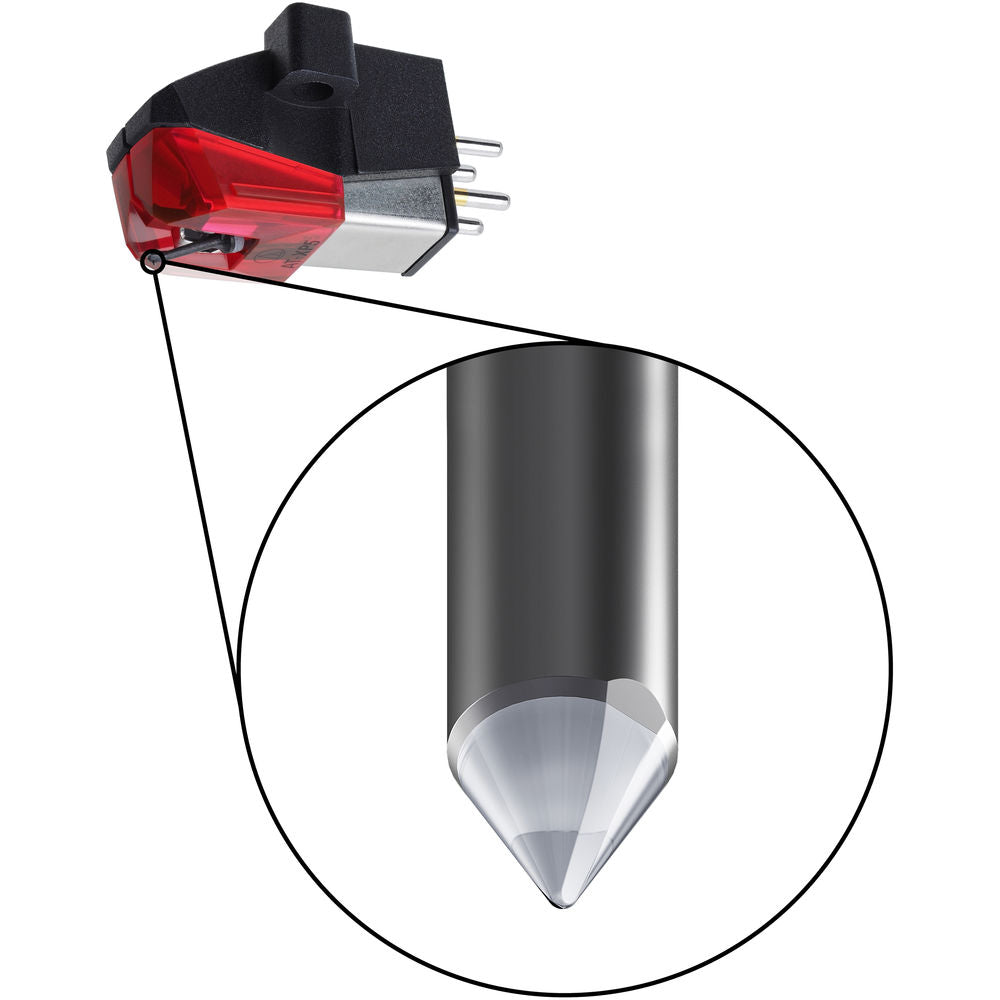

Stylus Shape: 0.3 x 0.7 mil elliptical

Cantilever: Carbon fiber-reinforced ABS

Static Compliance: 20 x 10-6 cm/dyne

Dynamic Compliance: 6.0x10-6cm/dyne (100Hz)

Mounting: Half-inch

Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D

Accessories Included:

• Cartridge installation slotted screws
  • 11.0 mm (0.43”) x 2
  • 8.0 mm (0.31”) x 2
• Washer x 2
• Round nut x 2
• Non-magnetic screwdriver x 1

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: ATN-XP5

Stylus Size: 0.3 x 0.7 mil

Type: VM Dual Magnet

Weight: 6.2 g (0.22 oz)
