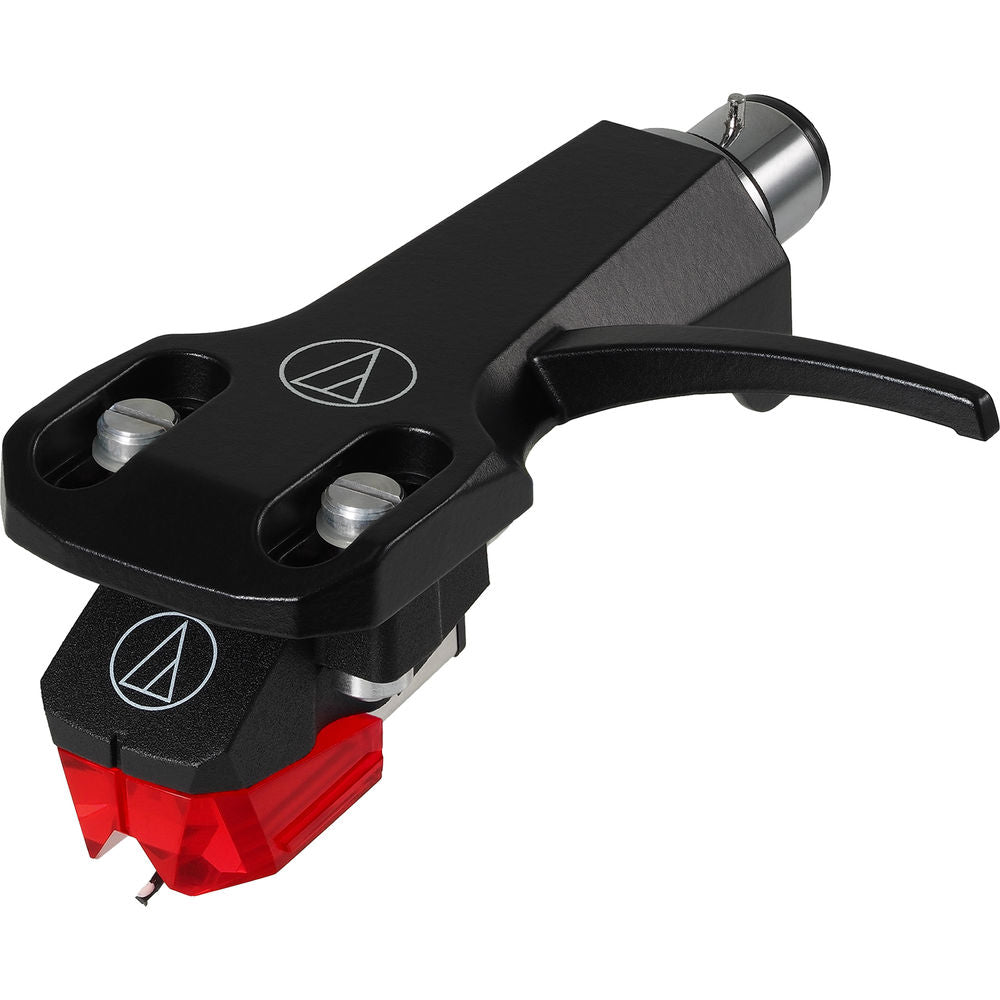

Audio-Technica Consumer AT-XP5/H Headshell and Cartridge Combo Kit

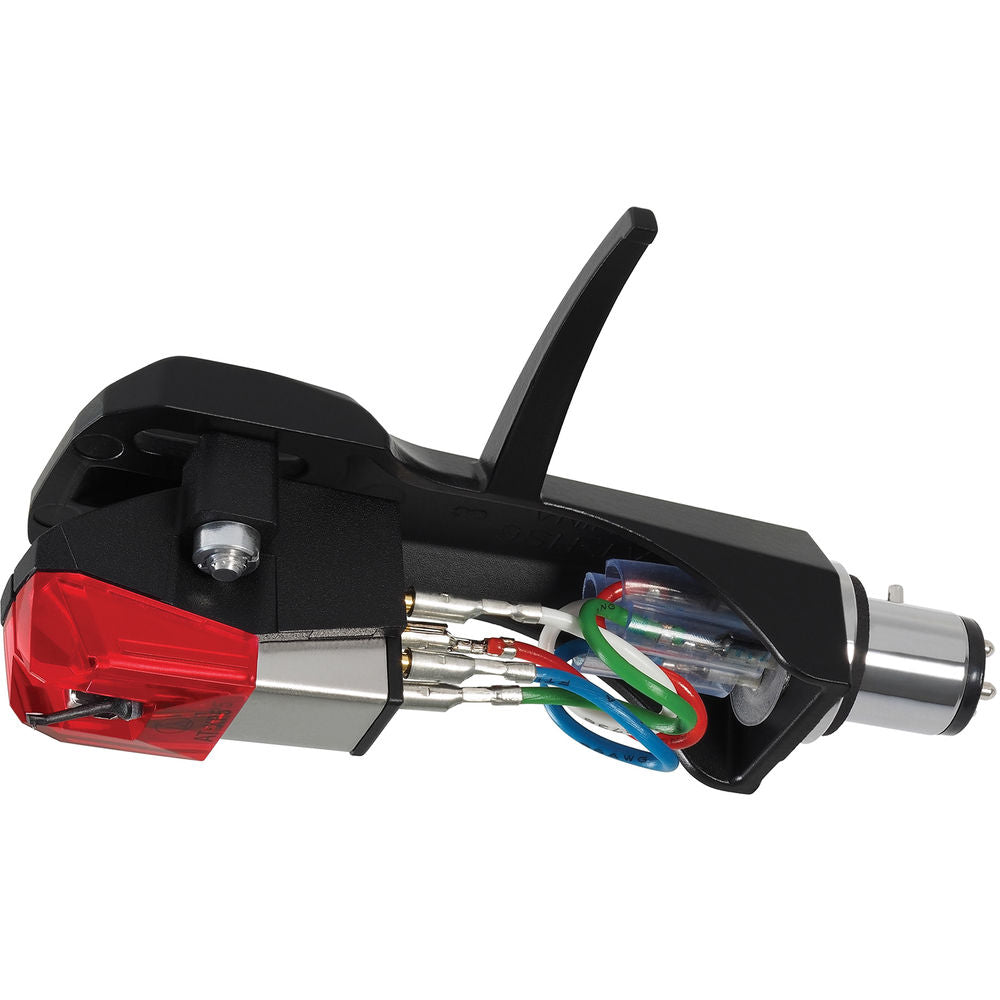

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.

Features:

• 0.3 x 0.7 mil elliptical bonded stylus tip
• Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
• 5.5 mV high-level output
• Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
• Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Design offers maximum visibility of the stylus tip
• Great tracking and channel separation for high-fidelity sound
• Universal ½"-mount headshell for 4-pin turntable cartridges

Specifications:

Frequency Response: 20-18,000 Hz

Channel Separation: 20 (dB at 1 kHz)

Vertical Tracking Angle: 20°

Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 6.7 k ohms (1 kHz)

DC Resistance: 990 ohms

Coil Inductance: 1.0 H (1 kHz)

Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 2.0 dB (1 kHz)

Stylus Shape: 0.3 x 0.7 mil elliptical

Cantilever: Carbon fiber-reinforced ABS

Static Compliance: 20 x 10 – 6 cm / dyne

Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)

Mounting: Half-inch

Weight:

• Cartridge: 6.2g (0.22oz)
• Cartridge and headshell 15.6 g (0.55 oz)

Dimensions

• Cartridge: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
• Cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D

Accessories Included:

• Two 11 mm installation screws
• two 8 mm installation screws
• two washers
• two nuts
• non-magnetic screwdriver

Model: AT-XP5/H

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: ATN-XP5

Stylus Size: 0.3 x 0.7 mil
