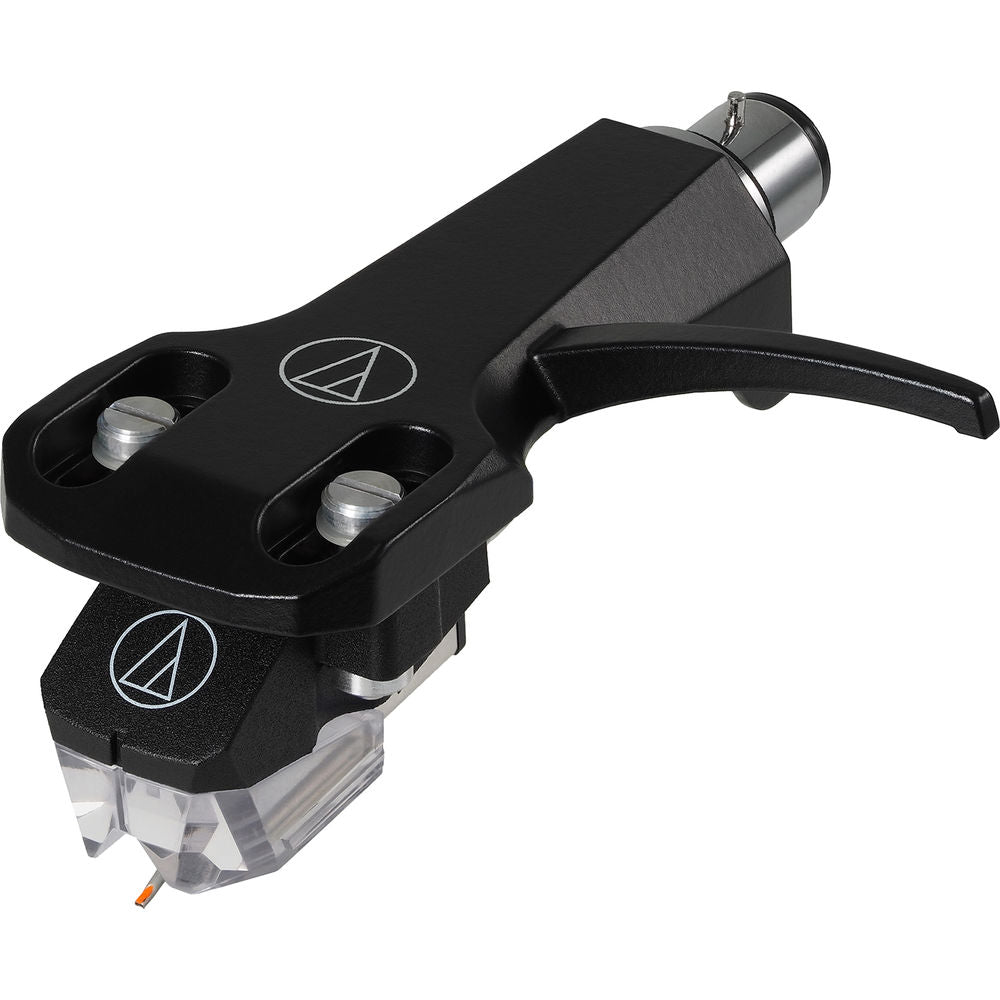

Audio-Technica Consumer AT-XP7/H Headshell and Cartridge Combo Kit

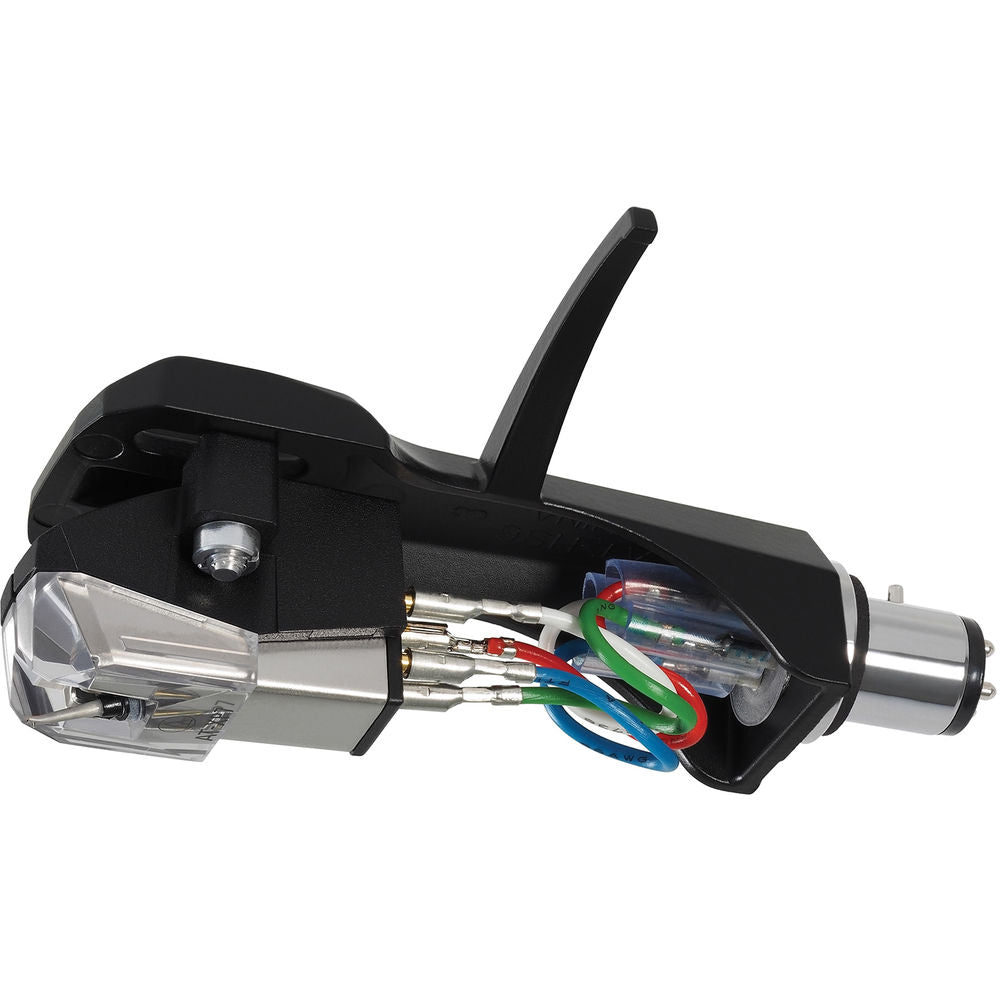

The AT-XP7/H combo kit includes the AT-XP7 DJ cartridge premounted on the AT-HS6BK headshell.

Features:

0.3 x 0.7 mil elliptical bonded stylus tip

Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body

6.0 mV high-output level

Tracking force of 2.0 to 4.0 grams (3.0 grams standard)

Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking

Design offers maximum visibility of the stylus tip

Great tracking and channel separation for high-fidelity sound

Universal ½"-mount headshell for 4-pin turntable cartridges

Specifications:

Frequency Response: 20-20,000 Hz

Channel Separation: 22 (dB at 1 kHz)

Vertical Tracking Angle: 20°

Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 6.7 k ohms (1 kHz)

DC Resistance: 990 ohms

Coil Inductance: 1.0 H (1 kHz)

Output Voltage: 6.0 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 2.0 dB (1 kHz)

Stylus Shape: 0.3 x 0.7 mil elliptical

Cantilever: Aluminum tapered pipe

Static Compliance: 20 x 10 – 6 cm / dyne

Dynamic Compliance: 8.0 x 10 – 6 cm / dyne (100 Hz)

Mounting: Half-inch

Dimensions:

• Cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
• Cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D

Accessories Included:

• Two 11 mm installation screws
• two 8 mm installation screws
• two washers
• two nuts
• non-magnetic screwdriver

Model: AT-XP7/H

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: ATN-XP7

Stylus Size: 0.3 x 0.7 mil

Weight:

• cartridge 6.2 g (0.22 oz)
• cartridge and headshell 15.6 g (0.55 oz)
