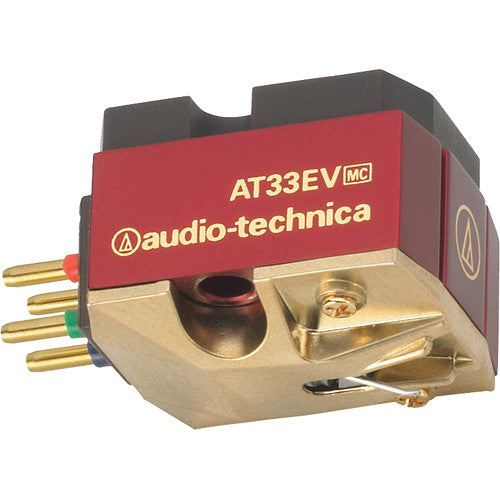

Audio-Technica Consumer AT33EV Dual Moving Coil Cartridge

The new half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission.

Specifications:

Frequency Response: 15-50,000 Hz

Channel Separatio: n30 dB (1 kHz)

Vertical Tracking Angle: 23°

Vertical Tracking Force: 1.8-2.2 grams (2.0 grams standard)

Stylus Construction: Nude Square Shank

Recommended Load Impedance: 100 ohms (with head amplifier connected)

Coil Impedance: 10Ω (1kHz)

DC Resistance: 10Ω

Coil Inductance: 22µH (1kHz)

Output Voltage: 0.3 (mV at 1 kHz, 3.54 cm/sec)

Output Channel Balance: 0.5 dB (1 kHz)

Stylus Shape: 0.3 x 0.7 mil nude elliptical

Cantilever: Duralumin tapered pipe

Static Compliance: 40×10-6cm/dyne

Dynamic Compliance: 10×10-6cm/dyne (100Hz)

Mounting: Half-inch

Dimensions: H16×W16.6×D26.5mm

Accessories Included:

• Non-magnetic screwdriver × 1
• Washer × 2
• Protector × 1
• Cartridge installation
  • 13 mm screws × 2
  • 19 mm screws × 2
  • Nut × 2
• Brush × 1
• PCOCC lead set × 1

Body Material: Aluminium/Synthetic Resin

Mounting Feature: Half-inch mount

Stylus Curvature Radius: 0.3 x 0.7 mil

Terminal Pins: Brass

Type: Dual Moving Coil

Weight: 6.9g
