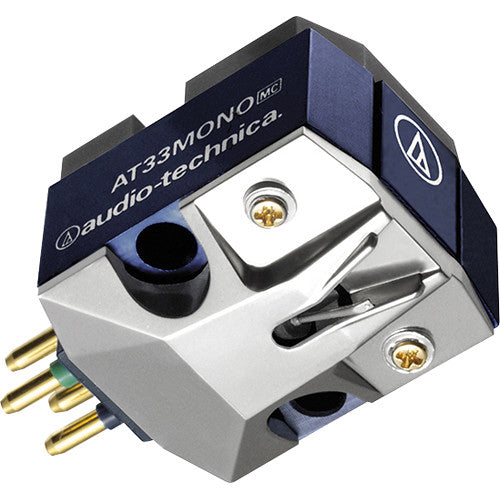

Audio-Technica Consumer AT33MONO Moving Coil Cartridge

The AT33MONO is designed specifically for use with mono vinyl records.* Due to the horizontal configuration of its PCOCC (Pure Copper by Ohno Continuous Casting) voice coils, the AT33MONO cartridge only generates electrical signal with horizontal movement, yet it also has appropriate compliance in the vertical direction, making it safe for use with stereo records.

Features:

• Dual moving coil cartridge designed specifically for use with mono vinyl records.*
• 0.65 mil conical stylus is mounted on a hard duralumin cantilever
• Strong, rigid body construction
• Hanenite anti-vibration, high-damping rubber in the housing interior and cantilever fulcrum support eliminates unnecessary vibrations
• PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
• High-quality brass fastening screw
• Compatible with stereo playback systems

* This cartridge with 0.6 mil conical stylus is not compatible with SP (standard play) shellac records. It is designed to play microgroove 33-1/3 and 45 RPM vinyl records.

Specifications:

Frequency Response: 20 - 20,000 Hz

Channel Seperation: 30dB (1kHz)

Vertical Tracking Angle: 23°

Vertical Tracking Force: 2.3 - 2.7 g (2.5 g standard)

Recomended Load Impedance: More than 100 ohms (when head amplifier is connected)

Coil Impedance: 10 ohms (1kHz)

DC Resistance: 10 ohms

Coil Inductance: 28 µH (1 kHz)

Output Voltage: 0.35 mV (at 1 kHz, 5 cm/sec)

Output Channel Balance: 1.0dB (1kHz)

Stylus Shape: 0.65 mil conical

Cantilever: Duralumin pipe

Static Compliance: 20 x 10-6 cm/dyne

Dynamic Compliance: 6 x 10-6 cm/dyne (100Hz)

Mounting: Half-inch

Dimensions: 16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D

Accessories Included:

• Non-magnetic screwdriver
• 2 washers
• 2 nuts
• cartridge installation screws
  • 13 mm × 2
  • 19 mm × 2
• plastic protector
• brush
• PCOCC lead wire set

Body Material: Aluminum/Synthetic Resin

Mounting Feature: Half-inch mount

Stylus Size: Nude square shank

Type: MC-type

Weight: 6.9g (0.24oz)
