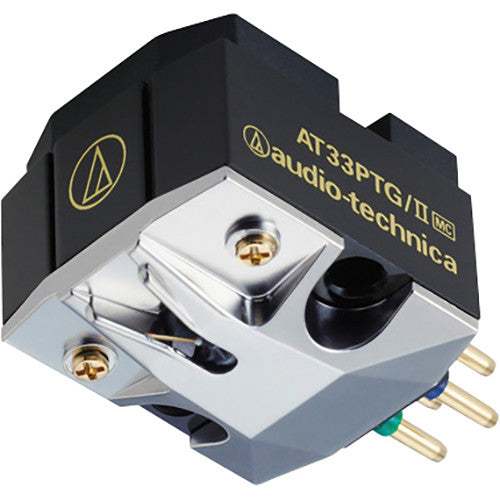

Audio-Technica Consumer AT33PTG/2 Dual Moving Coil Cartridge

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.

The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Specifications:

Frequency Response: 15-50,000 Hz

Channel Separation: 30 dB (1 kHz)

Vertical Tracking Angle: 23°

Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)

Recommended Load Impedance: More than 100 ohms (when head amplifier is connected)

Coil Impedance: 10 ohms (1 kHz)

DC Resistance: 10 ohms

Coil Inductance: 22 µH (1 kHz)

Output Voltage: 0.3 mV (at 1 kHz, 5 cm/sec)

Output Channel Balance: 0.5 dB (1 kHz)

Stylus Shape: Microlinear

Cantilever: Gold-plated nude tapered boron

Static Compliance: 40 x 10-6 cm/dyne

Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)

Mounting: Half-inch

Dimensions: 16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D

Accessories Included:

• Non-magnetic screwdriver
• 2 washers
• 2 nuts
• cartridge installation screws
  • 13 mm × 2
  • 19 mm × 2
• plastic protector
• brush
• PCOCC lead wire set

Mounting Feature: Half-inch mount

Stylus Curvature Radius: 2.2 x 0.12 mil

Stylus Size: Nude square shank

Weight: 6.9 g (0.24 oz)
