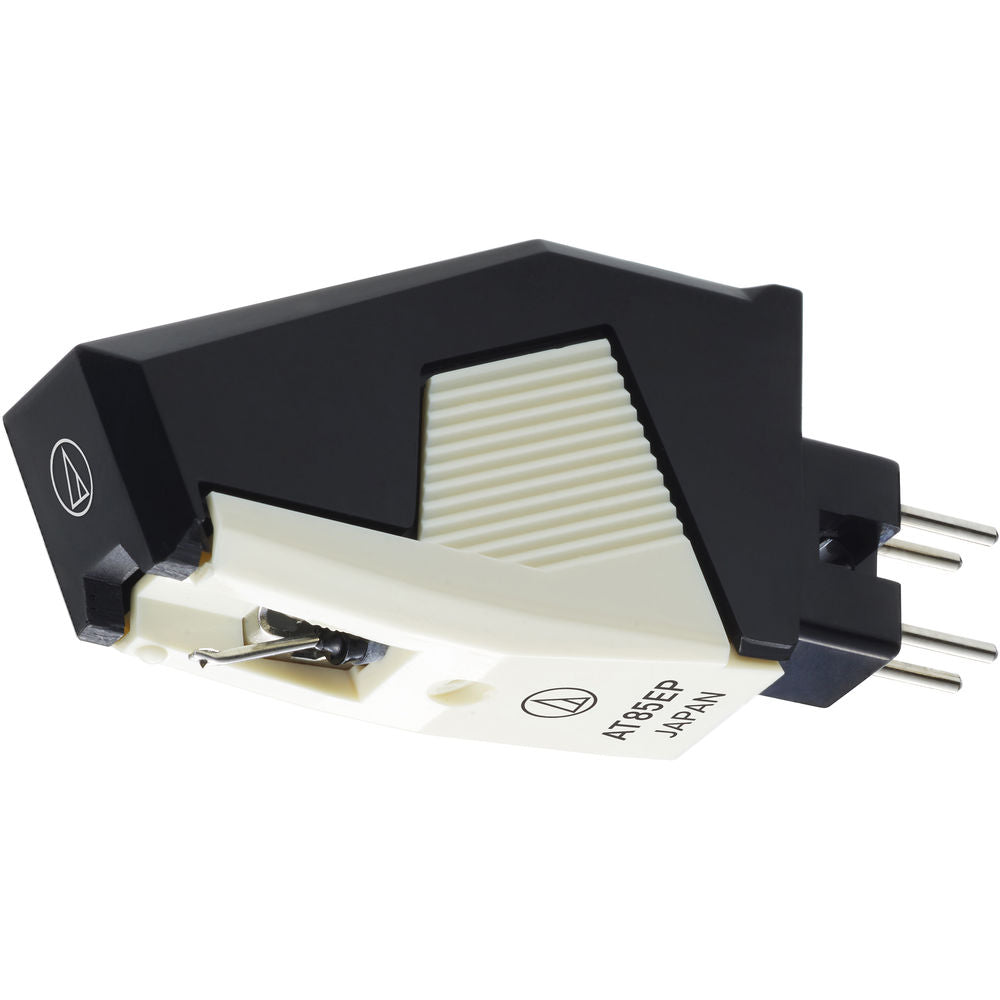

Overview of Audio-Technica Consumer AT85EP Elliptical Phonograph Cartridge for P-Mount Turntables
This 0.3 x 0.7 mil elliptical cartridge fits P-mount turntables. It features precision engineering and many other features found in the more expensive Audio-Technica cartridges.
Specifications:
Frequency Response: 20-20,000 Hz
Channel Separation: 20 (dB at 1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.0-1.5 g (1.25 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Coil Impedance: 2.8 k ohms (1 kHz)
DC Resistance: 410 ohms
Coil Inductance: 400 mH (1 kHz)
Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 2.0 dB (1 kHz)

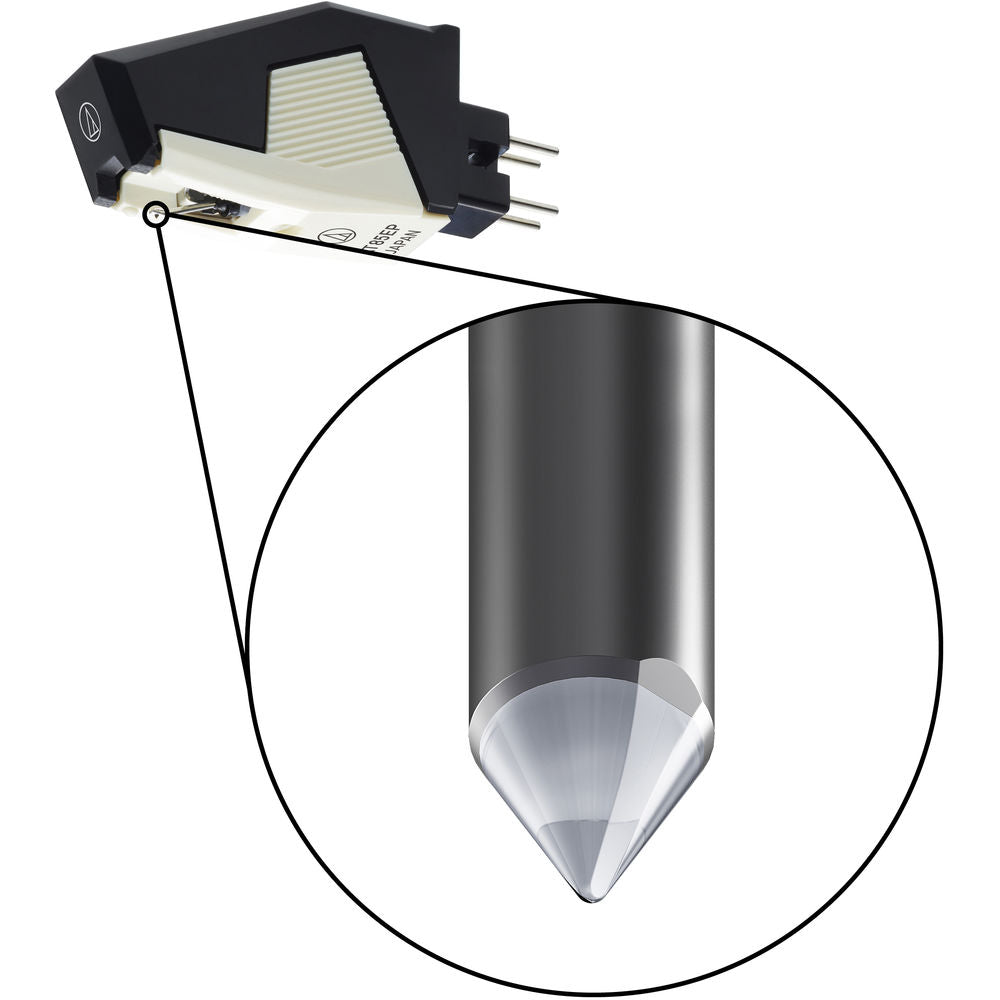

Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Aluminum pipe
Dimensions: 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
Mounting Feature: P-mount
Recommended Load Capacitance: 100 to 200 pF
Replacement Stylus: ATN85EP
Stylus Size: 0.3 x 0.7 mil
Type: Dual Magnet
Weight: 6.0 g (0.21 oz)
Music City Canada is an authorized reseller for Audio-Technica products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
