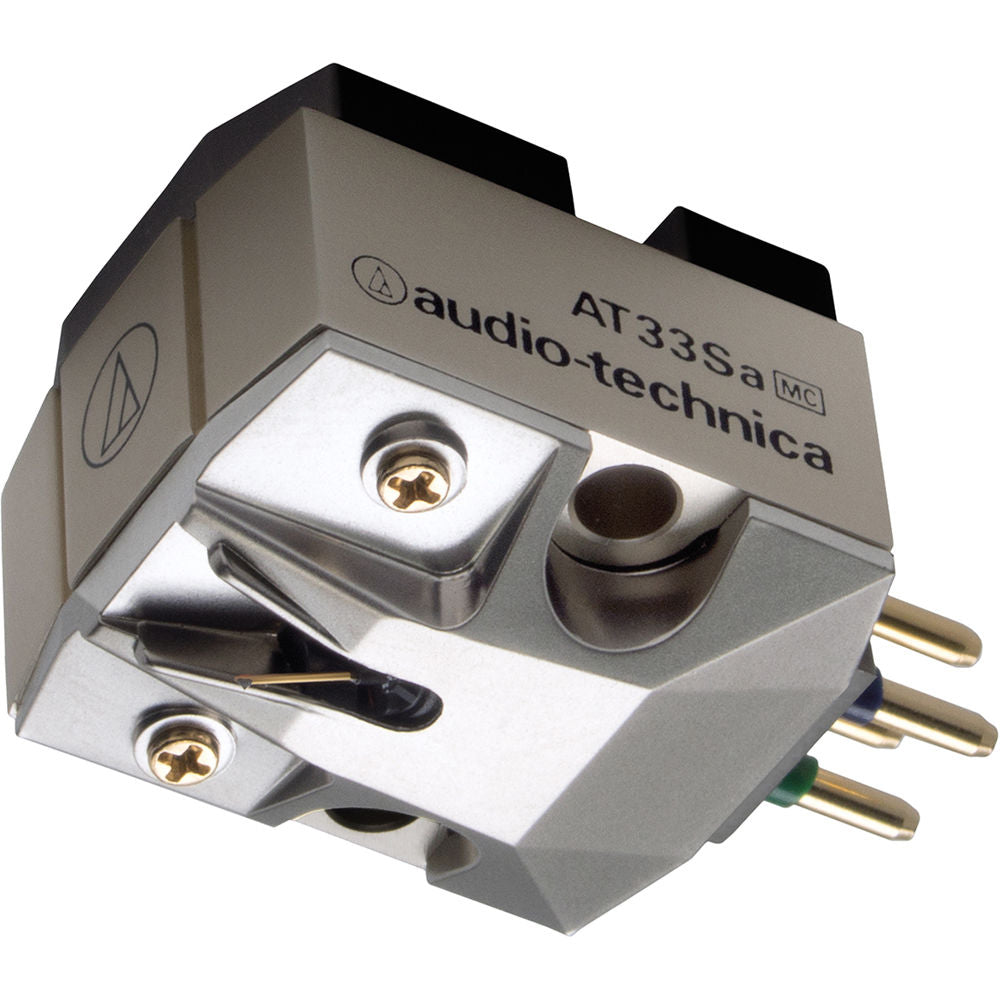

Audio-Technica Consumer Dual Moving Coil Cartridge with Shibata Stylus

The AT33Sa is the first Audio-Technica moving coil cartridge to feature a Shibata line-contact stylus, known for its superior high-range performance and strong mid and bass sound. The stylus is mounted on a tapered boron cantilever with a double damper for reduced weight and better audio quality. The cartridge’s dual moving coils provide excellent channel separation and are affixed within a strong but lightweight VC mold to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Specifications:

Frequency Response: 15 - 50,000Hz

Channel Separation: 30dB (1kHz)

Vertical Tracking Angle: 23°

Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)

Stylus Construction: Nude square shank

Recommended Load Impedance: Min 100Ω

Coil Impedance: 10Ω (1kHz)

DC Resistance: 10Ω

Coil Inductance: 22 µm (1kHz)

Output Voltage: 0.4mV (1kHz and 5cm/sec.)

Output Channel Balance: 0.5dB (1kHz)

Stylus Shape: Shibata

Cantilever: Nude tapered boron

Static Compliance: 40×10-6cm/dyne

Dynamic Compliance: 10×10-6cm/dyne (100Hz)

Mounting: 1/2” centers

Dimensions: H16×W16.6×D26.5mm

Accessories Included:

• 1 non magnetic screw driver
• 1 brush
• 2 washers
• 2 Nuts
• 2 x 19 mm mounting screws
• 1 plastic protector
• 1 set of PCOCC Lead Wires (AT6101)

Body Material: Aluminium/Synthetic Resin

Stylus Curvature Radius: Shibata

Type: Dual Moving Coil

Weight: 6.9g
