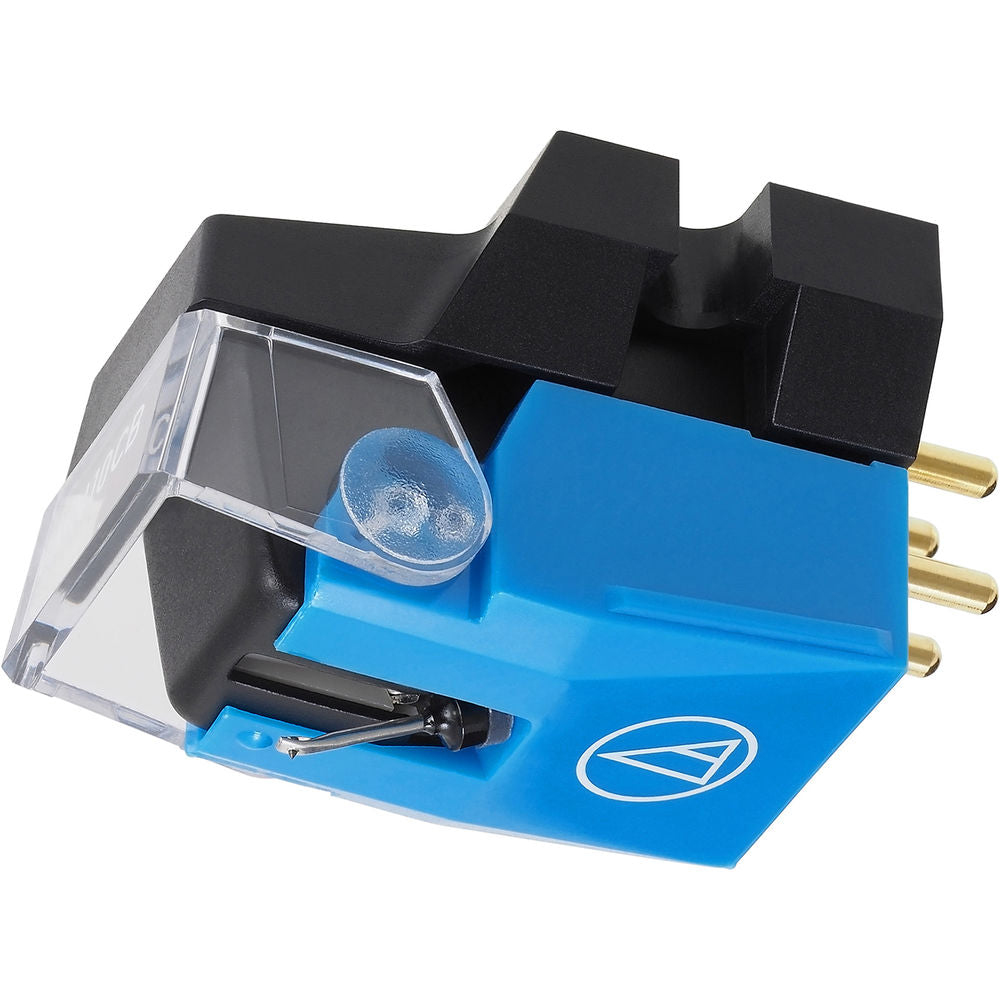

Audio-Technica Consumer VM610MONO Dual Moving Magnet Conical Stylus Cartridge

With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. Includes mounting hardware.

Specifications:

Frequency Response: 20-20,000 Hz

Vertical Tracking Angle: 23°

Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 1,400 ohms (1 kHz)

DC Resistance: 400 ohms

Coil Inductance: 230 mH (1 kHz)

Output Voltage: 3.0 mV (at 1 kHz, 5 cm/sec)

Stylus Shape: 0.6 mil conical

Cantilever: Aluminum pipe

Static Compliance: 35 x 10-6 cm/dyne

Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)

Mounting: Half-inch

Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

Accessories Included: Six cartridge installations screws (5mm x 2, 8mm x 2 and 10mm x 2), two washers, two round nuts

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100-200 pF

Replacement Stylus: VMN10CB

Stylus Size: 0.6 mil

Type: VM Type

Weight: 6.4 g (0.2 oz)
