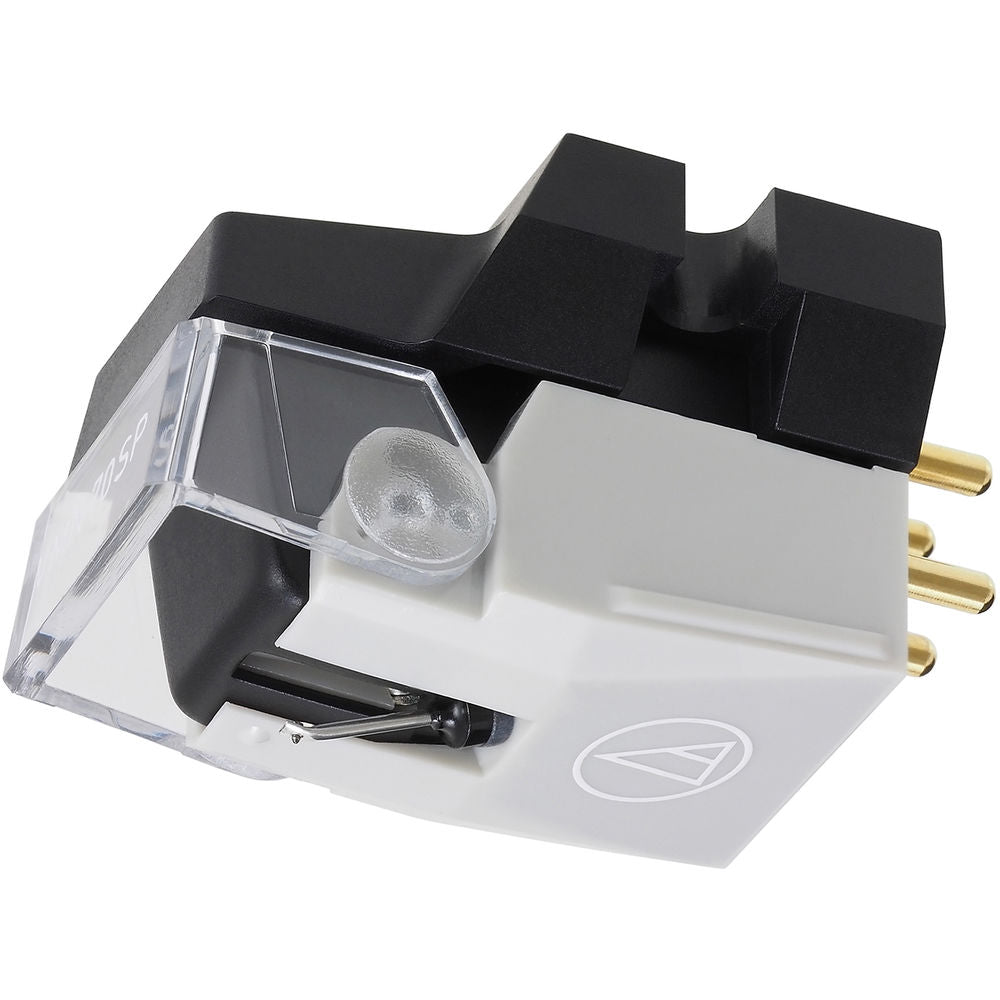

Audio-Technica Consumer VM670SP Dual Moving Magnet Conical Stylus Cartridge

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.

Specifications:

Frequency Response: 20-20,000 Hz

Vertical Tracking Angle: 23°

Vertical Tracking Force: 4.5-5.5 g (5.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 1,400 ohms (1 kHz)

DC Resistance: 400 ohms

Coil Inductance: 230 mH (1 kHz)

Output Voltage: 3.0 mV (at 1 kHz, 5 cm/sec)

Stylus Shape: 3.0 mil conical

Cantilever: Aluminum pipe

Static Compliance: 15 x 10-6 cm/dyne

Dynamic Compliance: 2 x 10-6 cm/dyne (100 Hz)

Mounting: Half-inch

Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

Accessories Included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100-200 pF

Replacement Stylus: VMN70SP

Stylus Size: 3.0 mil

Type: VM Type

Weight: 6.4 g (0.2 oz)
