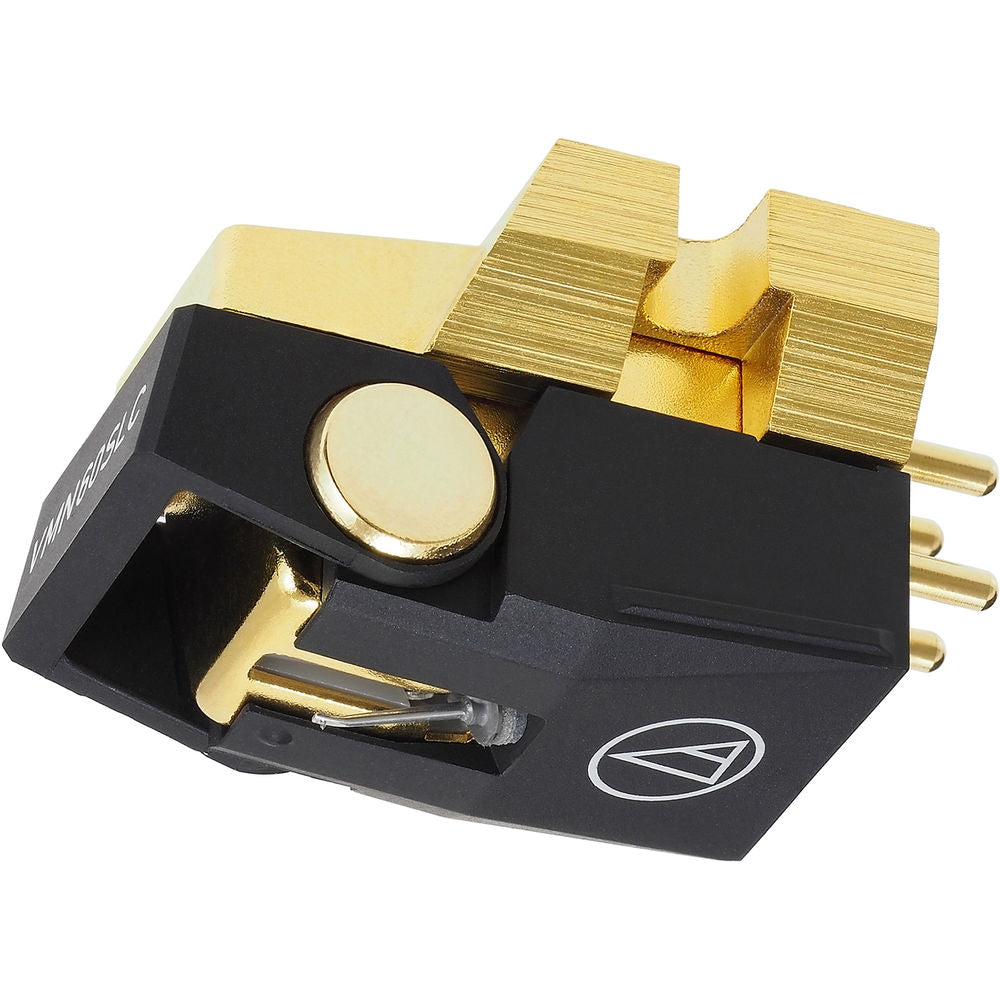

Audio-Technica Consumer VM760SLC Dual Moving Magnet Special Line Contact Stylus Cartridge

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear. Includes mounting hardware.

Features:

VM dual magnet cartridge with special line contact stylus

Aluminum tapered cantilever

Paratoroidal coils improve generating efficiency

Center shield plate between the left and right channels reduces crosstalk

Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield

Specifications:

Frequency Response: 20-30,000 Hz

Channel Separation: 30 dB (1 kHz)

Vertical Tracking Angle: 23°

Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)

Stylus Construction: Nude rectangular shank

Recommended Load Impedance: 47,000 ohms

Coil Impedanc: e2,700 ohms (1 kHz)

DC Resistance: 800 ohms

Coil Inductance: 460 mH (1 kHz)

Output Voltage: 4.0 mV (at 1 kHz, 5 cm/sec)

Output Channel Balance: 1.0 dB (1 kHz)

Stylus Shape: 1.5 x 0.28 mil special line contact

Cantilever: Aluminum tapered pipe

Static Compliance: 40 x 10-6 cm/dyne

Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)

Mounting: Half-inch

Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

Accessories Included:

• Four cartridge installation
  • 5 mm screws x 2
  • 10 mm screws x 2
  • two washers
  • two hexagon nuts
  • non-magnetic screwdriver
• brush
• lead wire set

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100-200 pF

Replacement Stylus: VMN60SLC

Stylus Size: 0.28 x 1.5 mil

Type: VM Type

Weight: 8.0 g (0.3 oz)
