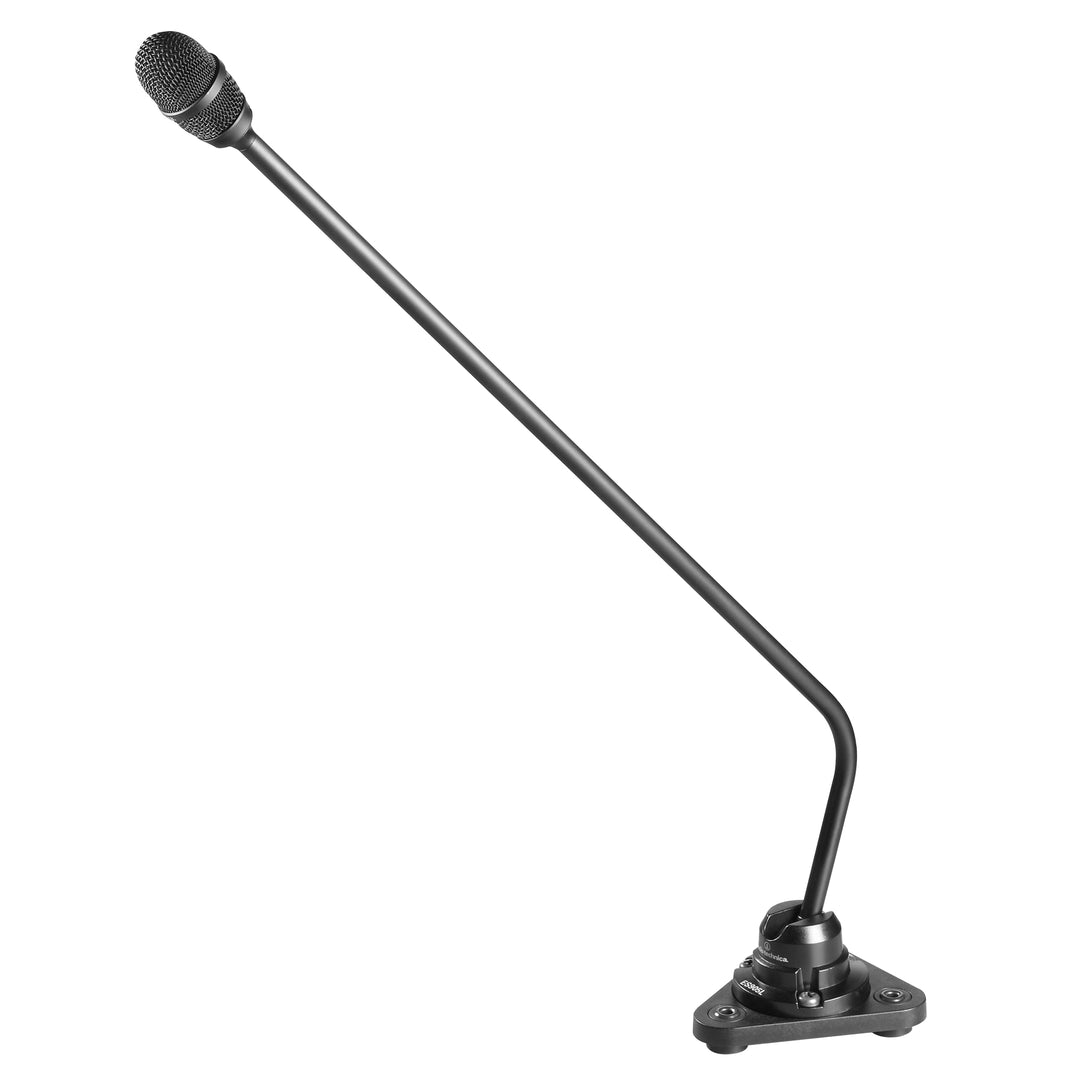

Audio-Technica ES905CL Cardioid Condenser Rigid-Pipe Microphone

The ES905CL is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications. Its rigid-pipe design with ball-in-socket base permits flexible positioning, while its durable metal base mounts to a table, desk or podium with included hardware. The attached wire mesh windscreen with internal pop protection effectively reduces noise from P-pops, wind, and ventilation air currents. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. The ES905CL also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone’s low-profile element provides a uniform cardioid polar pattern with a 120º acceptance angle. Power module included.

Specifications:

Element: Fixed-charge back plate permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 60-20,000 Hz

Low Frequency Roll Off: 80 Hz, 18 dB/octave

Open Circuit Sensitivity: –38 dB (12.5 mV) re 1V at 1 Pa

Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range: 111 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 67 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 11-52V DC, 2 mA typical

Weight (Microphone): 330 g (11.6 oz)

Weight (Power Module): 81 g (2.9 oz)

Cable:

• 2.9 m (9.5') long, (permanently attached to microphone)
• 3.2 mm (0.13") diameter
• 2-conductor
• shielded cable terminated with TA3F-type connector

Dimensions:

• Microphone : 523.4 mm (20.61") long - 24.6 mm (0.97") head diameter
• Power Module : 92.9 mm (3.66") long, 18.9 mm (0.74") diameter

Output Connector (Power Module): Integral 3-pin XLRM-type

Output Connector: Integral 3-pin XLRM-type (Power module)

Audio-Technica Case Style: M37
