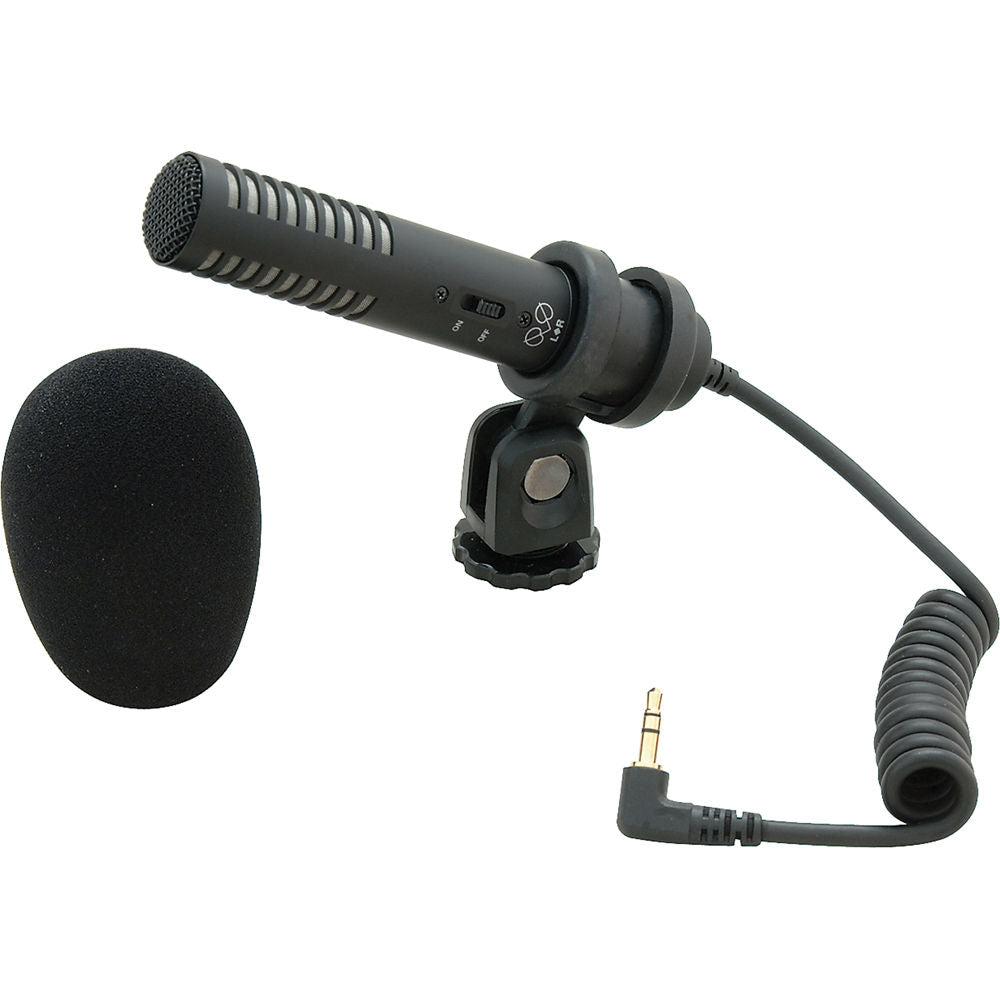

Overview of Audio-Technica Pro-24CM Stereo Microphone for Camera
The PRO 24-CM camcorder microphone is a lightweight, compact stereo condenser ideal for digital recording with high-fidelity stereo sound. Equipped with an accessory shoe and permanently attached coiled cable, the microphone features a pair of cardioid elements in an X-Y configuration to provide the spatial impact and realism of a live sound field. The microphone is designed for either battery operation or battery-free operation when used with camcorders that provide plug-in power at the mic input. Like all Audio-Technica mics, the PRO 24-CM is rugged; it’s built to endure the rigors of field production.
Specifications:
Element: Fixed-charge back plate permanently polarized condenser
Polar Pattern: X/Y Stereo
Frequency Response: 100-17,000 Hz
Open Circuit Sensitivity: -50 dB (3.1 mV) re 1V at 1 Pa
Maximum Input Sound Level: 119 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 82 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 57 dB, 1 kHz at 1 Pa
Power Requirements: 2-10V DC plug-in power
Battery Type: 1.5V LR44
Battery Current/Life: 0.6 mA / 200 hours typical
Switches: On/off
Weight: 3.9 oz (111 g)
Cable: Permanently attached 152.4 mm - 304.8 mm (6"-12") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
Dimensions: 4.59" (116.5 mm) long, 0.83" (21.0 mm) maximum body diameter
Output Connector: 3.5 mm stereo mini plug on cable
Accessories Included:
- Video-camera shoe mount
- LR44 battery
- windscreen
- soft protective pouch
Audio-Technica Case Style: S10
