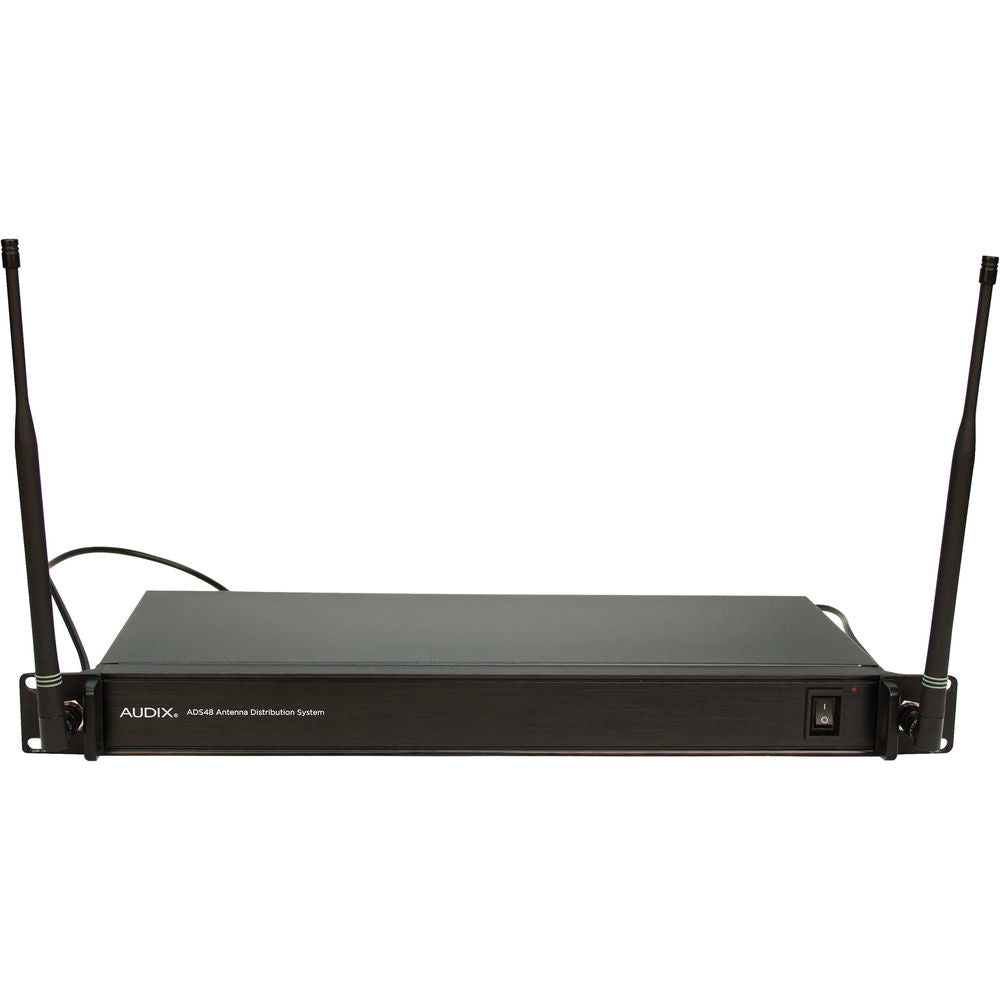

Overview of Audix ADS48 Antenna Distribution System for up to 4x AP42 or AP62 Wireless Systems
The Audix ADS48 is a wide range UHF antenna distribution systhem that combines up to four wireless systems to be able to run off a single pair of antennas and power supply. The ADS48 has an internal switching power supply which eliminates the need for the individual DC power supplies normally needed for each new receiver. RF signals are internally amplified in order to compensate for any loss that may result from splitting the signal.
Accessories:
- 1x ADS48 Antenna Distribution Unit with rack mount
- 2x Antennas
- 1x IEC cable
- 4x Power Jumper Cables to provide power to individual receivers
- 8x BNC-to-BNC Coaxial Cables for pass through connection for up to 4 additional receivers (single or dual)
- 2x Coaxial cables from front mounting antennas
Specifications:
Frequency Response: 470 - 900 MHz
RF Output Level (Gain): 0dB +/- 3dB
Input Impedance: 50 Ohm
Output Impedance: 50 Ohm
Power Voltage: 100 - 240 V AC 50/60Hz
Output DC Voltage: +12V DC, 800mA maximum
Dimensions (WxHxD): 19 x 2 x 10 in / 480 x 45 x 250 mm
Net Weight: 16oz / 2.15kg
