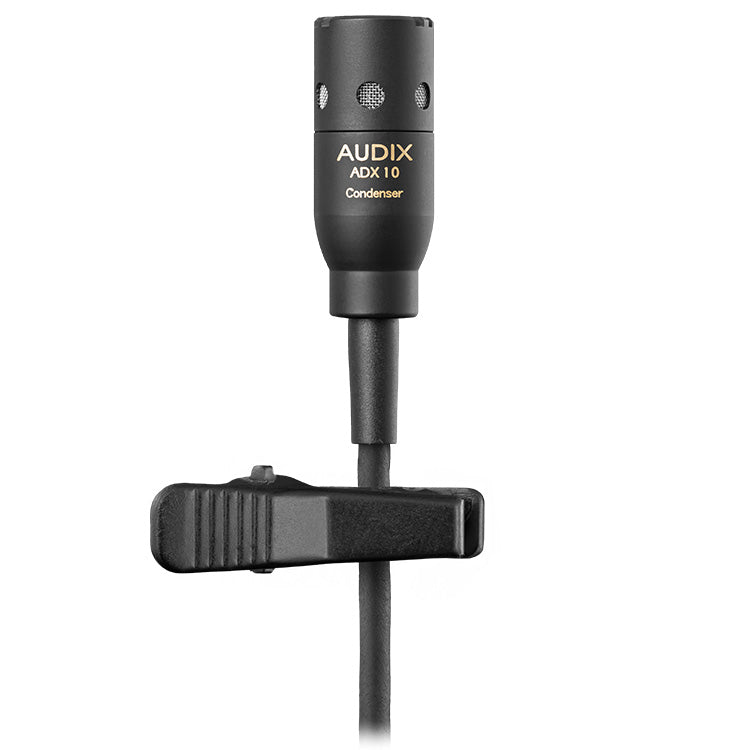

Audix ADX10 Miniature Cardioid Condenser Lavalier Microphone

The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production. Known for its clarity, resistance to feedback, and ease of operation, the ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4”-8”.

The ADX10 is characterized by a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other vocals or instruments on stage. With a smooth and accurate frequency range of 50 Hz - 18 kHz, the ADX10 is lightweight and will provide natural sound with exceptional transient response.

The ADX10, primarily for use with Audix wireless systems, includes a tie-clip and a 3’ attached cable terminating in a mini-XLRf connector. The ADX10 may also be used as a wired mic. Simply order the APS910 or APS911 phantom power adapter for use with a standard mic cable.

Features:

• Small, lightweight, low profile
• Natural, accurate sound reproduction
• Easy to use and set up
• Field replaceable capsule
• Available for wireless and wired applications

Applications:

• Speech
• Flute
• Acoustic instruments and hand drums

Specifications:

Transducer Type: Pre-Polarized Condenser

Frequency Response: 50Hz to 18kHz

Polar Pattern: Cardioid

Output Impedance: 800 ohms

Sensitivity: 5 mV / Pa @ 1k

Equivalent Noise Level: <29 dB (A-weighted)

Signal-to-Noise Ratio: >65 dB

Maximum SPL: ≥120 dB

Power Requirements: 9 to 52 V Phantom Power

Connector: Shielded 3’ terminating to a miniature 3-pin female XLR

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

 Materials / Finish: Machined Brass / Black Finish

Weight: 21 g / 0.74 oz

Length: 25 mm / .98 in
