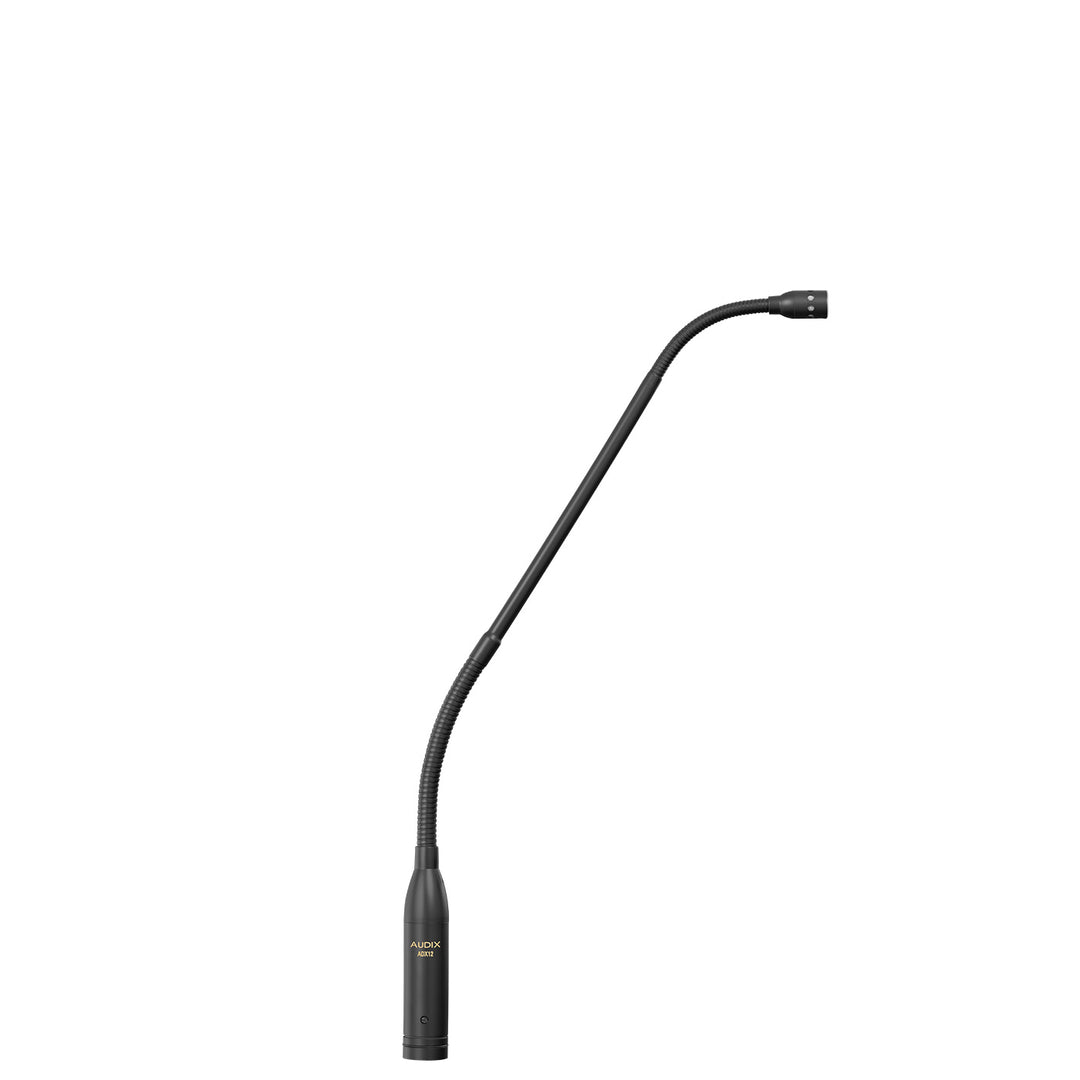

Audix ADX12 Miniature Gooseneck Condenser Microphone 12” - Cardioid

The Audix ADX12 is a professional miniature gooseneck condenser microphone designed for applications such as podiums, presentations, meetings, and teleconferencing. Known for its clarity, excellent sound quality, and ease of operation, the ADX12 will accurately capture and reproduce vocals from a comfortable distance.

The ADX12 is characterized by a uniformly controlled cardioid polar pattern, helping to isolate the speaker from other ambient noise in the room or on the stage. This microphone has a wide frequency range of 40 Hz - 18 kHz, providing natural sound with exceptional transient response.

The ADX12 is equipped with integrated preamp circuitry built into the base of the XLR connector. It can be mounted permanently via the supplied flange mount or with an optional flange shock mount (SMT1218R). The microphone may also be used on a standard mic stand or in conjunction with the Audix ATS10 or ATS1 table stand with a lighted on-off switch (available separately).

Manufactured with very high standards and tight tolerances, the ADX12 features a machined brass body, a field-replaceable capsule, and a variety of optional accessories. The ADX12 operates on phantom power of 18 - 52 Volts and is available in a non-reflective black matte finish.

Features:

• Natural accurate sound
• Interchangeable capsule
• Low profile design
• Dual gooseneck sections allows for precise positioning
• Low noise electronics

Applications:

• Pulpit, podium
• Board meetings, teleconferencing
• Video, recording
• Room security or monitoring

Specifications:

Transducer Type: Pre-Polarized Condenser

Frequency Response: 40Hz to 18kHz

Polar Pattern: Cardioid

Output Impedance: 150 ohms

Sensitivity: 24mV / Pa @ 1k

Equivalent Noise Level: 28dB (A-Weighted)

Signal-to-Noise Ratio: 66dB

Maximum SPL: ≥120 dB

Power Requirements: 18 to 52 V Phantom Power

Connector: 3-pin XLRm

Polarity: Positive Pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connectors

Materials / Finish: Machined Aluminum / Black
Finish

Weight: 113 g / 4 oz

Total Length: 403 mm / 16 in
