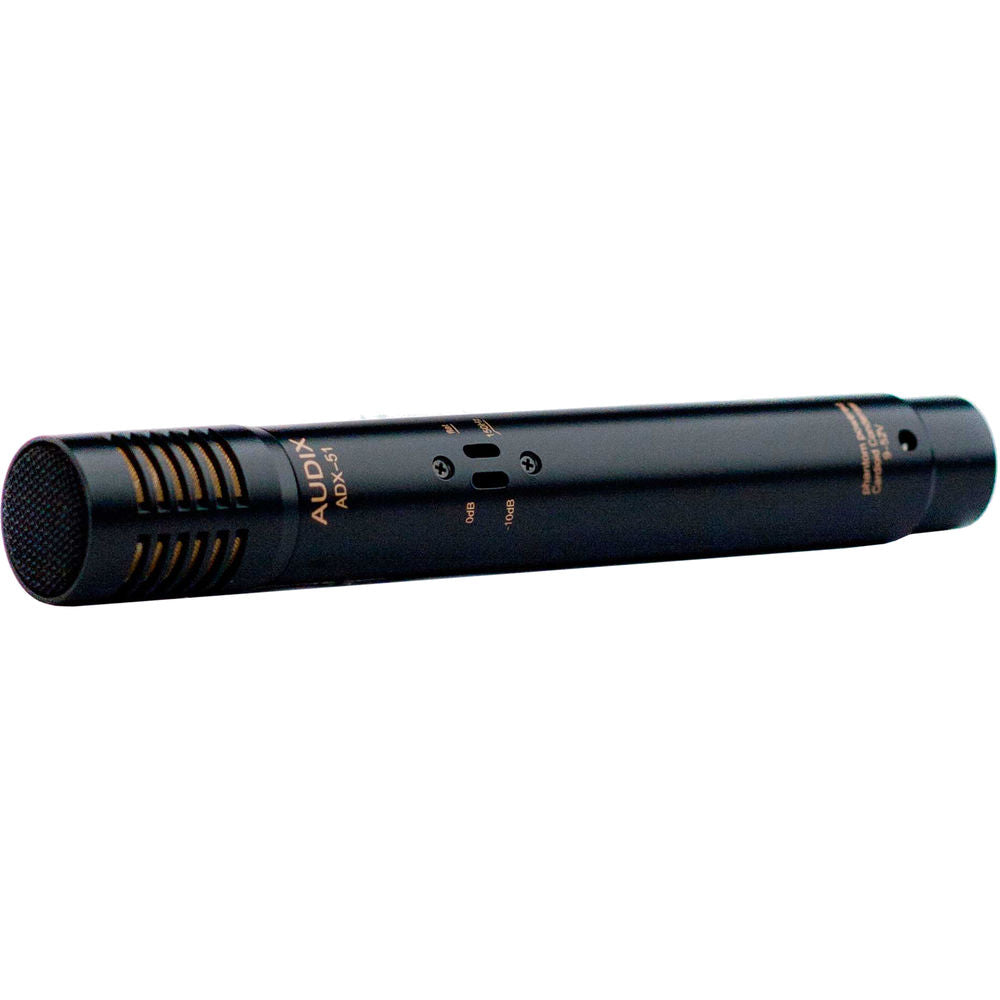

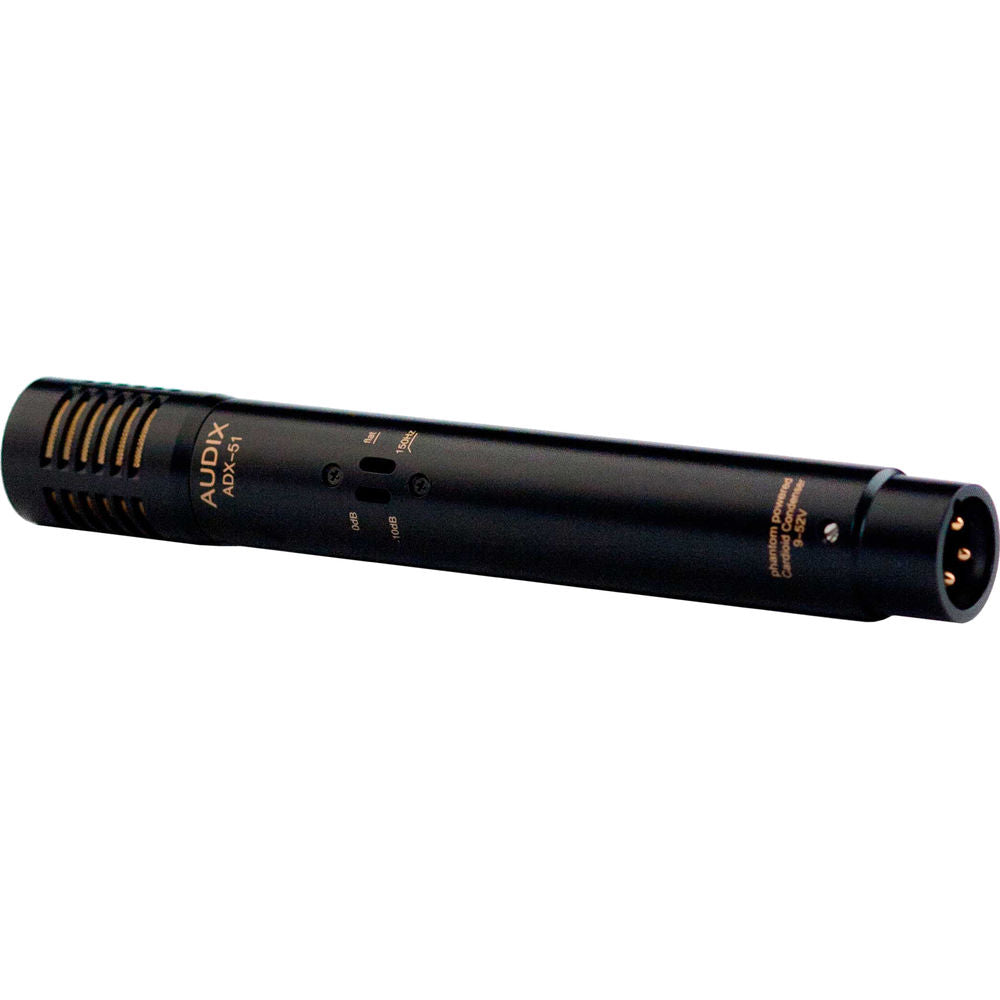

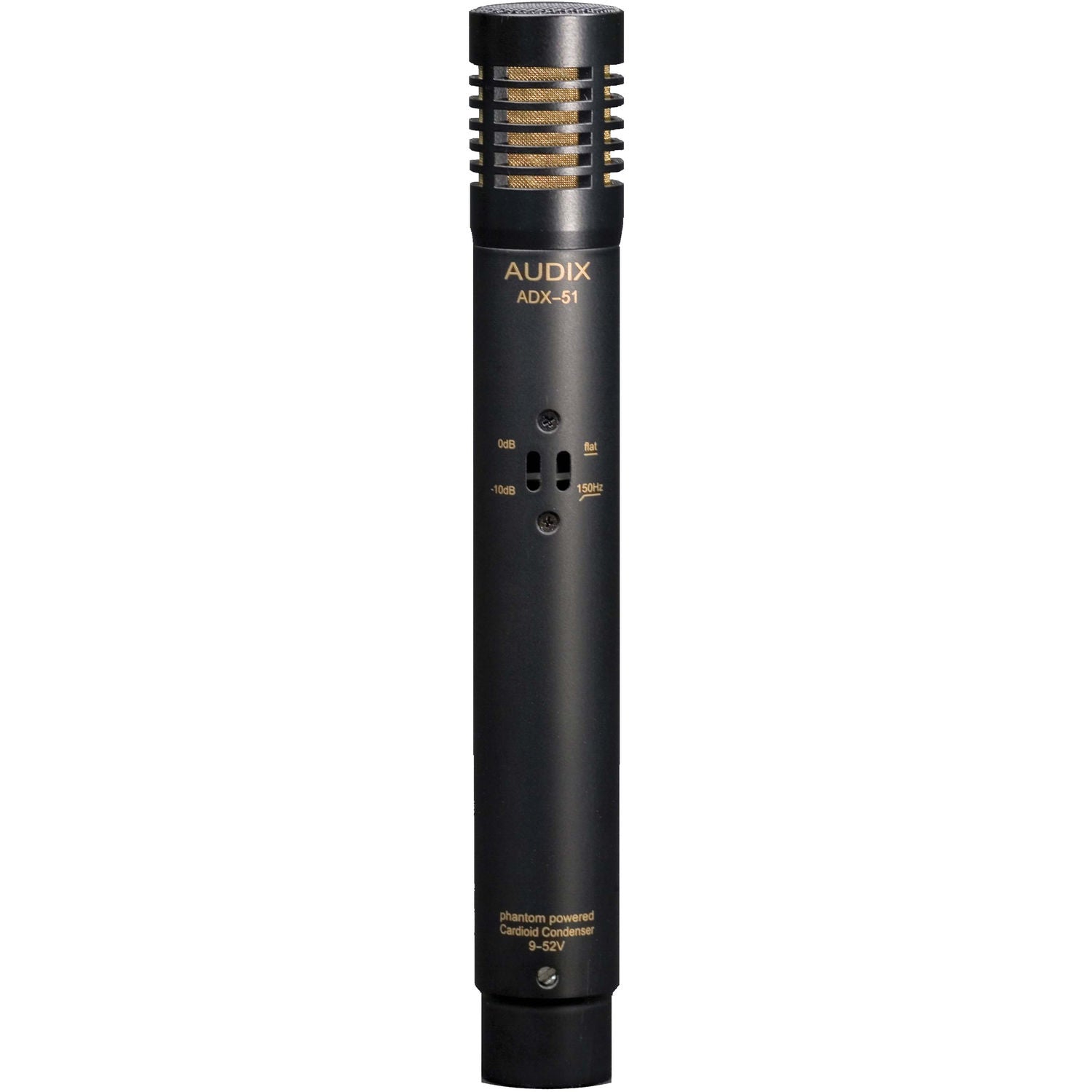

Audix ADX51 Pre-Polarized Condenser Instrument Microphone

 The ADX51 is a professional pre-polarized condenser microphone used for stage, studio and broadcast applications. The ADX51 is known for its clear, accurate response and flexibility to handle close or distance miking for a wide variety of acoustic instruments.

Characterized with a uniformly controlled cardioid polar pattern, the ADX51 is designed to capture the acoustics of the instrument being miked while at the same time isolating it from the rest of the instruments on stage. With a wide frequency range of 40 Hz - 18 kHz, the ADX51 features a 14 mm gold vapor diaphragm and a -10 dB pad and bass roll-off filter at 150 Hz.

The ADX51 is very easy to position, durable, and manufactured to high standards and tight tolerances. The ADX51 has a precision machined brass body, durable black E-coat finish, steel mesh grill, and gold plated XLR connector.

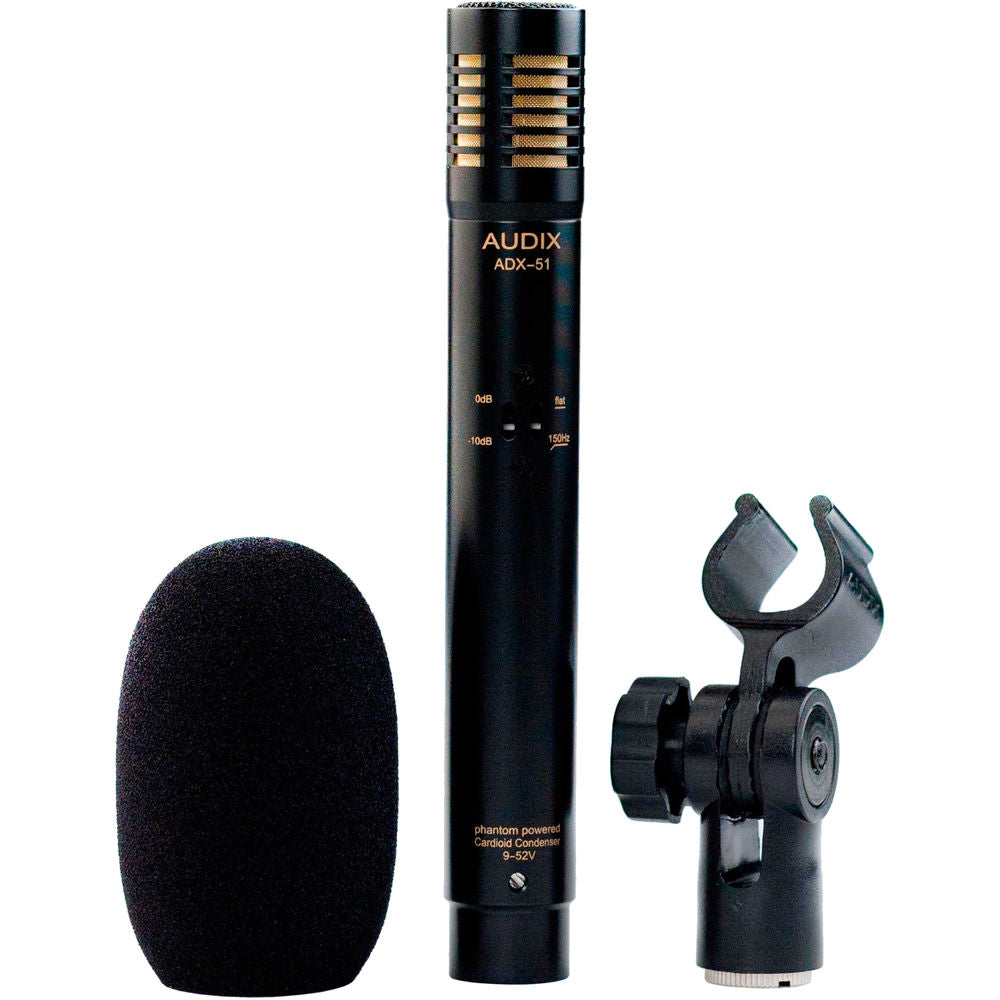

Accessories:

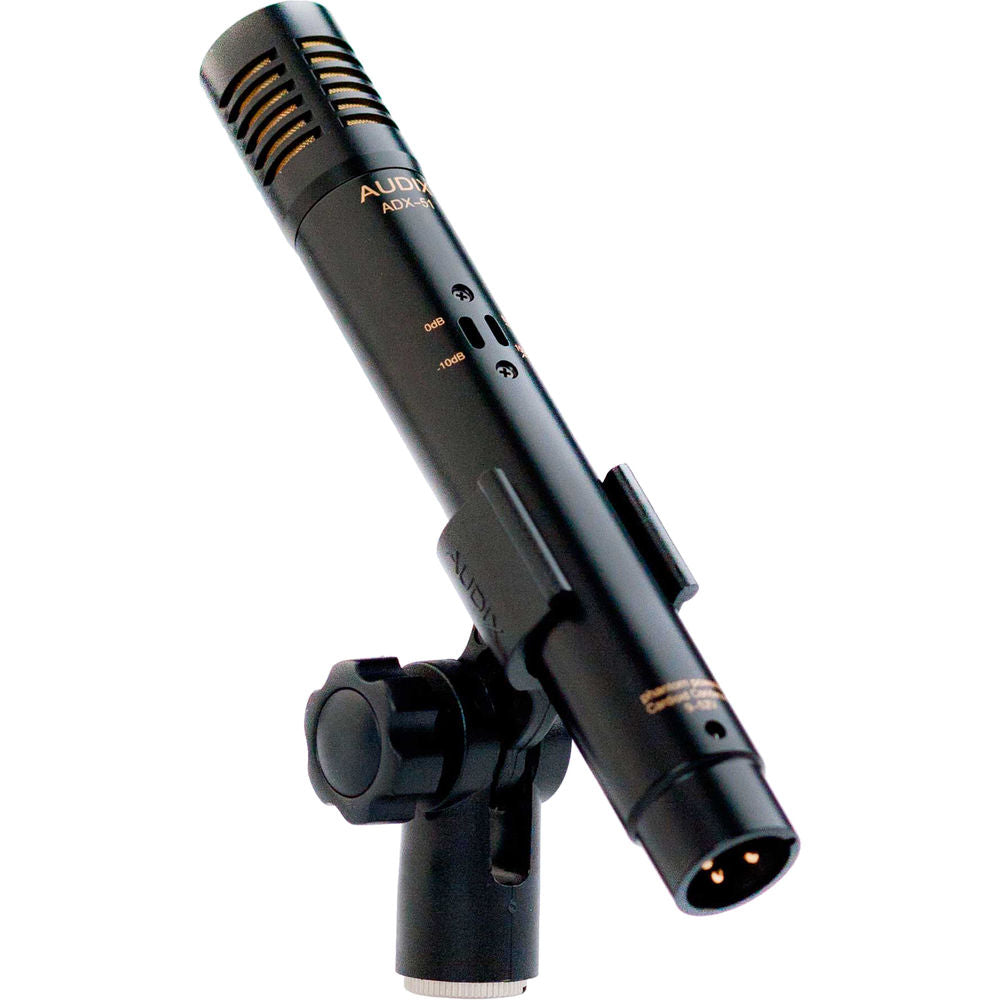

•  DCLIP - Heavy-duty nylon molded snap on clip
• P1 - Carrying pouch
• WS1C - External foam windscreen for reducing wind, sibilance and pop noise

Applications:

• Drum overheads, hi hat,  cymbals
• Acoustic instruments
• Percussion table
• Group vocal, spoken word
• Ambient room miking
• Audience mics for in-ear monitors

Specifications:

Transducer Type: Pre-polarized Condenser

Frequency Response: 40Hz - 18kHz

Polar Pattern: Cardioid

Output Impedance: 100Ohms

Sensitivity: 17 mV / Pa @ 1k

Capsule Technology: Black Electret GV Diaphragm

Off-Axis Rejection: >15 dB

Maximum SPL: ≥132 dB

Power Requirements: 9 to 52 V Phantom Power

Connector: 3-pin XLRm

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: Brass / Black Finish

Length: 160 mm / 6.3 in

Weight: 184 g / 6.5 oz
