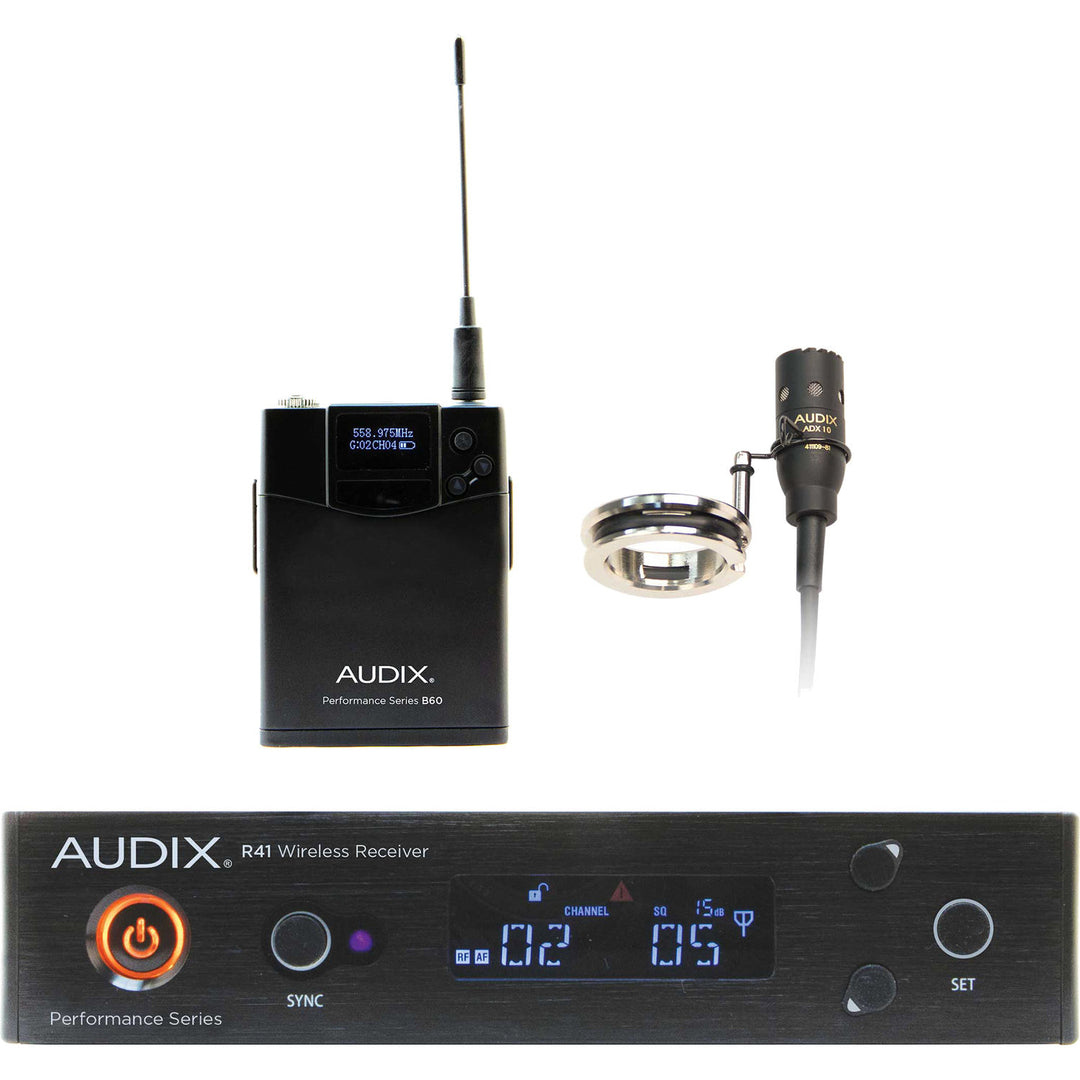

Audix AP41 FLUTE Wireless Microphone System w/ ADX10FLP Flute Mic (A: 522 MHz – 554 MHz)

The Audix AP41 FLUTE Wireless Instrument Microphone System features the ADX10FL miniaturized cardioid condenser for standard-sized flutes.

The ADX10FL reproduces the natural tone and percussive nature of the flute with detail and accuracy. The tight pickup pattern of the mic helps to isolate the flute from the rest of the instruments on stage.

Specifically designed for use with a standard-sized flute, the ADX10FL includes an integrated clip that attaches to the headstock of the flute.

Features:

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies on the receiver for quick, easy, and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam
• 64 MHz Wide spectrum transmitter
• Transmitter can run for up to 14 hours on AA batteries

Specifications:

R41 Receiver

• Frequency Range: 522MHz- 554MHz
• Bandwidth: 32MHz
• Compatible Systems: up to 16 systems
• Switchable Frequencies: 106 pre-coordinated frequencies
• Frequency Response: 45Hz - 18,000Hz
• Compander System: 2:1
• Pilot Tone: 32kHz
• Receiving System: single tuner, antenna diversity
• Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
• THD: ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output
  • Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
  • 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
• Output Connectors: 1/4", XLR
• Audio Level Adjustment: -12 to +9 in 3dB steps
• Range: 300 ft (91 m)
• Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
• Dimensions (WxDxH): 8.07" x 8.11" x 1.73"
• Weight: 1.92 pounds

B60

• RF Power Output: 10 mW, 30 mW
• Frequency Bandwidth: 64 MHz
• Gain Controls: 0dB, -6dB, -12dB, -24dB
• Input Connector: 3 pin mini-XLR
• Batteries Included: 2 AA 1.5 V
• Current Consumption: 110 mA typical
• Battery Life: approx. 14 hours
• Input Impedance
  • Mic: 10kΩ
  • Line: 1MΩ
• Max. SPL: approx. 128 - 140 dB (depending on microphone)
• Dimensions (WxLxD): 2.6" x 3.5" x 0.67"
• Weight: 3 oz (without batteries)
