Audix AP41 GUITAR Instrument Wireless System w/ Cable (B: 554 MHz – 586 MHz)

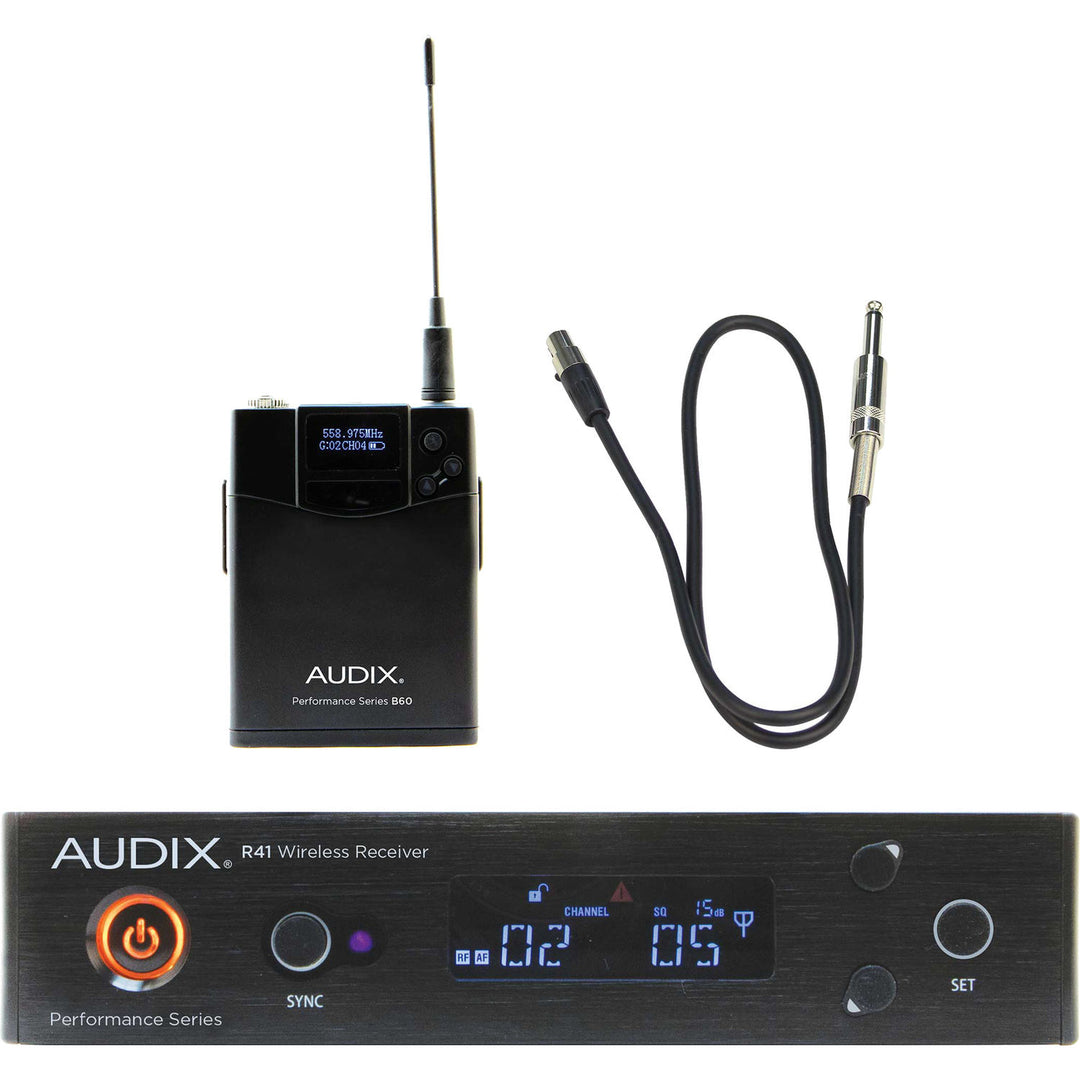

The AP41 Performance Series Guitar Wireless System from Audix includes the R41 1-channel diversity receiver and B60 bodypack transmitter with a 30" guitar cable. The R41 diversity receiver operates on a wide-spectrum frequency range of 554 to 586 MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, this receiver easily links to the B60 bodypack transmitter placed within 300'.

Additionally, the bodypack transmitter can be connected to guitars and instruments using the included 3-pin mini XLR to 1/4" cable. This durable and low-profile aluminum bodypack can be securely clipped onto the guitar strap or clothing. The refined circuitry of the transmitter allows for precise and accurate reproduction of guitar and bass without compromise.

The Audix R41 Kit-B is a Performance Series single-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 554 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R41 Kit-B ships with two antennas, a carrying case, an audio cable, one power supply, and a rackmount kit.

Features:

• Incorporate up to 16 systems to use 16 unique channels simultaneously
• Single-channel receiver supports one wireless microphone
• 32 MHz wide spectrum tuning
• 106 pre-coordinated frequencies
• High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
• One-touch sync via infrared
• One-touch scan eliminates inefficient manual tuning
• Ground-lift switch helps eliminate ground loops or hum
• Metal strain relief for power cable
• Adjustable AF and RF level
• Selectable lock function prevents the transmitter from being accidentally muted or powered off

Specifications:

• Frequency Band: 554 to 586 MHz
• Bandwidth: 32 MHz
• # of Simultaneous Systems: Up to 16
• Switchable Frequencies: 106 pre-coordinated frequencies
• Wireless Range: Up to 300' / 91 m
• Antenna Connector: 2 x BNC (8 VDC, 150 mA)
• Outputs:
  • 1 x XLR 3-pin balanced
  • 1 x 1/4" TS unbalanced
• Audio Output Level:
  • XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
  • 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control: -12 to +9 dB in 3 dB steps
• Frequency Response: 45 Hz to 18 kHz
• Compander: 2:1
• Pilot Tone: 32 kHz
• Receiving System: Single tuner, antenna diversity
• Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Dimensions: 8.1 x 8.1 x 1.7" / 205 x 206 x 44 mm
• Weight: 1.9 lb / 0.9 kg

The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.

The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.

Features:

• 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
• Mini-XLR 3-pin connector for compatibility with a variety of microphones or guitar cables
• Durable tour-worthy metal housing
• High-contrast LCD shows group, channel, frequency, mic/line level, and battery status
• Convenient top-panel soft mute button for quick on/off switching
• Two supplied AA batteries provide up to 14 hours of run time
• Selectable 10/30 mW RF power output
• Four selectable gain settings—0 dB, -6 dB, -12 dB, and -24 dB
• Lock function deactivates the power button, RF output control, and level adjustment

Specifications:

• RF Power Output: 10/30 mW
• Bandwidth: 64 MHz
• Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
• Inputs: 1 x mini-XLR 3-pin
• Input Impedance:
  • Mic: 10 kOhms
  • Line: 1 MOhm
• Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
• Battery Life: Approximately 14 hours
• Current Consumption: 110 mA typical
• Power Requirement: 2 x AA 1.5 V batteries
• Dimensions: 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm
• Weight: 3 oz / 85 g without batteries
