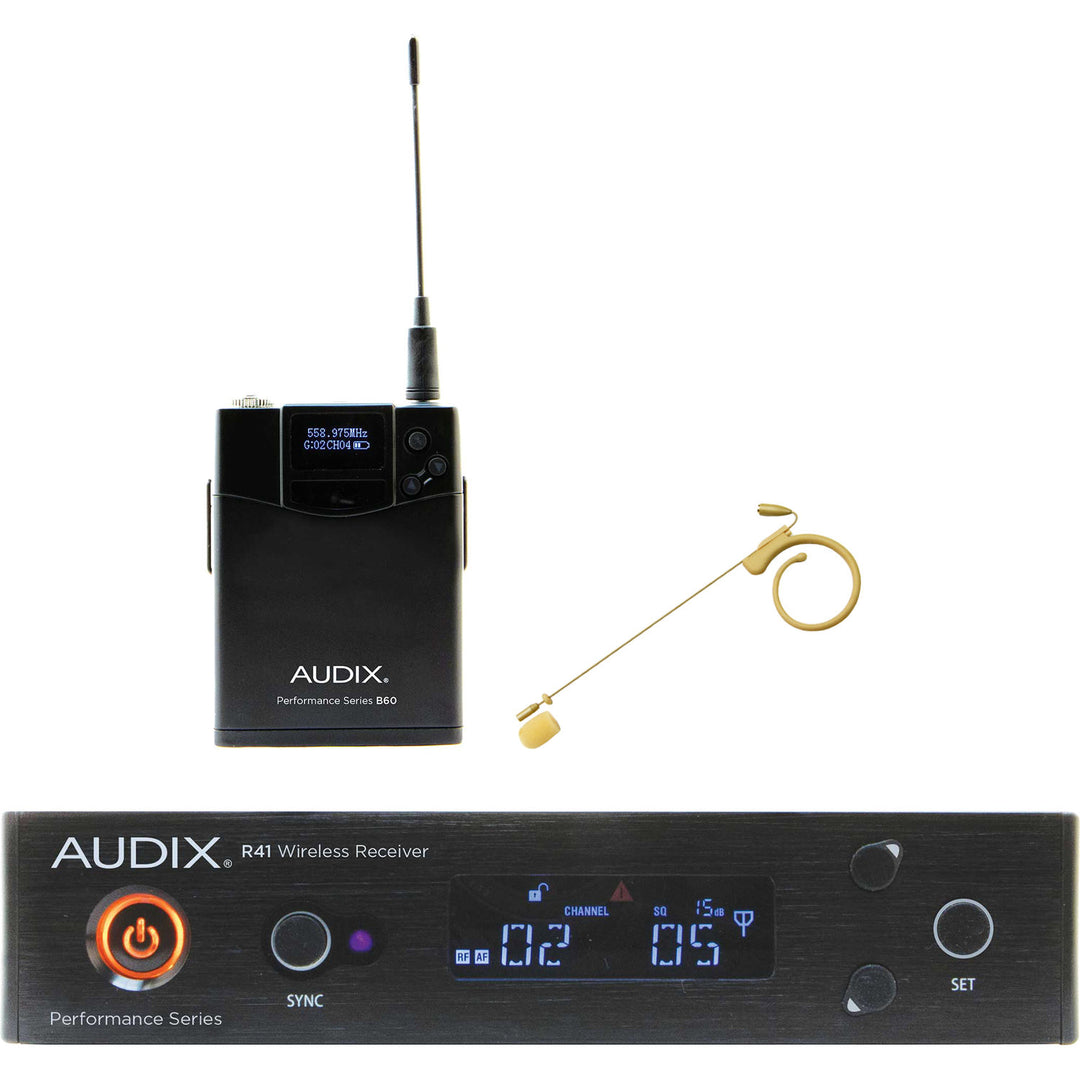

Audix AP41 HT7 Headworn Earset Wireless Microphone System - Beige (B: 554 MHz – 586 MHz)

Experience professional wireless performance with the Audix AP41HT7BGB Bodypack System. This system includes the HT7, a miniaturized single-ear condenser microphone in beige, operating within the 554 to 586 MHz frequency band. The HT7 stands out with its remarkably small 3mm omnidirectional element, delivering clear and natural sound for stage, presentation, and broadcast. Designed for comfort and versatility, the HT7 features an adjustable boom arm and an earpiece that can be easily worn on either the left or right ear.

Includes:

• 1x R41 32 MHz Diversity Receiver
• 1x B60 Bodypack Transmitter
• 1x HT7 Headworn Microphone
• 2x Antennas
• 1x Audio Cable
• 2x AA Batteries
• 1x Carrying Case
• 1x Power Supply
• 1x User Guide
• 1x Rackmount Hardware

Specifications:

R41 Diversity Receiver:

• Frequency Band: 554 to 586 MHz
• Bandwidth: 32 MHz
• #Of Simultaneous Systems: Up to 16
• Switchable Frequencies: 106 pre-coordinated frequencies
• Wireless Range: Up to 300' / 91 m
• Antenna Connector: 2 x BNC (8 VDC, 150 mA)
• Outputs:
  • 1 x XLR 3-pin balanced
  • 1 x 1/4" TS unbalanced
• Audio Output Level:
  • XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
  • 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control: -12 to +9 dB in 3 dB steps
• Frequency Response: 45 Hz to 18 kHz

B60 Bodypack Transmitter:

• RF Power Output: 10/30 mW
• Bandwidth: 64 MHz
• Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
• Inputs: 1 x mini-XLR 3-pin
• Input Impedance:
  • Mic: 10 kOhms
  • Line: 1 MOhm
• Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
• Battery Life: Approximately 14 hours
• Current Consumption: 110 mA typical

HT7 Microphone:

• Height: 1.6 in
• Weight: 0.25 oz
• Color: Beige
• Body Material: Alloy steel
