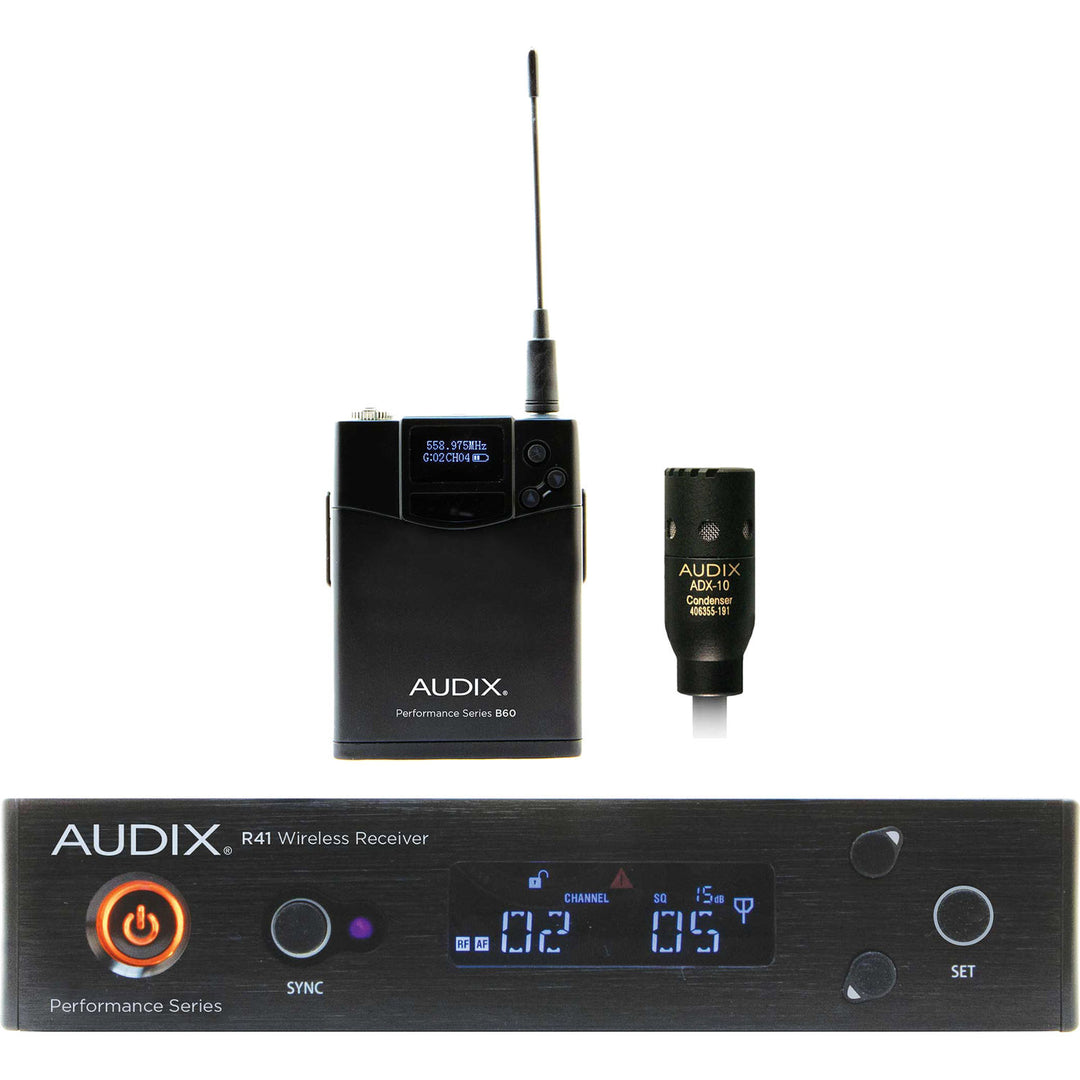

Audix AP41 L10 Lavalier Wireless Microphone System (B: 554 MHz – 586 MHz)

A value packed bodypack diversity wireless system featuring the ADX10 cardioid miniature condenser microphone.

The ADX10 is a lightweight, low profile mic designed for lavalier applications such as speech, presentation and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with exceptional response that is resistant to feedback and easy to use.

Frequency Bands (B): 554 MHz - 586 MHz

Features:

R41 Diversity Receiver

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam

B60 L10 Bodypack Transmitter

• 64 MHz Wide spectrum transmitter with ADX10 lavalier
• Durable metal housing
• 14 Hour run time - AA batteries

Included:

• 1 x R41 32 MHz Diversity Receiver
• 1 x B60 Bodypack Transmitter with ADX10 Lavalier Microphone
• 2 x Antennas
• 1 x Audio Cable
• 1 x Clip
• 2 x AA Batteries
• 1 x Carrying Case
• 1 x Power Supply
• 1 x User Guide
• 1 x Rackmount Hardware

Specifications:

System

• Simultaneous Channel: 1
• Frequency Range: 554-586MHz
• Operating Range: 300ft. line of sight
• Frequency Response: 45Hz -18kHz
• Channel Selection: Auto

ADX10 Lavalier Microphone

• Element Type: Pre-Polarized Condenser
• Polar  Pattern: Cardioid
• Max SPL: ≥120 dB
• Connector: TA3F
• Colour: Black
• Frequency Response: 50Hz -18kHz
• Self-Noise: 29dB

B60 Bodypack Transmitter

• Mute Feature: Yes
• Battery Type: 2x AA
• Battery Life: 14 hours
• Connector: TA3
• Dimensions: 2.6" x 3.5" x 0.67"
• Weight: 3oz

R41 Diversity Receiver

• Antenna Type: Detachable
• Signal-to-Noise Ratio: 105dB (A-Weighted)
• Tabletop of Rack Mountable (Half-Rack)
• Front Panel Display: LCD
• Outputs:
  • 1 x XLR
  • 1 x 1/4"
• Dimensions: 8.07" x 8.11" x 1.73"
• Weight: 1.92lbs
