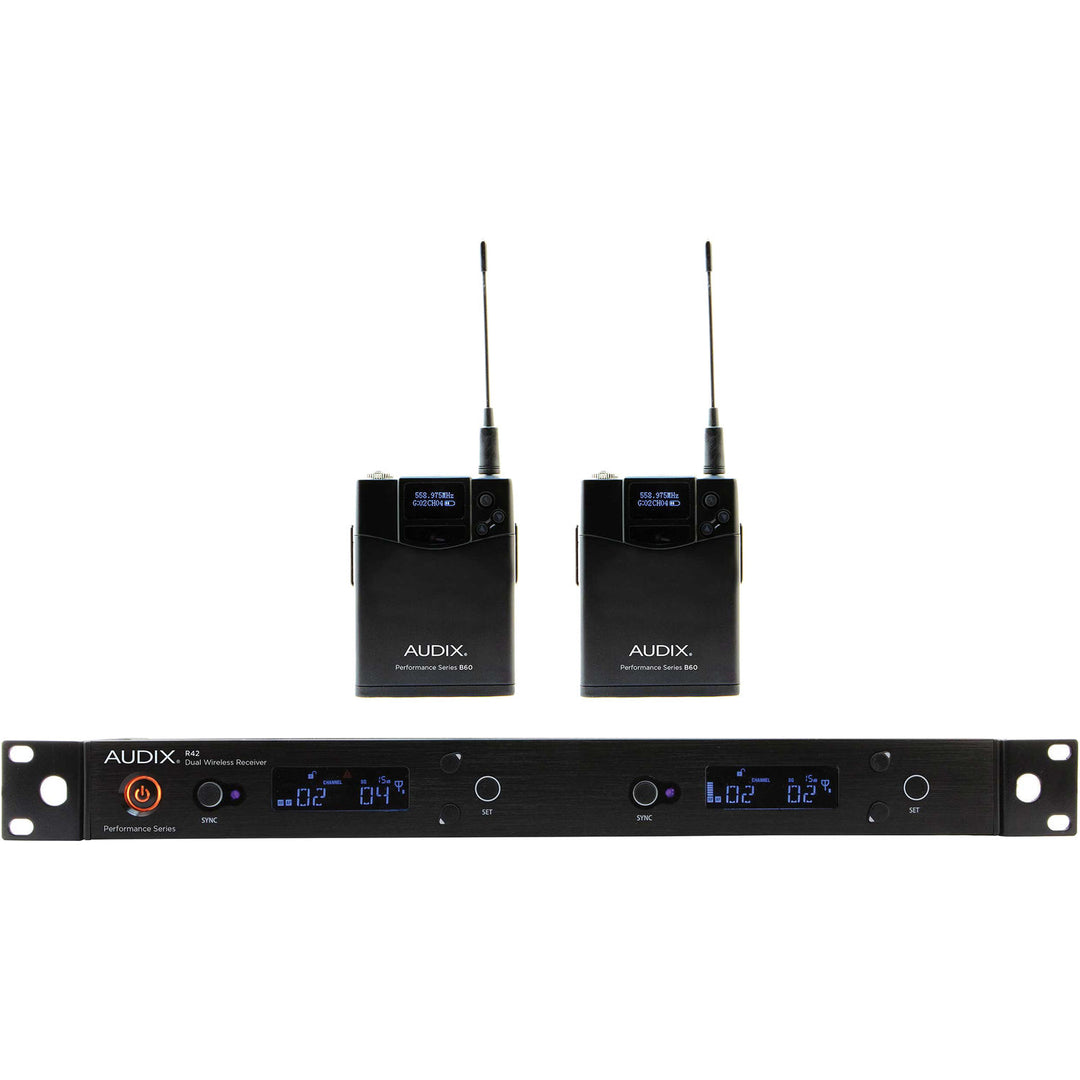

Audix AP42 BP Dual-Channel Bodypack Wireless System (A: 522 MHz – 554 MHz)

The Audix AP42BPA features its performance series and a dual-channel bodypack wireless system from Audix. The Audix AP42BPA has includes the R42 2-channel diversity receiver and two B60 bodypack transmitters. The R42 in Audix AP42BPA diversity receiver operates on a wide-spectrum frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. The Audix AP42BPA comes in a 19" rackmount chassis an internal antenna combiner for dual antenna operation. Thanks to the one-touch sync function, this receiver is very easy to link to the B60 bodypack transmitters placed within 300'

The Audix AP42BPA bodypack transmitters can be used with any lavalier, headworn or instrument microphone in the Audix line, as well as electric guitar and bass. The Audix AP42BPA bodypack transmitter has enclosed in a metal housing with modular antenna design, each transmitter comes with AF and RF gain controls and a soft mute switch which also serves an on/off switch when is needed. As well as displaying group, channel, and battery indicator on a high contrast LCD display.

Features:

R42 Two Channel Diversity Receiver

•  32 MHz Wide spectrum tuning receiver
• 106 Pre-coordinated frequencies
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam

Specifications:

Frequency Band: 522 to 554 MHz

Bandwidth: 32 MHz

# Of Simultaneous Systems: Up to 8

Switchable Frequencies: 106 pre-coordinated frequencies

Wireless Range: Up to 300' / 91 m

Antenna Connector: 2 x BNC (8 VDC, 150 mA)

Outputs:

• 2 x XLR 3-pin balanced
•  2 x 1/4" TS unbalanced

Audio Output Level:

• XLR: -12 dBV at 25 kHz deviation, 600-Ohm   load, +6 gain
• 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load,   +6 gain

Audio Level Control: -12 to +9 dB in 3 dB steps

Frequency Response: 45 Hz to 18 kHz

Compander: 2:1

Pilot Tone: 32 kHz

Receiving System: Single tuner, antenna diversity

Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)

Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)

Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-   weighted)

Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A

Dimensions (W x D x H): 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm

Weight: 4.8 lb / 2.2 kg

B60 Bodypack Transmitter

• 64 MHz Wide spectrum transmitter
• Durable metal housing
• 14 Hour run time - AA batteries

Specifications:

RF Power Output: 10/30 mW

Bandwidth: 64 MHz

Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB

Inputs: 1 x mini-XLR 3-pin

Input Impedance:

• Mic: 10 kOhms
• Line: 1 MOhm

Maximum SPL: Approximately 128 to 140 dB (depending on microphone)

Battery Life: Approximately 14 hours

Current Consumption: 110 mA typical

Power Requirement: 2 x AA 1.5 V batteries

Dimensions (W x L x D): 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm

Weight: 3 oz / 85 g without batteries
