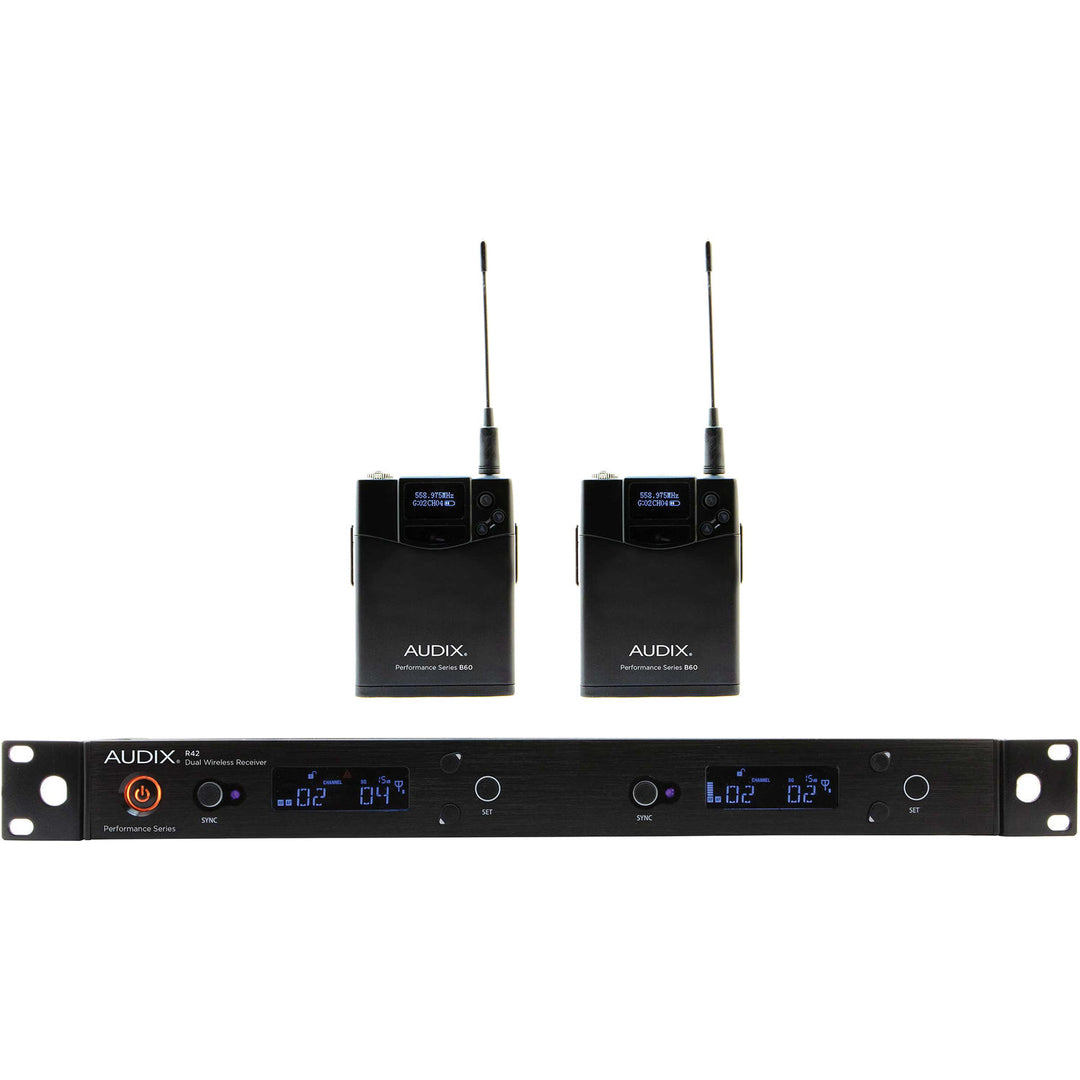

Audix AP42 BP Dual-Channel Bodypack Wireless System (B: 554 MHz – 586 MHz)

This value-packed AP42 BP Wireless Microphone Bodypack System is a diversity system featuring the versatile B60 bodypack transmitter. It may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass.

Included are a rack mount kit and BNC cables for front mounting antennas.

Frequency Band: 554MHz - 586MHz

Specifications:

R42 Reciever

• Bandwidth: 32 MHz
• Compatible Systems: Up to 16 systems (R41) / 8 systems (R42) simultaneous use
• Switchable Frequencies: 106 Pre-coordinated frequencies
• Frequency Response: 45 Hz – 18 kHz
• Compander System: 2:1
• Pilot Tone: 32 kHz
• Receiving System: Single tuner, antenna diversity
• Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion: ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output (Level=6)
  • Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
  • 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
• Output Connectors: 1/4", XLR
• Audio Level Adjustment: -12 to +9 in 3 db steps
• Range: 300' (91m)
• Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
• Dimensions (WxDxH): 15.98 x 8.23 x 1.73" (406 x 209 x 44mm)
• Net Weight: 4.75 lbs (2.1kg)

B60 Bodypack Transmitter

• RF Power Output: 10 mW, 30 mW
• Frequency Bandwidth: 64 MHz
• Gain Controls: 0 db, -6 dB, -12 dB, -24dB
• Input Connector: 3 pin mini-XLR
• Batteries Included: 2 AA 1.5V
• Current Consumption: 110 mA typical
• Battery Life Approximately: 14 hours (depending on battery type and usage)
• Input Impedance Mic: 10k ohm, Line: 1M ohm
• Max Sound Pressure Level Approx. 128 db - 140 dB (depending on microphone)
• Dimensions (WxLxD): 2.6 x 3.5 x 0.67" (67 x 90 x 17mm)
• Net Weight (without batteries): 3oz (85g)
