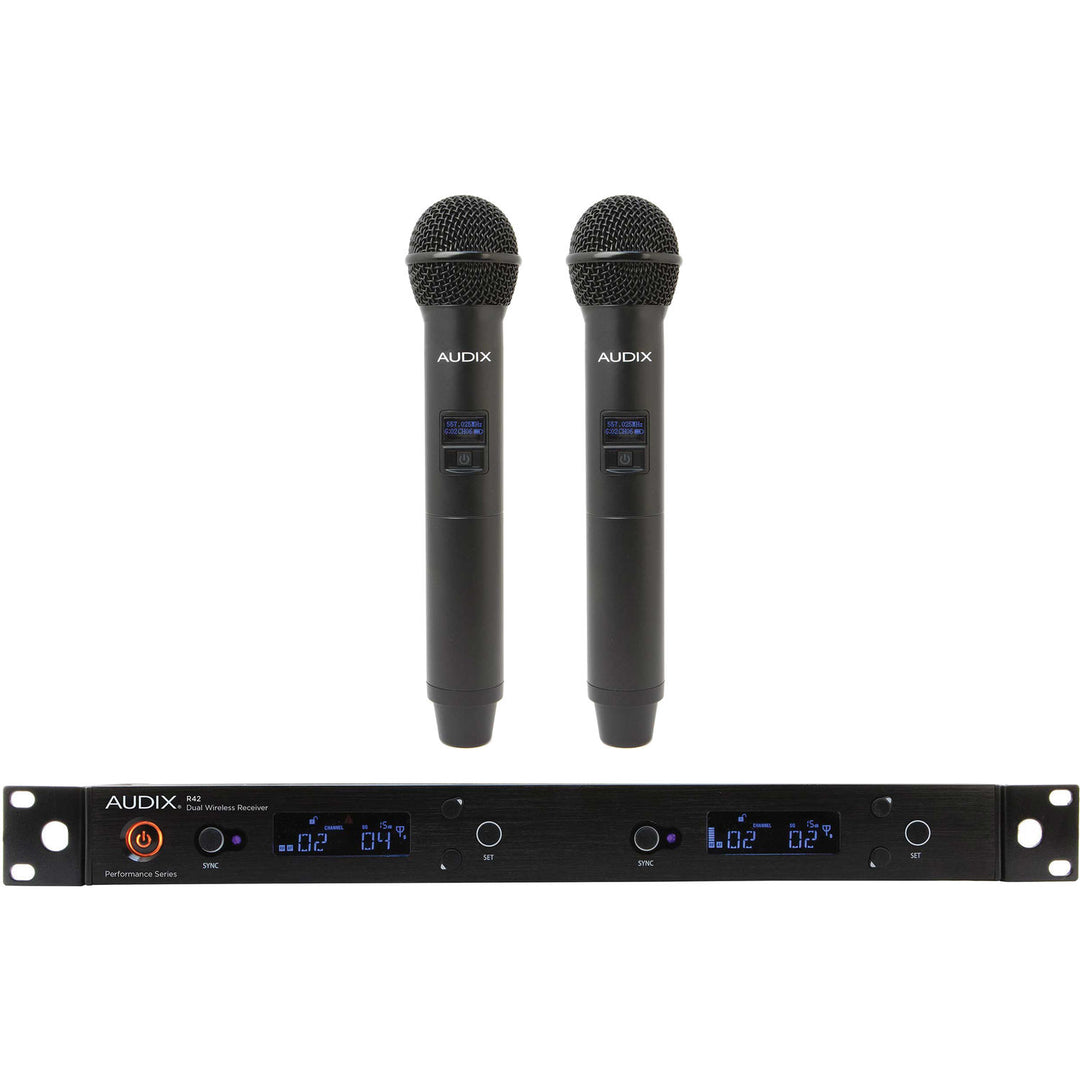

Audix AP42 OM5 Dual Handheld Wireless Microphone System (A: 522 MHz - 554 MHz)

R42 receiver with two H60/OM5 handheld transmitters. Frequency Band (A) = 522 MHz - 554 MHz.

Audix's AP42 Performance Series dual-channel wireless system includes the R42 2-channel diversity receiver and two H60/OM5 handheld transmitters. The R42 receiver operates on a frequency range of 554 to 586 MHz and offers clear channel searches. The unit features an internal antenna combiner for dual antenna operation. It comes in a 19" rack-mount chassis and includes BNC cables for the front-mount antennas. Thanks to the one-touch synchronization function, this receiver easily connects to H60 handheld transmitters via an infrared beam.

Each handheld transmitter comes with the OM5 dynamic microphone capsule. These transmitters feature a slim body design and durable metal housing and are compact, well-balanced, and comfortable to hold. They come with a soft mute switch that doubles as an ON/OFF switch when needed. The transmitter units also feature a high-contrast LCD display with a group, channel, and battery indicator.

Each OM5 microphone has a uniformly controlled hypercardioid polar pattern that isolates the voice from the rest of the instruments on stage or in a studio. They have clarity, resistance to feedback, and the ability to handle SPLs of over 144 dB without distortion.

Specifications:

• Frequency band: 554 to 586 MHz
• Bandwidth: 32 MHz
• # Simultaneous systems: up to 8
• Switchable frequencies: 106 pre-coordinated frequencies
• Wireless range: up to 300' / 91 m
• Antenna connector: 2 x BNC (8 VDC, 150 Ma)
• Outputs:
  • 2 xlr to 3-pin balanced
  • 2 x 1/4" TS Unbalanced
• Audio Output Level:
  • XLR: -12 dbv at 25 kHz spread, 600 ohm load, +6 gain
  • 1/4": -18 dbv at 25 kHz deviation, 10 ohm load, +6 gain
• Audio Level Control: -12 to +9 dB in 3 dB steps
• Frequency response: 45 Hz to 18 kHz
• Compander: 2: 1
• Driver Tone: 32 kHz
• Single system rotate, antenna diversity
• Signal-to-noise ratio: 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD): ≤0.7% (deviation from 33 kHz to 1 kHz)
• Sensitivity: 5 dBμV (s/n 60 dB at 25 kHz deviation, A-weighted)
• Power requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Dimensions (W x D x H): 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm
• Weight: 4.8 lbs / 2.2 kg
