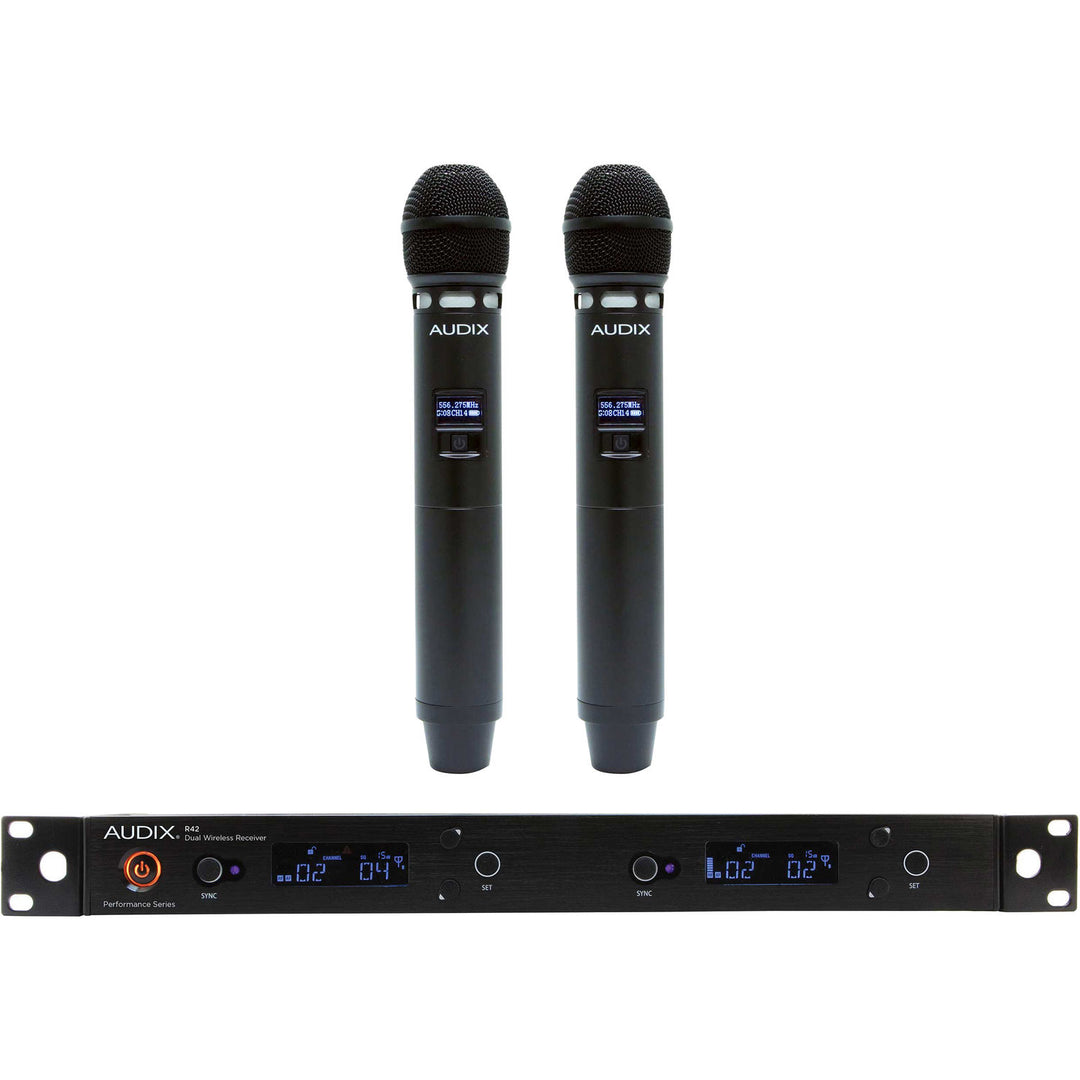

Audix AP42 VX5 Dual Handheld Wireless Microphone System (A: 522 MHz - 554 MHz)

The AP42 Performance Series Dual-Channel Handheld Wireless System from Audix includes the R42 2-channel diversity receiver and two H60/VX5 handheld transmitters. The R42 receiver operates on a frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. The unit features an internal antenna combiner for dual antenna operation. It comes in a 19" rackmount chassis and includes BNC cables for front mounting antennas. Thanks to the one-touch sync function, this receiver easily links to the H60 handheld transmitters via infrared beam.

Each handheld transmitter comes with the VX5 condenser supercardioid microphone capsule. These transmitters feature a slim-line body design and durable metal housing and are compact, well-balanced, and comfortable to hold. They come with a soft mute switch which also serves as an on/off switch when needed. The transmitter units also feature a high-contrast LCD display with group, channel, and battery indicator.

Each VX5 is a multi-purpose, professional vocal condenser microphone designed for live stage, studio, and broadcast applications. With an ability to duplicate studio quality sound on stage, these microphones have a smooth and detailed frequency response, resistance to feedback and can handle high SPLs of more than 140 dB without distortion.

Specifications:

• Frequency Band: 522 to 554 MHz
• Bandwidth: 32 MHz
• # Of Simultaneous Systems: Up to 8
• Switchable Frequencies: 106 pre-coordinated frequencies
• Wireless Range: Up to 300' / 91 m
• Antenna Connector: 2 x BNC (8 VDC, 150 mA)
• Outputs:
  • 2 x XLR 3-pin balanced
  • 2 x 1/4" TS unbalanced
• Audio Output Level:
  • XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
  • 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control: -12 to +9 dB in 3 dB steps
• Frequency Response: 45 Hz to 18 kHz
• Compander: 2:1
• Pilot Tone: 32 kHz
• Receiving System: Single tuner, antenna diversity
• Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Dimensions (W x D x H): 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm
• Weight: 4.8 lb / 2.2 kg
