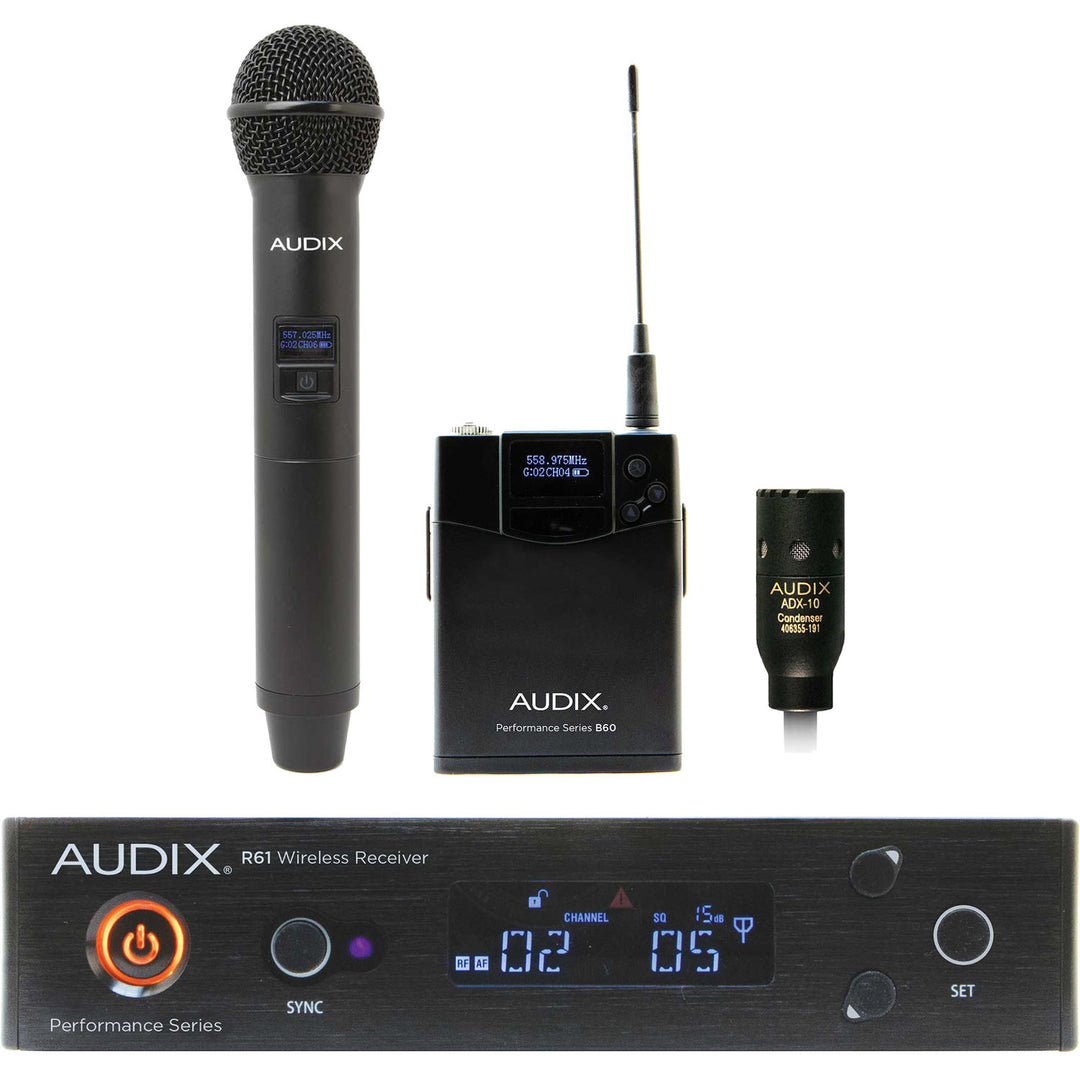

Audix AP61 OM2 L10 Handheld and Lavalier Combo True-Diversity Wireless Microphone System (A: 522 MHz – 586 MHz)

The Audix AP61 OM2 L10 is a Performance Series single-channel true diversity receiver and dual-transmitter bundle designed to deliver reliable long-range wireless audio for preachers, guest speakers, and announcers in houses of worship and live stage applications. It includes an R61 single-channel true diversity receiver, a B60 bodypack transmitter, an ADX10 cardioid condenser lavalier mic, and one H60 transmitter with an OM2 hypercardioid dynamic microphone capsule. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, four AA batteries, a power supply, and a rackmount kit.

The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.

Features:

• Incorporate up to 24 systems to use 24 unique channels simultaneously
• Single-channel receiver supports one wireless microphone
• 64 MHz wide spectrum tuning
• 207 pre-coordinated frequencies
• 2560 tunable frequencies
• High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
• One-touch sync via infrared
• One-touch scan eliminates inefficient manual tuning
• Ground-lift switch helps eliminate ground loops or hum
• Metal strain relief for power cable
• Adjustable AF and RF level
• Selectable receiver lock disables the scan, sync, and power buttons
• Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
• Allows front- or rear-mount antenna configurations

The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.

The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.

Features:

• 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
• Mini-XLR 3-pin connector for compatibility with a variety of microphones or guitar cables
• Durable tour-worthy metal housing
• High-contrast LCD shows group, channel, frequency, mic/line level, and battery status
• Convenient top-panel soft mute button for quick on/off switching
• Two supplied AA batteries provide up to 14 hours of run time
• Selectable 10/30 mW RF power output
• Choose mic or line level
• Four selectable gain settings—0 dB, -6 dB, -12 dB, and -24 dB
• Lock function deactivates the power button, RF output control, and level adjustment

The Audix ADX10 is a miniature lavalier microphone with a cardioid polar pattern. It's size and sensitivity response is more than suitable for interviews, video dialog, presentations, choir and theatrical applications and more.

The condenser microphone features a cable terminated with a mini 3-pin XLR connection. The cardioid polar pattern effectively minimizes noise and audio at the off-axis sections of the microphone and the tailored frequency response maximizes intelligibility of vocals.

Features:

• The cardioid polar pattern effectively minimizes noise and ambient audio at the off-axis sections of the microphone capsule.
• The miniature design of the microphone capsule is suitable for video, presentation and performance applications.
• The tailored frequency response minimizes low frequency noise while maximizing the intelligibility of vocals.

The Audix H60 OM2 is a Performance Series handheld microphone transmitter with an OM2 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 50 Hz to 16 kHz frequency response with a mild bass boost, and a high maximum SPL of approximately 140 dB.

A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM2 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.

Features:

• 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
• High-contrast LCD shows group, channel, frequency, and battery status
• Durable tour-worthy metal housing
• Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
• Convenient soft mute button for quick on/off switching
• Two supplied AA batteries provide up to 14 hours of run time
• Selectable 10/30mW RF power output
• Three selectable gain settings—0 dB, -6 dB, and -12 dB
• Dent-resistant steel mesh grille
• Includes mic clip and pouch
