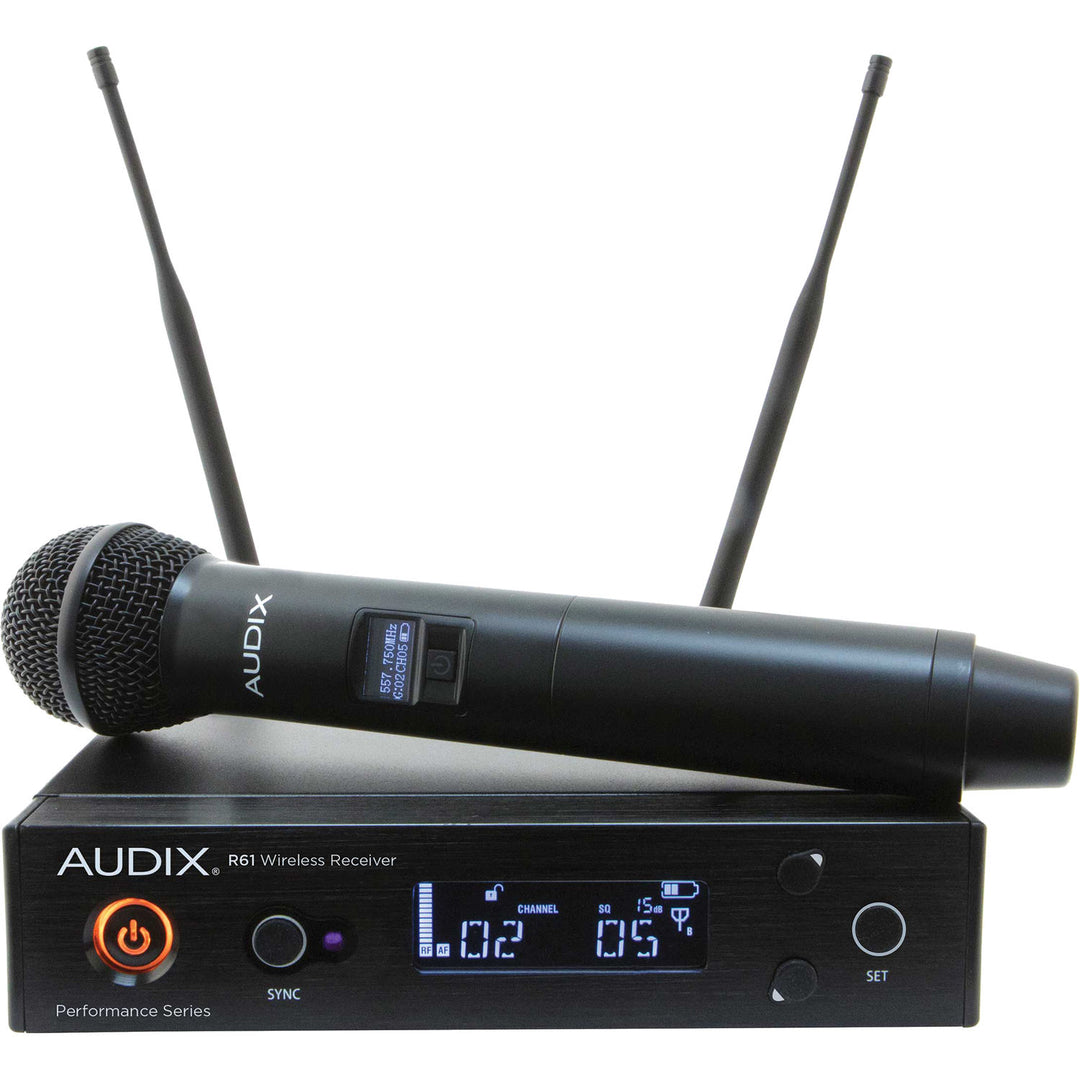

Audix AP61 OM5 Handheld True-Diversity Wireless Microphone System (A: 522 MHz – 586 MHz)

A professional true diversity handheld wireless system featuring the Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios, and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and the ability to handle SPLs in excess of 144 dB without distortion.

A single space rackmount kit with BNC cables for front mounting antennas is included.

R61 True Diversity Receiver:

• 64 MHz wide spectrum tuning receiver
• 207 pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 2560 tunable frequencies (spaced 25kHz apart)
• Frequency Range: 522 MHz - 586 MHz
• Compatible Systems: 20 Compatible System Operation
• Frequency Response: 45Hz - 18kHz
• Compander System: 2:1
• Pilot Tone: 32kHz
• Receiving System: Single tuner, true diversity
• Signal-to-Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)
• THD: ≤0.4% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output (AF=0):
  • Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
  • 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
• Output Connectors: 1/4", XLR
• Audio Level Adjust:
  • Balanced: -12 to +9 dBu
  • Line: -24 to +4 dBu (adjustable in 6 dB-steps)
• Range: 450', (137 M)
• Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
• Dimensions: 1.73" (44 mm) x 8" (205 mm) x 8.1" (206 mm)
• Weight: 2.43 lbs (1.1 kg)

H60 OM5 Handheld Microphone:

• 64 MHz wide spectrum transmitter with OM5 dynamic capsule
• Durable metal housing
• 14 hour run time - x2 1.5V AA batteries included
• RF Power Output: 10mW, 40mW
• Gain Controls: 0dB, -6dB, -12dB
• Current Consumption: 110mA typical
• Max Sound Pressure Level: >140 dB (depending on capsule)
• Dimensions: (LxDiameter): 10.43" (265 mm) x 2.1" (53 mm)
• Weight (without battery): 11 oz (312 g)
