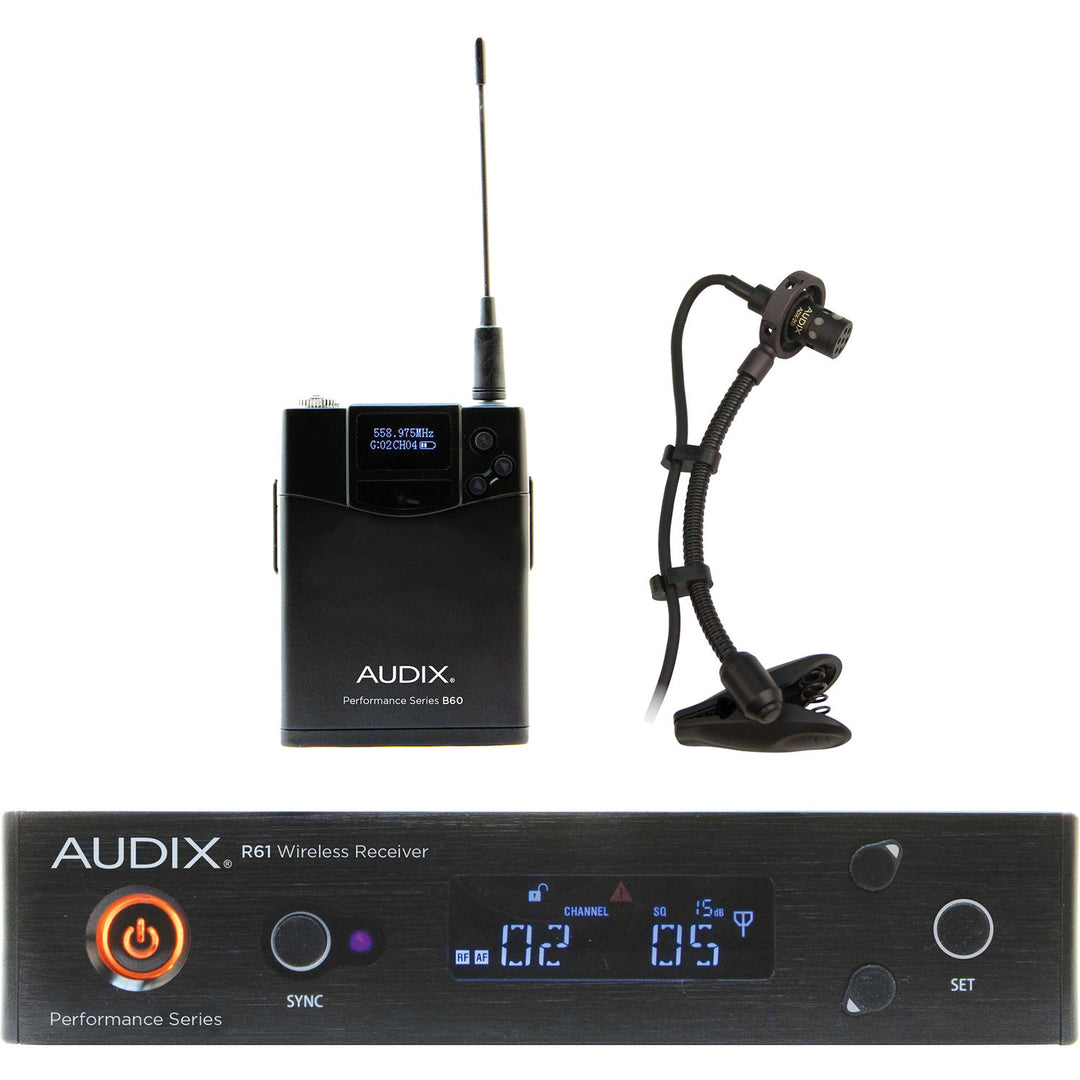

Audix AP61 SAX Instrument Clip-On True-Diversity Wireless Microphone System (A: 522 MHz – 586 MHz)

The Audix AP61 SAX is a Performance Series single-channel true diversity receiver and transmitter bundle designed to deliver reliable long-range wireless audio for performers, presenters, and audio engineers in clubs, houses of worship, and live stage applications. It includes an R61 single-channel true diversity receiver, one B60 bodypack transmitter, and an ADX20i cardioid condenser clip-on instrument microphone. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, two AA batteries, a power supply, and a rackmount kit.

The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.

Features:

• Incorporate up to 24 systems to use 24 unique channels simultaneously
• Single-channel receiver supports one wireless microphone
• 64 MHz wide spectrum tuning
• 207 pre-coordinated frequencies
• 2560 tunable frequencies
• High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
• One-touch sync via infrared
• One-touch scan eliminates inefficient manual tuning
• Ground-lift switch helps eliminate ground loops or hum
• Metal strain relief for power cable
• Adjustable AF and RF level
• Selectable receiver lock disables the scan, sync, and power buttons
• Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
• Allows front- or rear-mount antenna configurations

Specifications:

R61 Kit Single-Channel Wireless True Diversity Receiver

• Frequency Band: 522 to 586 MHZ
• Bandwidth: 64MHz
• # of Simultaneous Systems: Up to 24
• Switchable Frequencies: 207 pre-coordinated frequencies
• Reception Frequencies: 2560 tunable frequencies (spaced 25kHz apart)
• Wireless Range: Up to 450' / 137 m
• Antenna Connector: 2x BNC (8VDC, 150mA)
• Outputs:
  • 1x XLR 3-pin balanced
  • 1x 1/4" TS unbalanced
• Audio Output Level:
  • XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
  • 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control: -12 to +9 dB in 3-dB steps
• Frequency Response: 45Hz to 18kHz
• Compander: 2:1
• Pilot Tone: 32kHz
• Receiving System: Dual tuner, true diversity
• Signal-to-Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD): <0.4% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Enclosure Material: Metal
• Dimensions: 8.1 x 8.1 x 1.7" / 205 x 206 x 44 mm
• Weight: 2.4 lb / 1.1 kg

B60 Performance Series Bodypack Transmitter

• RF Power Output: 10/30mW
• Bandwidth: 64MHz
• Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
• Inputs: 1x mini-XLR 3-pin
• Input Impedance:
  • Mic: 10kOhms
  • Line: 1MOhm
• Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
• Battery Life: Approximately 14 hours
• Current Consumption: 110mA typical
• Power Requirement: 2 x AA 1.5V batteries
• Dimaensions: 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm
• Weight: 3 oz / 85 g without batteries

ADX20I Cardioid Condenser Instrument Microphone

• Polar Pattern: Cardioid
• Element Type: Condenser
• Frequency Response: 40Hz to 20kHz
• Maximum SPL: 130dB
• Analog Output: 1x TA3M/Mini-XLR 3-Pin Male
• Power Sources: 9 to 52 V Phantom Power
• Sound Field: Mono
• Circuitry: Solid-State
• Colour: Black
• Dimensions (Diam x L): 0.47 x 1.14" / 12 x 29 mm
• Weight: 1.7 oz / 4.7 g
