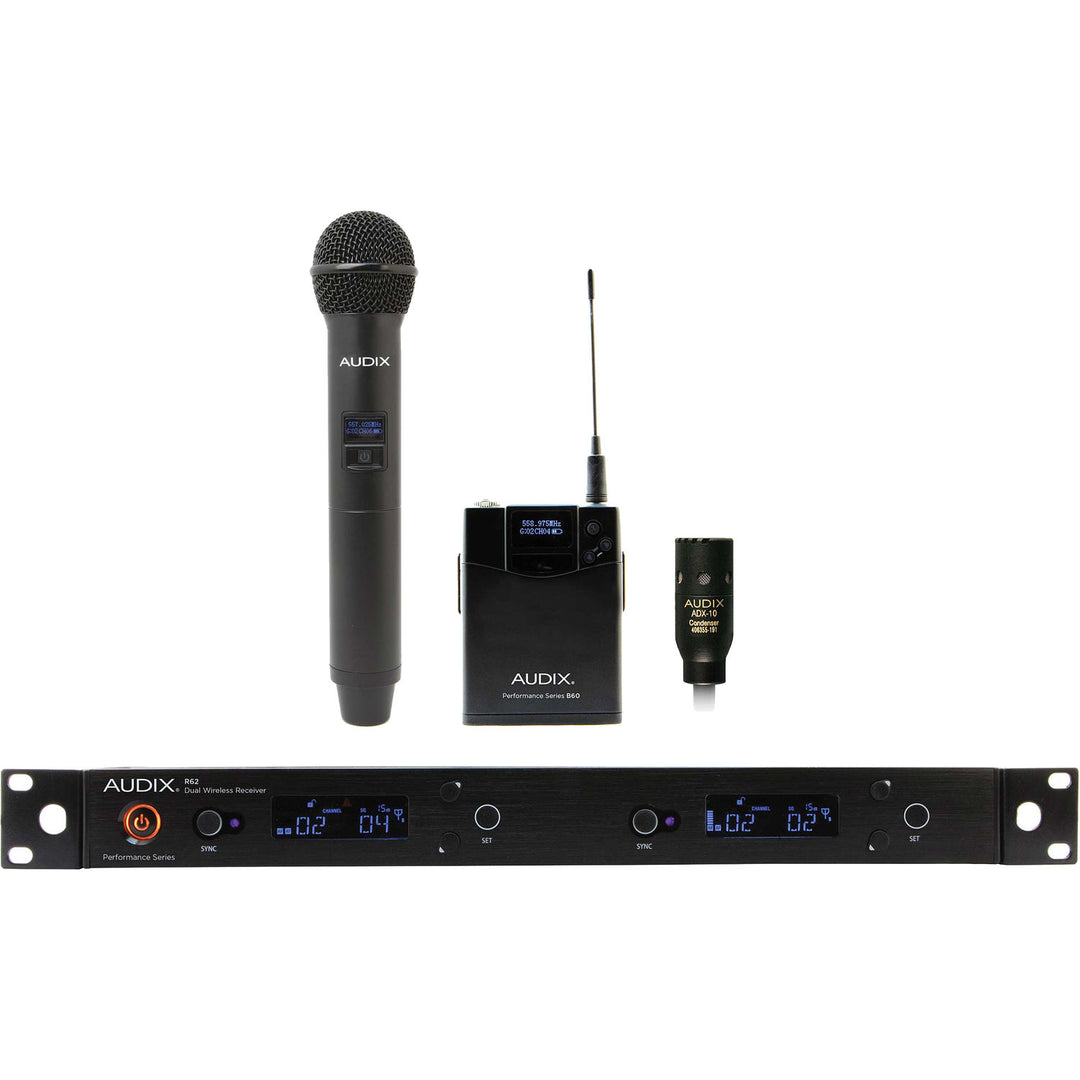

Audix AP62 C210 Handheld and Lavalier Combo True-Diversity Wireless Microphone System (A: 522 MHz – 586 MHz)

A professional true diversity wireless system featuring the Audix OM2 handheld transmitter with the ADX10 cardioid lavalier system.

This is a very efficient and cost-effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and antenna distribution system for up to four systems (8 channels).

Specifications:

R62 2-Channel True Diversity Receiver:

• 64 MHz wide spectrum tuning receiver
• 2560 Tunable frequencies
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• Frequency Range: 522MHz - 586MHz
• Bandwidth: 64MHz
• Power Supply: 100-240 V / 50-60 Hz, 12V DC, 1A
• Dimensions: (HxWxD): 1.73" (44 mm) x 15.98" (406 mm) x 8.23" (209 mm)

H60 OM2 Handheld Transmitter:

• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
• Durable metal housing
• 14 Hour run time - x2 1.5V AA batteries included
• FR Power Output: 10mW, 40mW
• Frequency Bandwidth: 64MHz
• Max Sound Pressure Level: >140 dB (depending on capsule)
• Dimensions (HxBody Diameter): 10.43" (265 mm) x 2.1" (53 mm)
• Weight: 0.69 lbs (0.31 kg)

B60 L10 Bodypack Transmitter:

• 64 MHz wide spectrum transmitter with ADX10 lavalier microphone
• Durable metal housing
• 14 Hour run time - x2 1.5V AA batteries included
• RF Power Output: 10mW, 40mW
• Frequency Bandwidth: 64MHz
• Max Sound Pressure Level: 128 dB to140 dB (depending on mic)
• Dimensions (HxWxD): 3.5" (90 mm) x 2.6" (67 mm) x 0.67" (17 mm)
• Weight: 0.19 lbs (0.09 kg)
