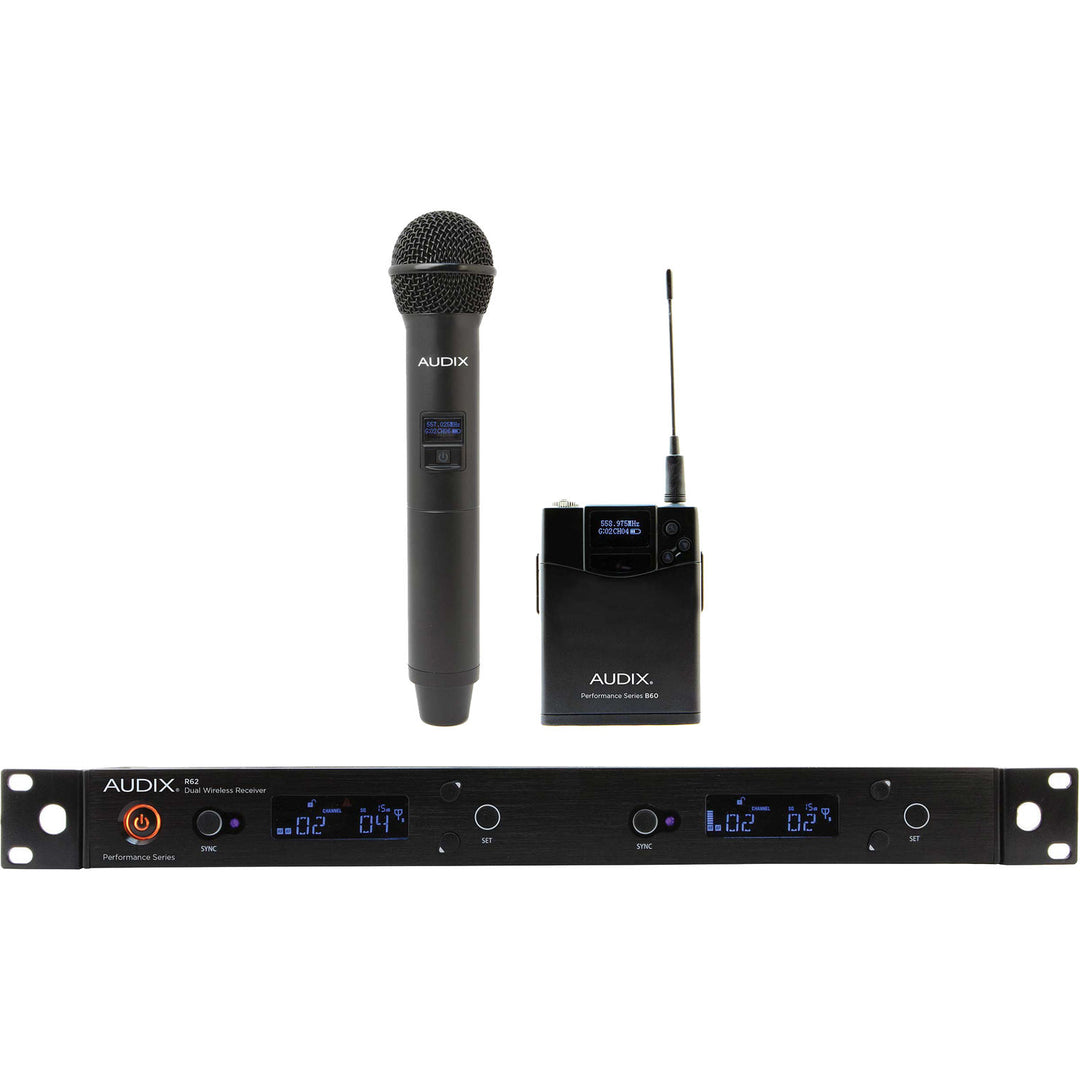

Audix AP62 C2BP Handheld and Bodypack Combo True-Diversity Wireless Microphone System (A: 522 MHz – 586 MHz)

A professional true diversity wireless system featuring the Audix OM2 handheld transmitter with the B60 bodypack to allow your choice of lavalier or headset microphones.

This is a professional wireless microphone system with the flexibility of a handheld mic. The OM2 has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and an antenna distribution system for up to four systems (8 channels).

R62 Two-Channel True Diversity Receiver

• 64 MHz Wide spectrum tuning receiver
• 2560 Tunable frequencies (spaced 25kHz apart)
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam
• Frequency Range: 522MHz-586MHz
• Bandwidth: 64MHz
• Compatible Systems: 20 Compatible system operation
• Switchable Frequencies: 207 preset frequencies
• Frequency Response: 45Hz - 18kHz
• Compander System: 2:1
• Pilot Tone: 32kHz
• Receiving System: Single tuner, diversity
• Signal-to-Noise Ratio: 112dB at 30kHz deviation (A-weighted)
• THD: 0.4% (33kHz deviation at 1kHz)
• Sensitivity: 5dBV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output (AF=0):
  • Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
  • 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
• Output Connectors: 1/4", XLR
• Audio Level Adjust:
  • Balanced: -12 to +9 dBu
  • Line: -24 to +4 dBu (adjustable in 3 dB-steps)
• Range: 450', (137m)
• Dimensions: 406 mm (W) x 209 mm (D) x 44 mm (H)
• Net Weight: 4.65 lbs. / 2.12 kg

B60 Bodypack Transmitter:

• 64 MHz Wide spectrum transmitter
• Durable metal housing
• 14 Hour run time – x2 1.5V AA batteries included
• RF Power Output: 10mW, 40mW
• Frequency Bandwidth: 64MHz
• Gain Controls: 0 db, -6 dB, -12 dB
• Input Connector: 3-pin mini-XLR
• Current Consumption: 110mA typical
• Input Impedance:
  • Mic:10kohm
  • Line: 1Mohm
• Max Sound Pressure Level: 128 dB to140 dB (depending on mic)
• Dimensions: 67 mm (W) x 90 mm (L) x 17 mm (D)
  2.6" (W) x 3.5" (L) x .67" (D)
• Net Weight: 3.0 oz / 85 g (without battery)

H60 OM2 Handheld Transmitter

• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
• Durable metal housing
• 14 Hour run time – x2 1.5V AA batteries included
• RF Power Output: 10mW, 40mW
• Frequency Bandwidth: 64MHz
• Gain Controls: 0 dB, -6 dB, -12 dB
• Current Consumption: 110mA typical
• Max Sound Pressure Level: >140 dB (depending on capsule)
• Dimensions:
  • 2.1” diameter body, 10.43” (L)
  • 53 mm diameter body, 265 mm (L)
• Net Weight: 11.0 oz / 312 g (without battery)
