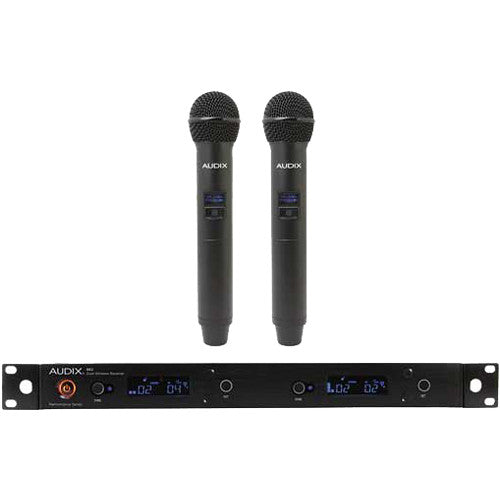

Audix AP62 OM5 Dual Handheld True-Diversity Wireless Microphone System (A: 522 MHz – 586 MHz)

The AP62OM5 2-Channel Wireless Receiver with Two Handheld Wireless Microphones from Audix is a Performance Series, dual-channel true diversity receiver and dual handheld transmitters bundle designed to deliver reliable long-range wireless audio for performers and audio engineers in clubs, houses of worship, and live stage applications. The wireless bundle includes an R62 dual-channel true diversity receiver and two H60 OM5 handheld hypercardioid dynamic microphone transmitters. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, BNC antenna cables, mic clips and pouches, a power supply, audio cable, and rackmount hardware.

Audix R62 Kit Dual-Channel Wireless True Diversity Receiver (522 to 586 MHz)

The Audix R62 Kit is a Performance Series dual-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use two wireless microphones (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R62 Kit ships with two antennas, two BNC cables, an audio cable, one power supply, and a rackmount kit.

• Incorporate up to 12 systems to use 24 unique channels simultaneously
• Dual-channel receiver supports two wireless microphones
• 64 MHz wide spectrum tuning
• 207 pre-coordinated frequencies
• 2560 tunable frequencies (spaced 25kHz apart)
• High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
• One-touch sync via infrared
• One-touch scan eliminates inefficient manual tuning
• Ground-lift switches help eliminate ground loops or hum
• Metal strain relief for power cable
• Adjustable AF and RF level
• Selectable receiver lock disables the scan, sync, and power buttons
• Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
• Allows front- or rear-mount antenna configurations
• Frequency Band: 522 to 586 MHz
• Bandwidth: 64MHz
• Number of Simultaneous Systems: Up to 12
• Antenna Connector: 2x BNC (8VDC, 150mA)
• Outputs:
  • 2x XLR 3-pin balanced
  • 2 x 1/4" TS unbalanced
• Audio Output LevelL
  • XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
  • 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control: -12 to +9 dB in 3-dB steps
• Frequency Response: 45Hz to 18kHz
• Compander: 2:1
• Pilot Tone: 32kHz
• Receiving System: Dual tuner, true diversity
• Signal-to-Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)
• THD: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Enclosure MAterial: Metal
• Dimensions: 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm
• Weight: 4.8lb / 2.2kg

Audix H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule (522 to 586 MHz)

The Audix H60 OM5 is a Performance Series handheld microphone transmitter with an OM5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 48 Hz to 19 kHz frequency response with a slight high-frequency rise, and a high maximum SPL of approximately 144 dB.

A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.

• 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
• High-contrast LCD shows group, channel, frequency, and battery status
• Durable tour-worthy metal housing
• Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
• Convenient soft mute button for quick on/off switching
• Two supplied AA batteries provide up to 14 hours of run time
• Selectable 10/30mW RF power output
• Three selectable gain settings—0 dB, -6 dB, and -12 dB
• Dent-resistant steel mesh grille
• Includes mic clip and pouch
• Polar Pattern: Hypercardioid
• Capsule: VLM Type C
• Frequency Response: 48Hz to 19kHz
• Maximum SPL: ≥144 dB
• Impedance: 200ohms
• Sensitivity: 2 mV/Pa at 1 kHz
• Off-Axis Performance: Rejection >30 dB
• RF Power Output: 10/30 mW
• Bandwidth: 64MHz
• Gain Adjustment: 0 dB, -6 dB, -12 dB
• Current Consumption: 110mA typical
• Dimensions: 2.1 x 10.4" / 53 x 265 mm
• Weight: 11 oz / 312 g without batteries
