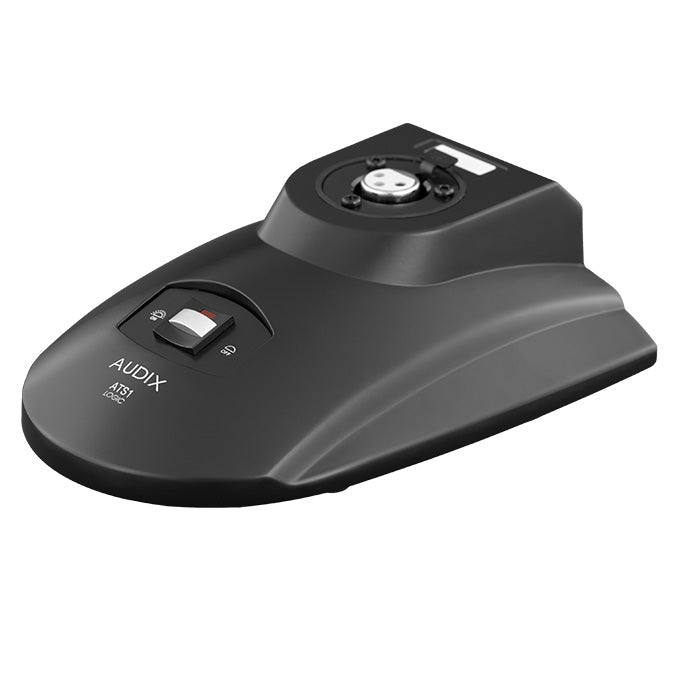

Audix ATS1L Series Table Stand w/ Programmable Switch for Logic-Enabled Conferencing Systems - 5-Pin XLR

Designed for professional audio installations—particularly in the teleconferencing and video-conferencing arenas—the Audix ATS1LX is a table-stand intended for use with microphones. This stand offers a heavy-duty die-cast base, as well as a noise-free on-off switch, an LED indicator, and a 3-pin XLR connection for compatible microphones. The output provided in this model is a 5-pin male XLR termination.

Use this stand with phantom-powered, gooseneck condenser microphones. Set it atop podiums, lecterns, and other apposite surfaces in places such as classrooms, courtrooms, boardrooms, and more. Program the on-off switch to be used in either momentary or latching modes, so you can press it once for switching between on/off positions, or hold it down for the duration of a speech.

By means of a DIP switch, you can determine whether the switch is handled by the person speaking into the microphone, or externally, by means of logic-enabled teleconferencing media systems. You can also turn on a low-cut filter to eliminate low-end rumble and render the speaker more clear.

Features:

• Heavy-duty die-cast base for stability
• Programmable switch with momentary and latching options
• Hidden dip switches
• Bass roll-off filter
• LED indicator lights operate on phantom power
• Noise-free mechanical switch
• Operates on phantom power voltage of 36 to 52V
• 3-pin Mic XLR input connector designed for gooseneck condenser microphones
• Male XLR termination for output connector
• Local/remote option allows use with automated mixers
• External LED control allows for live status of the microphone
• Shockmount design minimizes vibration

Specifications:

Mute Attenuation: 45dB (minimum)

Phantom Power Requirements: 36 to 52 VDC, 2 mA Typical

Dimensions: 6.9 x 5.9 x 1.8" / 160 x 124 x 45 mm

Voltage: Closure I/O Voltage for Logic-Enabled Conference Systems: -0.5 to 30 V

Current: Closure Through Current for Logic-Enabled Conference Systems: 200 mA (Resettable Fuse Protected) I/O Leakage Current: 1 uA

Impedance: Closure Resistance: 200mA

LED: Active when Low (0.7 VDC)

Weight: 3 lb / 1.4 kg
