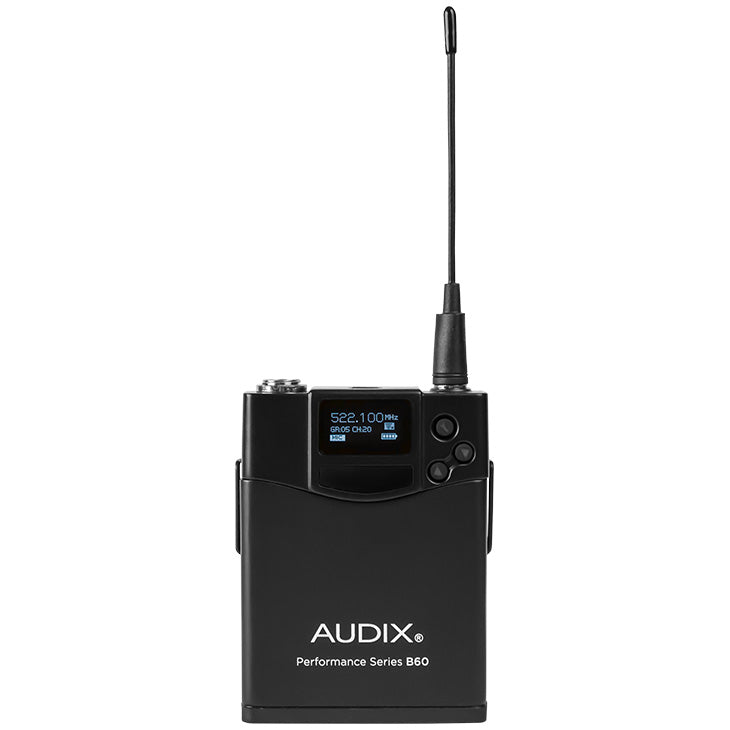

Overview of Audix B60 Bodypack Transmitter for Wireless Microphone System
The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.
The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.
Features:
- 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
- Mini-XLR 3-pin connector for compatibility with a variety of microphones or guitar cables
- Durable tour-worthy metal housing
- High-contrast LCD shows group, channel, frequency, mic/line level, and battery status
- Convenient top-panel soft mute button for quick on/off switching
- Two supplied AA batteries provide up to 14 hours of run time
- Selectable 10/30 mW RF power output
- Choose mic or line level
- Four selectable gain settings—0 dB, -6 dB, -12 dB, and -24 dB
- Lock function deactivates the power button, RF output control, and level adjustment
Specifications:
RF Power Output: 10/30mW
Bandwidth: 64MHz
Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
Inputs: 1x mini-XLR 3-pin
Input Impedance:
- Mic: 10kOhms
- Line: 1MOhm
Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
Battery Life: Approximately 14 hours
Current Consumption: 110mA typical
Power Requirements: 2x AA 1.5V batteries
Dimensions: 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm
Weight: 3 oz / 85 g without batteries
