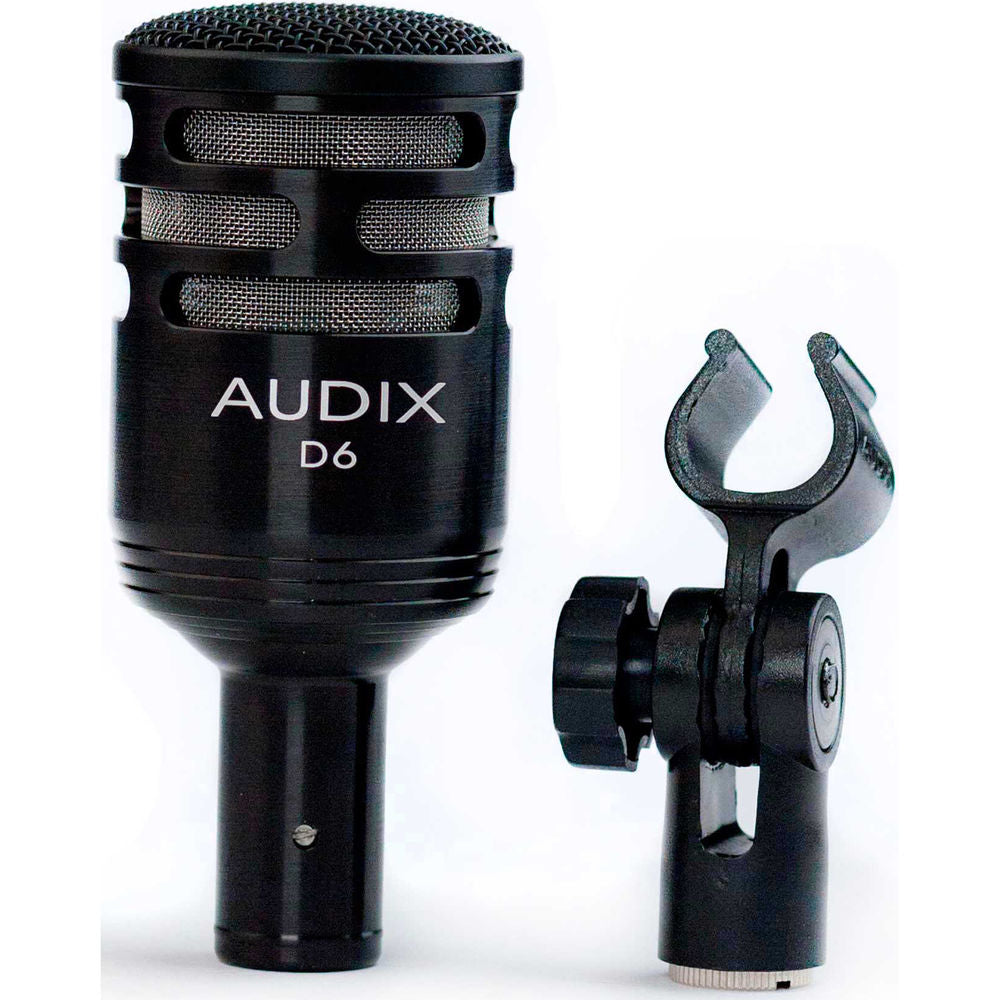

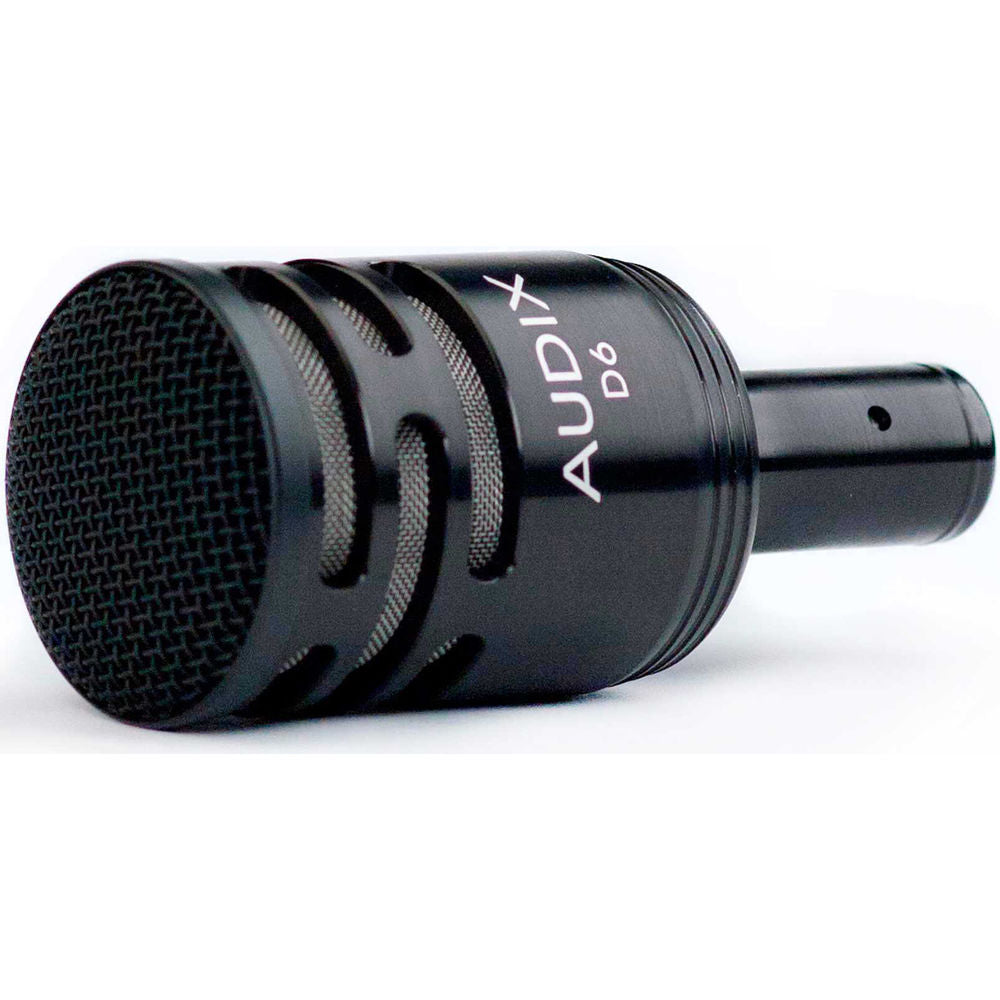

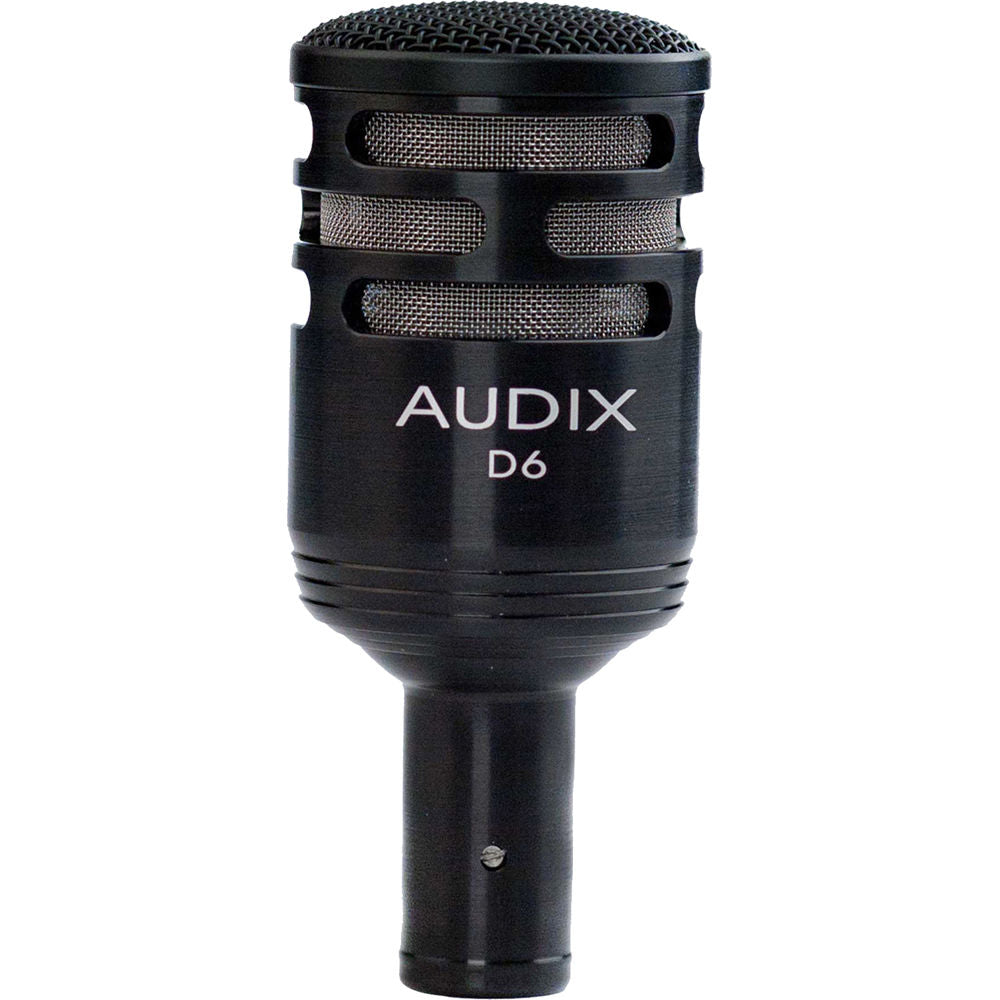

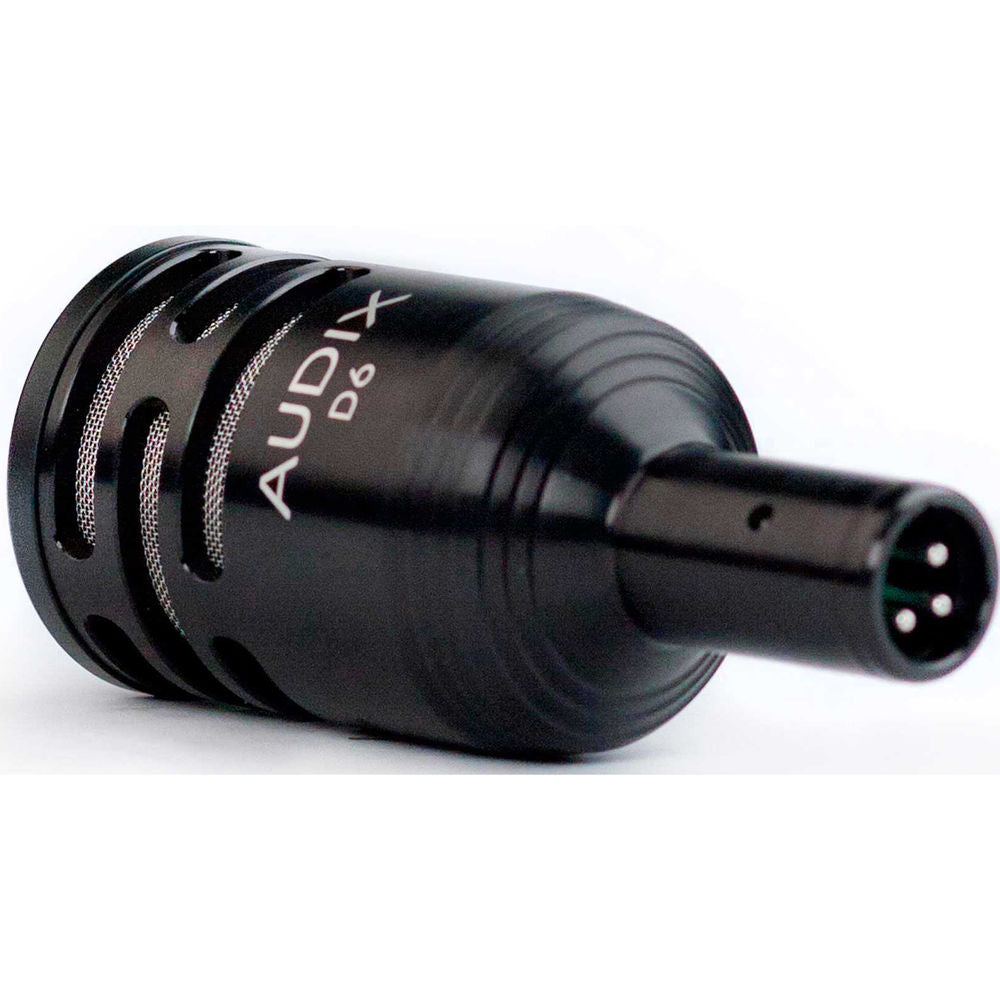

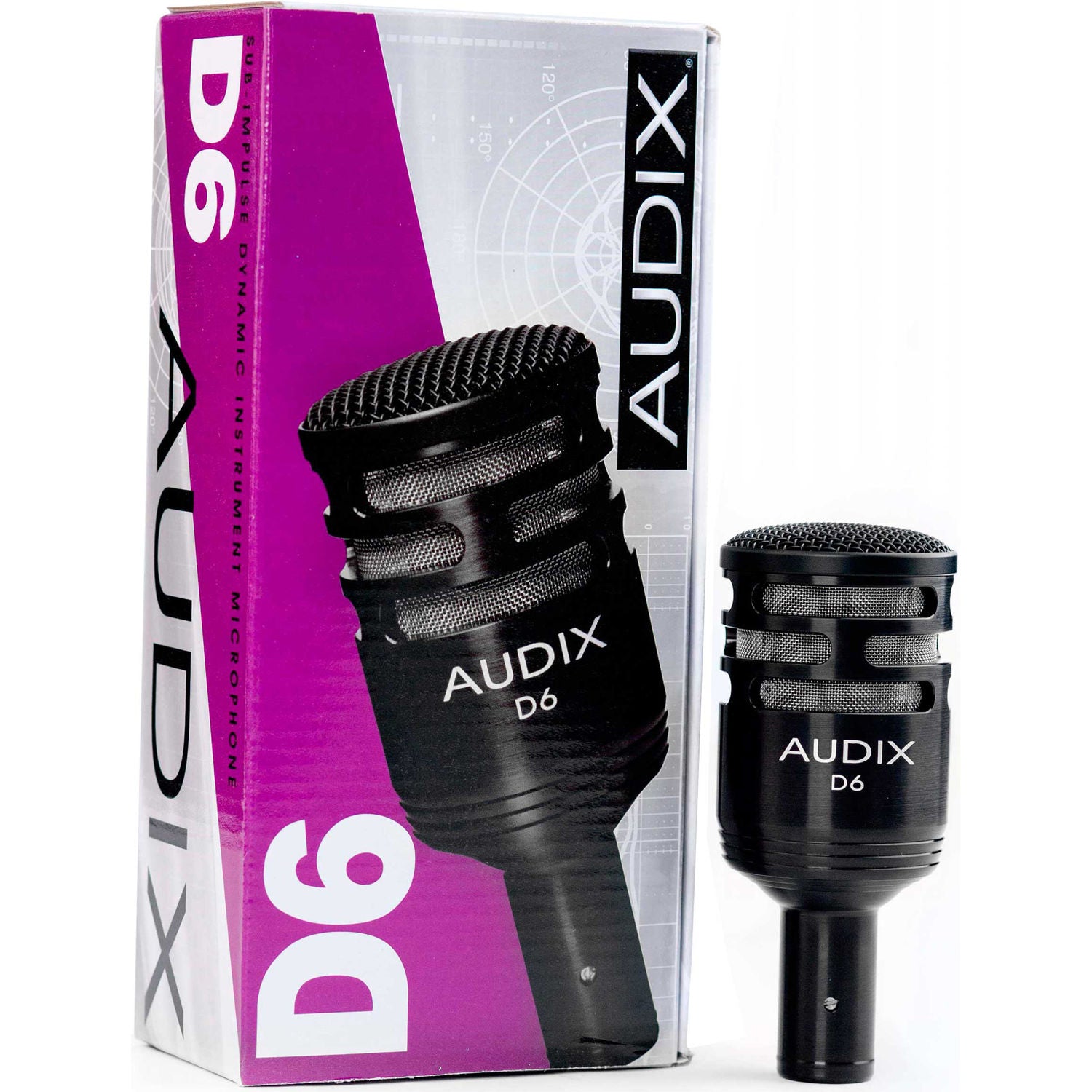

Audix D6 Instrument Microphone

Designed, machined, assembled, and tested by Audix, the D6 is a dynamic instrument microphone used for stage, studio, and broadcast applications. The D6 is characterized by a cardioid pickup pattern for isolation and feedback control and is equipped with a VLM™ (Very Low Mass) diaphragm for natural, accurate sound reproduction.

The D6 is lightweight, compact, and easy to position. With a tailored frequency response of 30 Hz - 15 kHz and the ability to handle sound pressure levels in excess of 144 dB, the D6 is an excellent choice for miking instruments requiring extended low-frequency reproduction such as kick drums, large toms, and bass cabinets.

The D6 is manufactured with a precision-machined aluminum body, black anodized finish, steel mesh grill, and gold-plated XLR connector. Transformerless design, low impedance, and balanced output allow for interference-free performance even with long cable runs.

Features:

• Professional dynamic instrument microphone for live sound or studio
• Ground-shaking low end with excellent definition and clarity
• VLM Capsule

Applications:

• Live stage, recording
• Kick drum
• Floor tom
• Bass cabinets
• Leslie bottom

Specifications:

• Transducer Type: Dynamic
• Frequency Response: 30Hz - 15kHz
• Polar Pattern: Cardioid
• Output Impedance: 280ohms
• Sensitivity: 0.8 mV / Pa @ 80 Hz
• Capsule Technology: VLM Type E
• Off-Axis Rejection: >20 dB
• Maximum SPL: ≥144 dB
• Connector: 3-pin XLRm
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish:  Machined Aluminum / Black
  Finish
• Weight: 254 g / 8.9oz
• Length: 117 mm / 4.6 in
