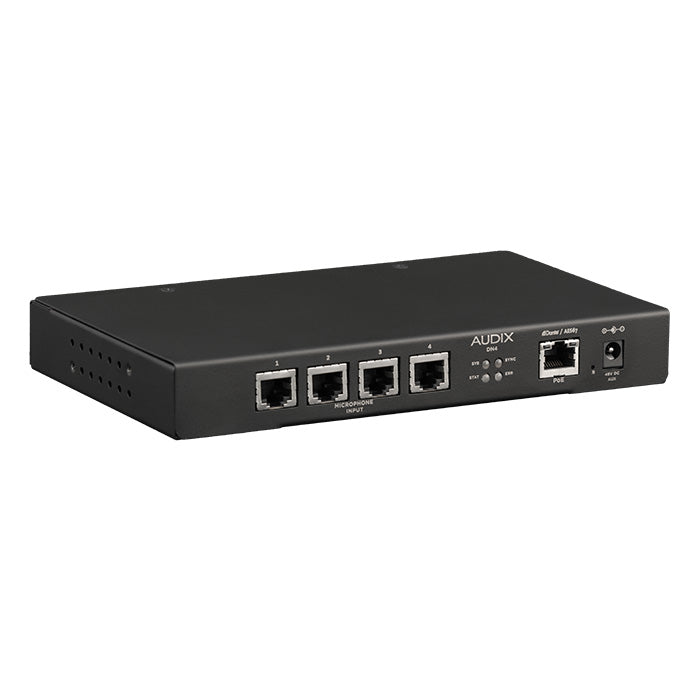

Audix DN4 DANTE AES67 Microphone Interface for The Dante (4x RJ45 Mics)

The DN4 Dante AES67 Integrated Microphone System Interface from Audix is the heart of a microphone system that offers audio performance through Ethernet networks. It can be used to provide microphone functions including on-off contact closure and LED status indicators for meeting rooms, convention centers, educational facilities, and houses of worship through a single Cat 5 - Cat 7 cable with RJ45 connections.

The DN4 interface features four ports for Audix RJ45-equipped single-element microphones. The configuration eliminates wiring errors and accelerates installation. In addition, all Audix RJ45-equipped microphone gain structures are optimized for their intended placement, which provides quality audio at the DSP. The result is true plug-and-play installation.

Furthermore, the interface is equipped with two 5V logic outputs per port and source/sink capability for LEDs that are controlled by network-connected DSPs. Low-pass and high-pass filter settings are available for each audio channel as well as eight selectable gain levels with all settings configurable via software.

Dante Features

• Supports AES67 audio streams
• Dante Domain Manager (DDM) ready
• Dynamic or static IP address
• Evaluated to the requirement of UL2043 and is suitable for use in above-ceiling applications

Power Features

• PoE from any IEEE 802.3af compliant equipment

Connectivity

• Two 5V logic outputs per port, with source/sink capability for LEDs controlled by network-connected DSPs
• One logic input per single-element microphone port for buttons

Specifications:

Mic Input: Balanced, RFI Filtered
4 x Ports for Audix RJ45 Microphones

Mic Input Connector: Shielded 8P8C, RJ45

Phantom Power: 48 VDC, 14 mA/Port (Short-Circuit Protected)

Max Input: -14 dBu, 155 mV (0 dB Gain)

Input Impedance: 1.15 kOhms (Balanced)

Frequency Response: 15 Hz to 22 kHz, +0, -3 dB

THD+N: 0.003% (1 kHz, 0 dB Gain)

CMRR: 50 dB

EIN: -120 dBu (Unweighted)

SNR: -96 dB (Unweighted)

Channel Crosstalk: <-80 dB (1 kHz)

Dante / AES67 Channels: 4

Chipset: Dante: UXT-01-004

Sample Rate: 48 kHz

Word Width: 24-Bit

Logic Input:

• Logic Inputs Per Port: 1 x Per Single-Element Microphone Port
• Logic Outputs Per Port: 2 x

Low-Pass Frequency: Off, 5 kHz, 7 kHz, 10 kHz

High-Pass Filter: 15 Hz, 238 Hz

Gain Options: 0 / +8 / +12 / +15 / +18 / +24 / 30 / and +36 dB

Power:

• External DC Jack: +48 VDC, 125 mA
• PoE (IEEE 802.3af: Class 2 (3.84 to 6.49 W)

Temperature (Operating): 50 to 122°F / 10 to 50°C

Dimensions: 1.1 x 8.0 x 4.9" / 2.8 x 20.2 x 12.5 cm

Weight: 1.41 lb / 0.64 kg
