Audix DP Quad Drum Microphone Package for 4-Piece Kit

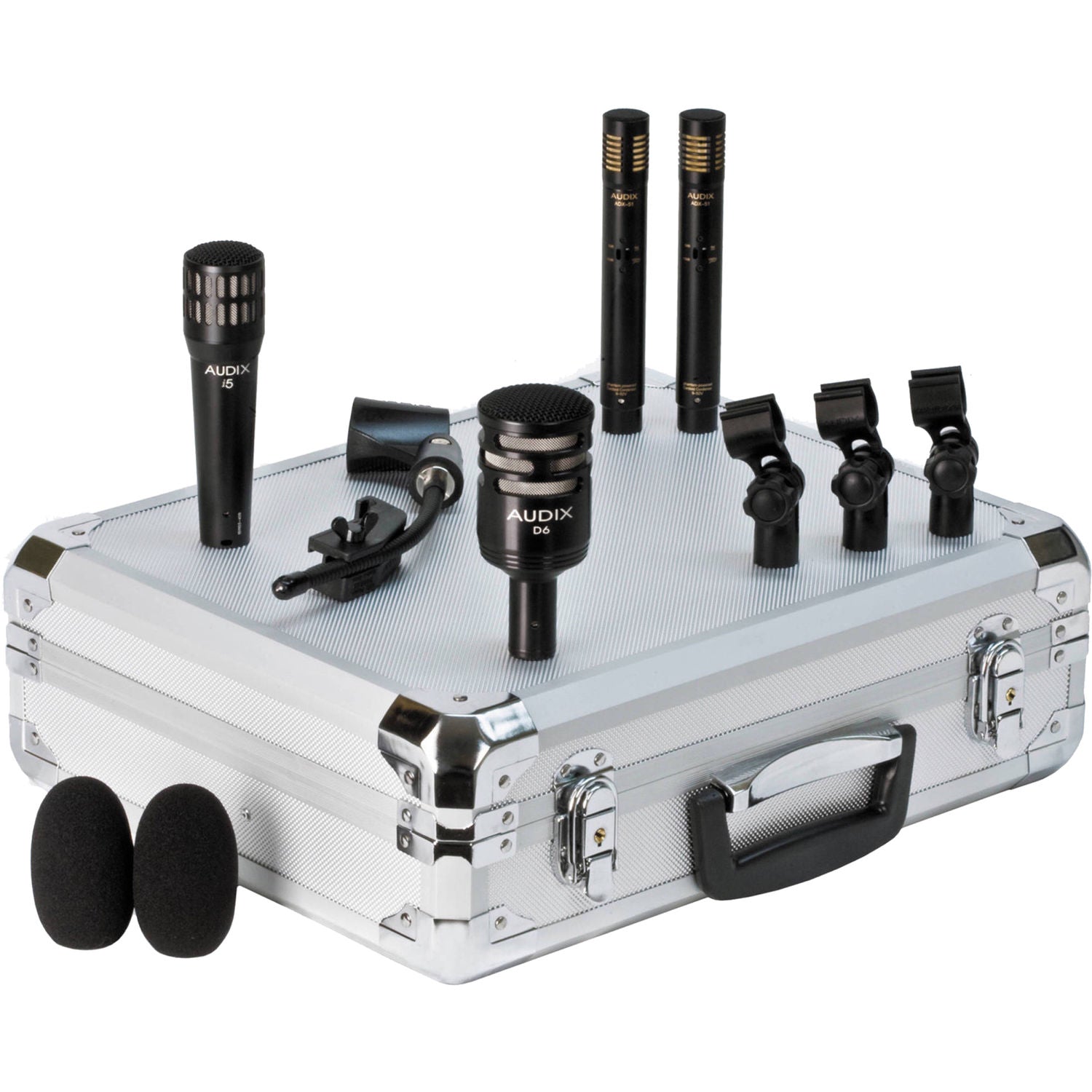

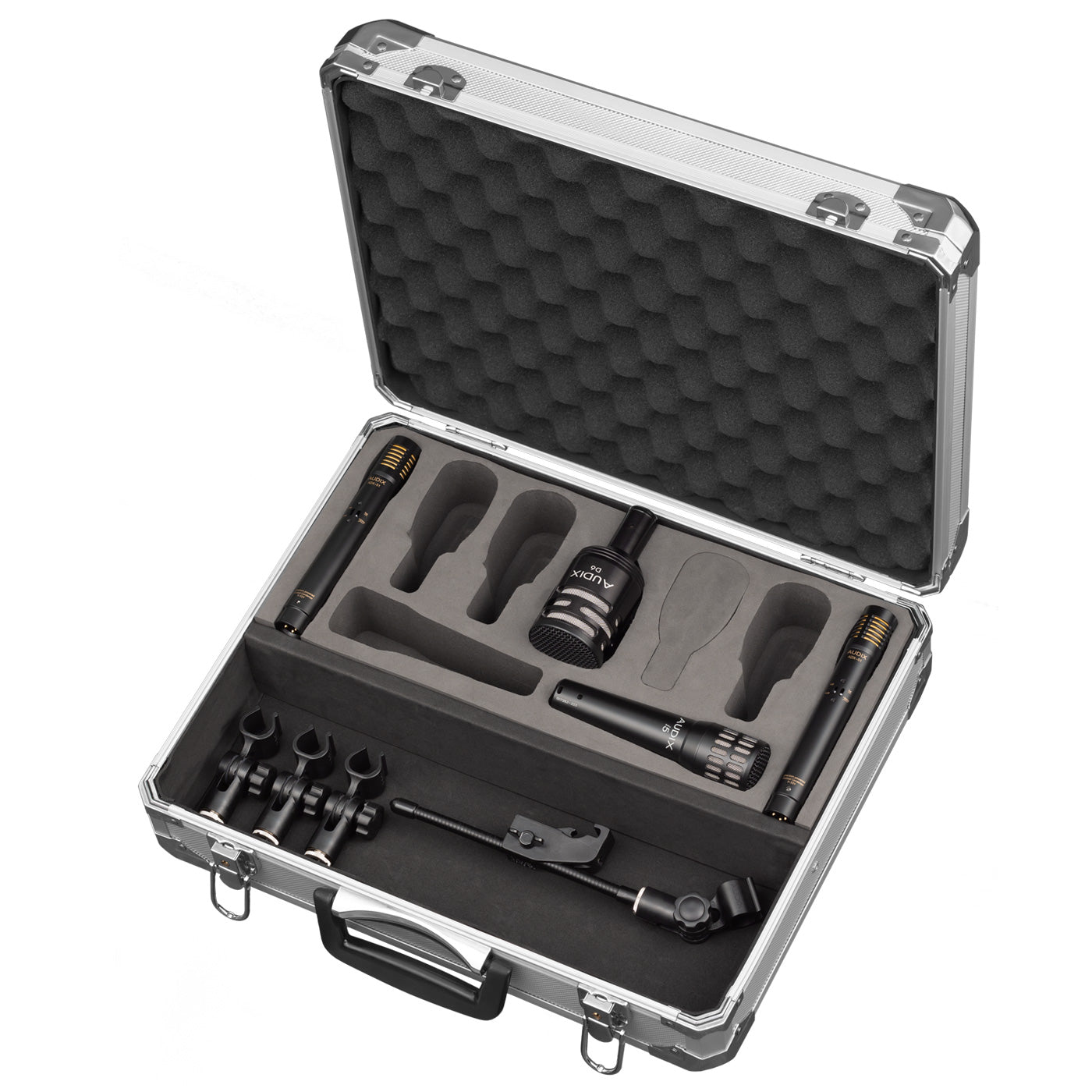

The DPQUAD pack consists of four microphones grouped together to mic a full drum kit. This arrangement employs a left overhead mic to cover hi-hat, cymbals and rack toms, and a right overhead mic to capture the floor tom and ride cymbal. Individual snare and kick mics complete the essential punch needed for a good drum mix. All mics, clips and
accessories are packed in a durable aluminum carrying case.

• Professional set of 4 drum mics for stage or studio
• Designed to capture the essence of a full kit with the least number of mics
• Combines close miking technique for kick and snare with overhead ambient mic placement.

Includes:

• 1x i5 snare mic
• 1x D6 kick mic
• 2x ADX51 overhead mics
• 3x DCLIP - Heavy duty mic clip
• 1x DVICE - Spring loaded rim mount clamp
• 1x MC1 - Nylon mic clip
• 2x WS81C - Fowm windscreen for reducing wind, sibilance and pop noise
• Aluminum road case

Specifications:

i5:

• Transducer: Dynamic VLM Type B
• Frequency Response: 50Hz - 16kHz
• Polar Pattern: Cardioid
• Output Impedance: 150ohms
• Sensitivity: 1.5 mV / Pa @ 1k
• Maximum SPL: ≥140 dB
• Off-Axis Rejection: ≥23 dB
• Power Requirements: None
• Materials / Finish: Die Cast Zinc Alloy/
  Black E-coat
• Weight: 250 g / 8.8 oz

D6:

• Transducer: Dynamic VLM Type E
• Frequency Response: 30Hz - 15kHz
• Polar Pattern: Cardioid
• Output Impedance: 280ohms
• Sensitivity: 0.8mV / Pa @ 80 Hz
• Maximum SPL: ≥144 dB
• Off-Axis Rejection: ≥20 dB
• Power Requirements: None
• Materials / Finish: Machined Alumi
  num / Black E-coat
• Weight: 255 g / 9 oz

ADX51:

• Transducer: Condenser
• Frequency Response: 40Hz - 18kHz
• Polar Pattern: Cardioid
• Output Impedance: 100ohms
• Sensitivity: 17 mV / Pa @ 1k
• Maximum SPL: ≥132 dB
• Off-Axis Rejection: ≥15 dB
• Power Requirements: 9 - 52V phantom
• Materials / Finish: Machined Brass /
  Black E-coat
• Weight: 150 g / 5.3 oz
