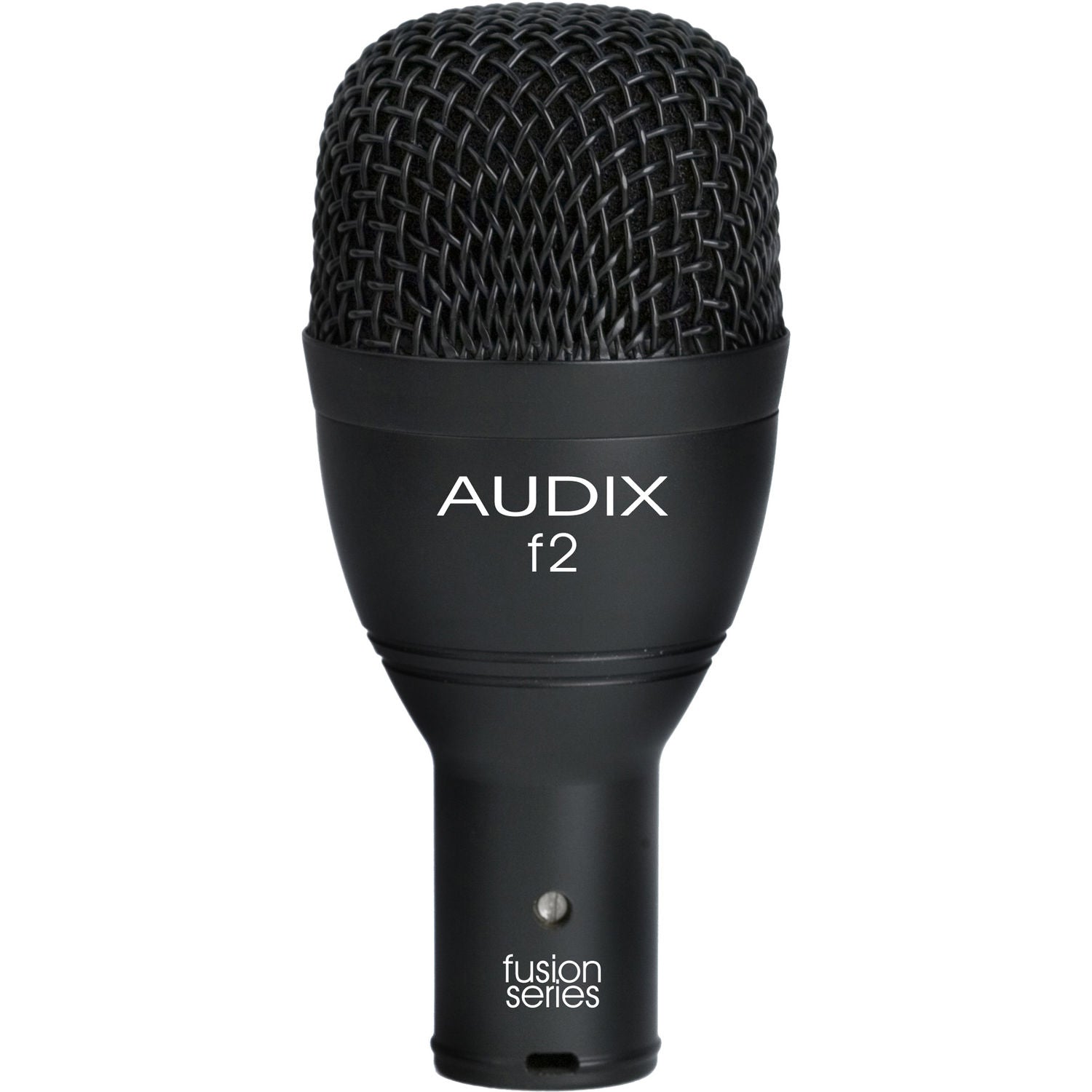

Audix f2 Fusion Series Dynamic Hypercardioid Instrument Microphone

Designed, assembled, and tested by Audix, the f2 is a dynamic instrument microphone used for stage and studio applications. The f2 is characterized by a hypercardioid pickup pattern for isolation and feedback control and is equipped with an LM™ (Low Mass) diaphragm for natural, accurate sound reproduction.

The f2 is compact and easy to position. With a wide frequency response of 52 Hz - 15 kHz and the ability to handle sound pressure levels of 139 dB, the f2 is an excellent choice for miking instruments with a percussive nature such as rack & floor toms, congas, saxophone, guitar cabinets, and brass.

The f2 is manufactured with a precision cast zinc alloy body, durable black E-coat finish, dent-resistant steel mesh grill, and gold-plated XLR connector. Transformerless design, low impedance, and balanced output allow for interference-free performance even with long cable runs.

Features:

• Affordable dynamic instrument microphone for live sound or home studio
• Full response with punchy mid-bass

Applications:

• Rack toms, floor tom, congas
• Guitar and bass cabinets
• Saxophone, brass, horns

Specifications:

Transducer Type: Dynamic

Freequency Response: 52Hz - 15kHz

Polar Pattern: Hypercardioid

Output Impedance: 580ohms

Sensitivity: 2 mV / Pa @ 1k

Capsule Technology: LM Type A

Off-Axis Rejection: >20 dB

Maximum SPL: ≥139 dB

Connector: 3-pin XLRm

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: Zinc Alloy / Black Finish

Weight: 247 g / 8 oz

Length: 104 mm / 4.09 in
