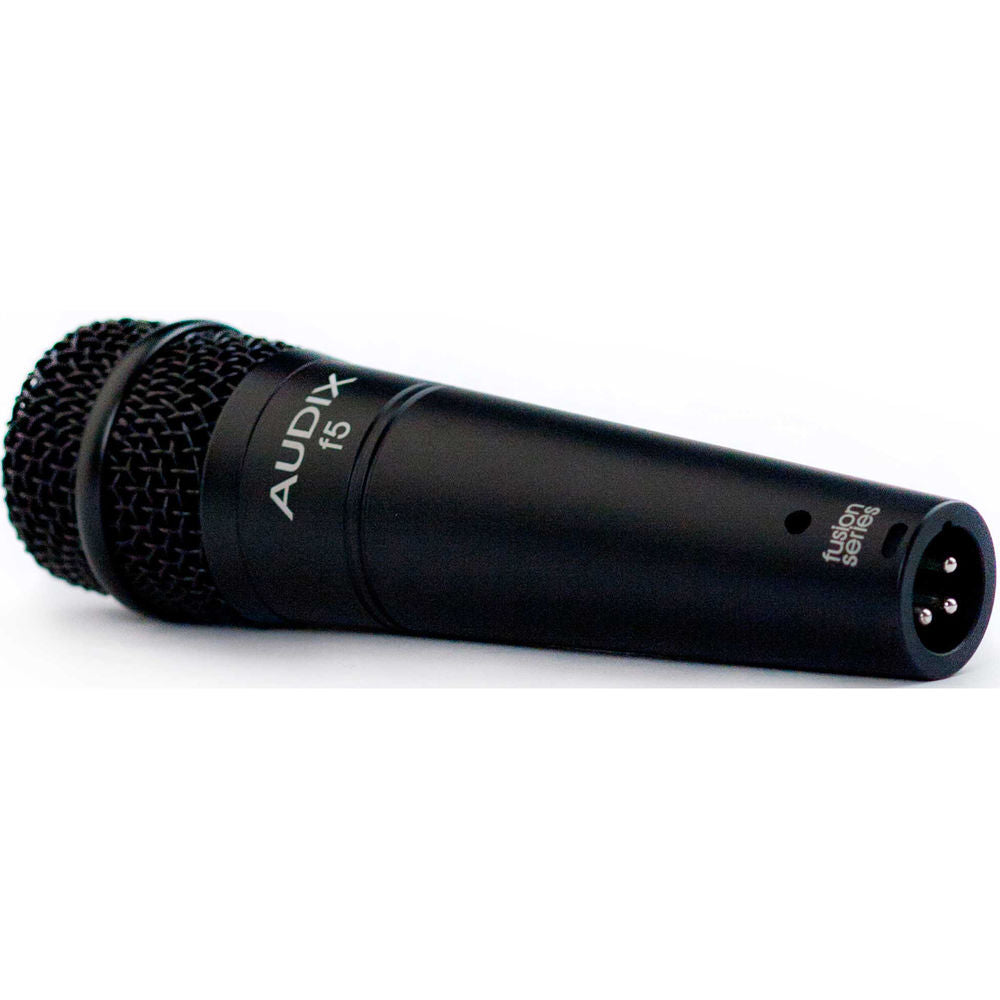

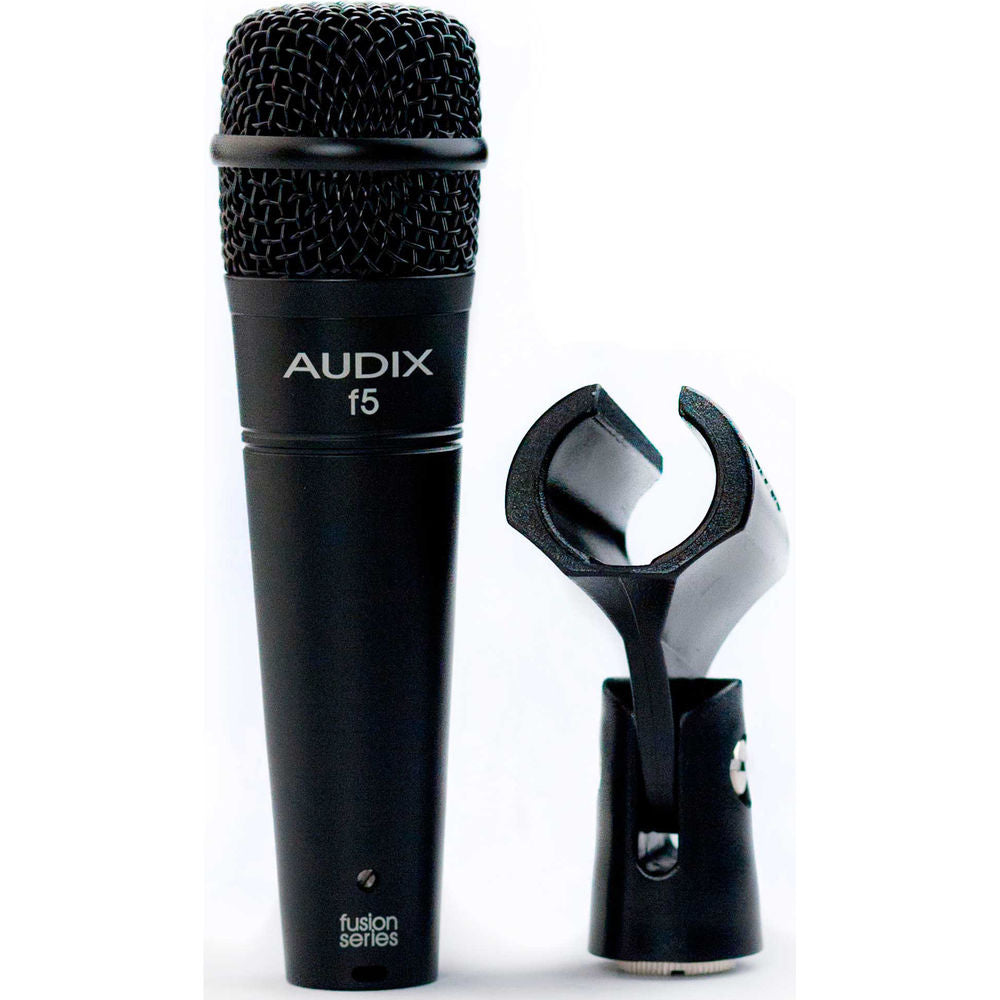

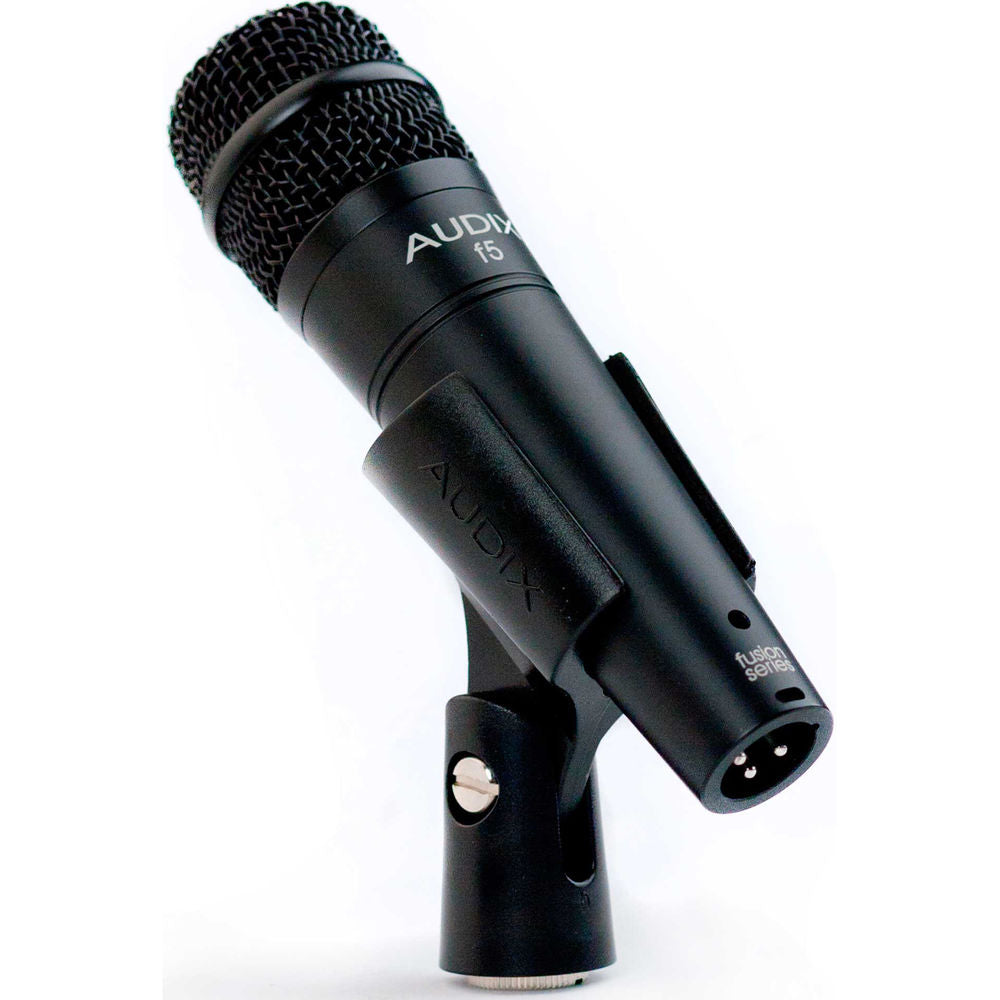

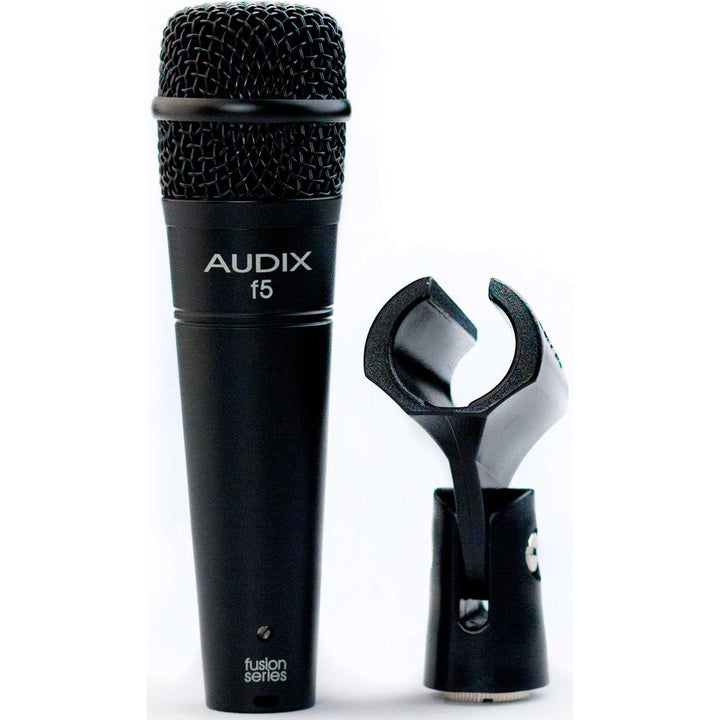

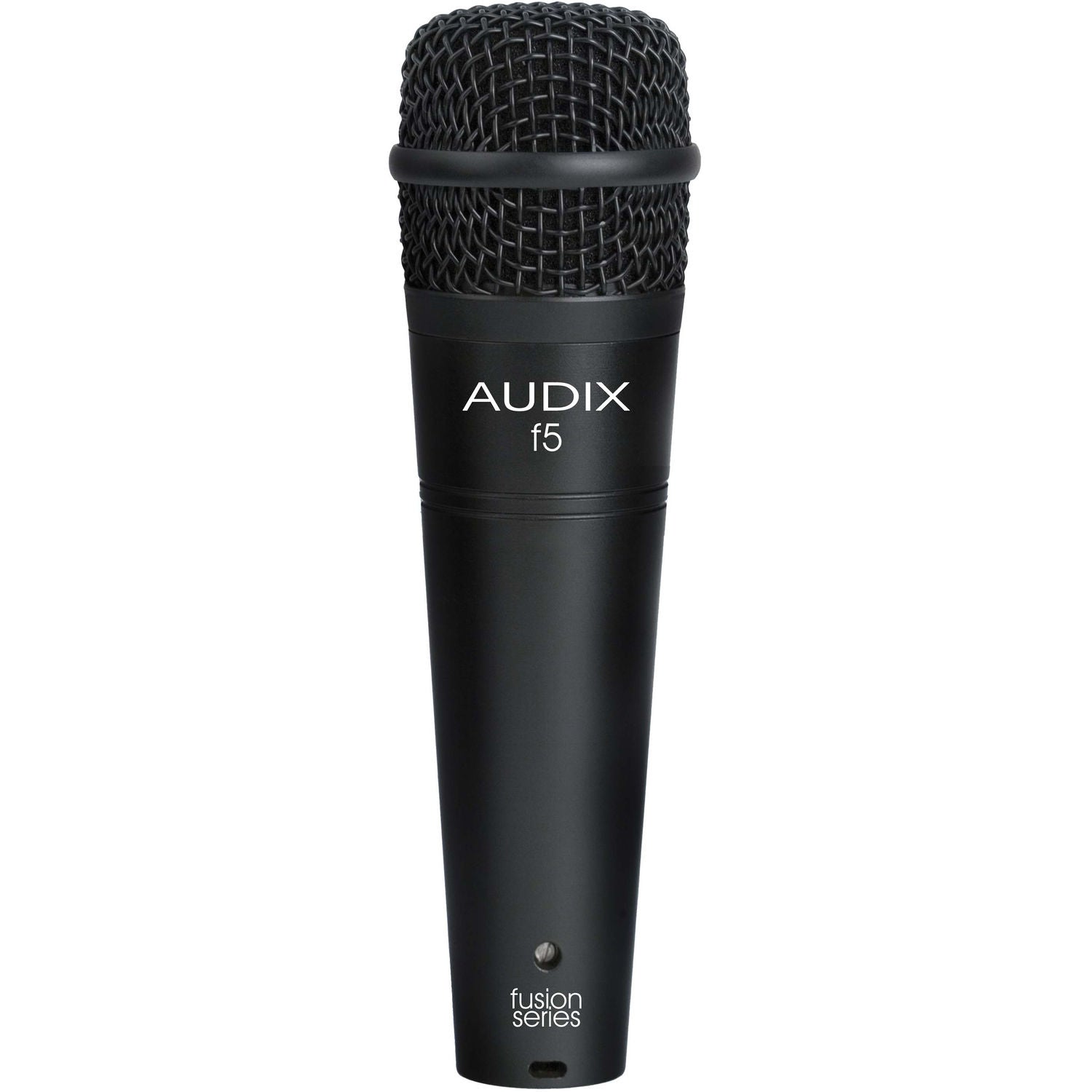

Audix f5 Fusion Series Hypercardioid Instrument Microphone
F5
Payment plans from Affirm, learn more
- Audix
- Shipping Calculated at checkout, most in stock products ship same day
Designed, assembled, and tested by Audix, the f5 is an all-purpose dynamic instrument microphone used for stage and studio applications. The f5 is able to handle sound pressure levels in excess of 137 dB without distortion and can be used to mic a wide variety of musical instruments, guitar and bass cabinets, vocals, and speech.
The f5 is characterized by a hypercardioid pickup pattern for isolation and feedback control and is equipped with a LM™ (Low Mass) diaphragm for natural, accurate sound reproduction.
The f5 is sturdy, compact, and easy to position. With a wide frequency response of 55 Hz – 15 kHz, the f5 provides clear, accurate, natural sound reproduction without having to rely on EQ. The f5 is manufactured with a precision cast zinc alloy body, dent-resistant steel mesh grill, durable black E-coat finish, and gold-plated XLR connector.
Features:
- Affordable all-purpose instrument mic for live sound or home studio
- Clear and accurate sound with wide frequency response
Applications:
- Live stage, studio
- Snare, toms, percussion
- Guitar and bass cabinets, electric instruments
- Brass, flute, woodwinds
- Acoustic instruments
- Vocals, speech
Specifications:
- Transducer Type: Dynamic
- Frequency Response: 55Hz - 15kHz
- Polar Pattern: Hypercardioid
- Output Impedance: 580ohms
- Sensitivity: 2.2 mV / Pa @ 1k
- Capsule Technology: LM Type A
- Off-Axis Rejection: >20 dB
- Maximum SPL: ≥137 dB
- Connector: 3-pin XLRm
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector
- Materials / Finish: Zinc Alloy / Black Finish
- Weight: 283 g / 10 oz
- Length: 145 mm / 5.7 in
