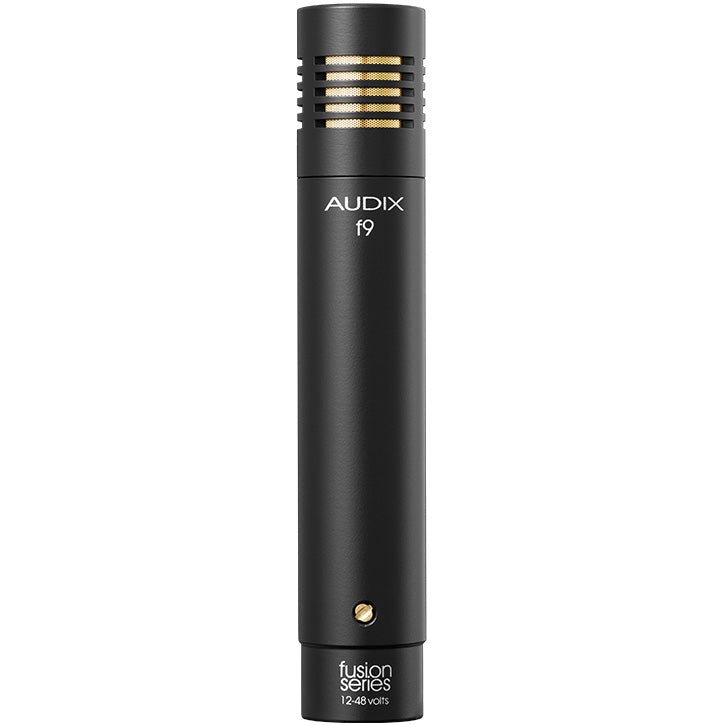

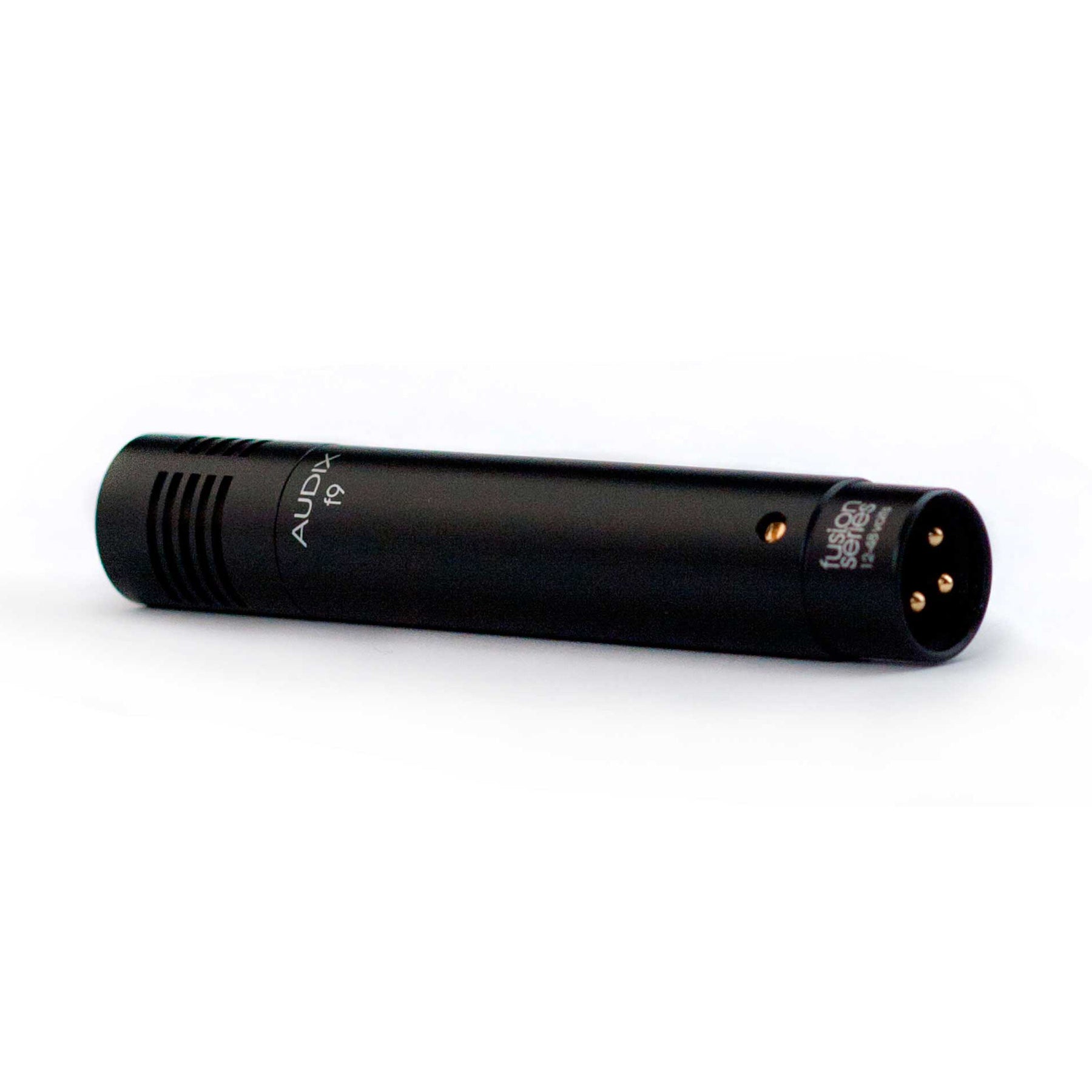

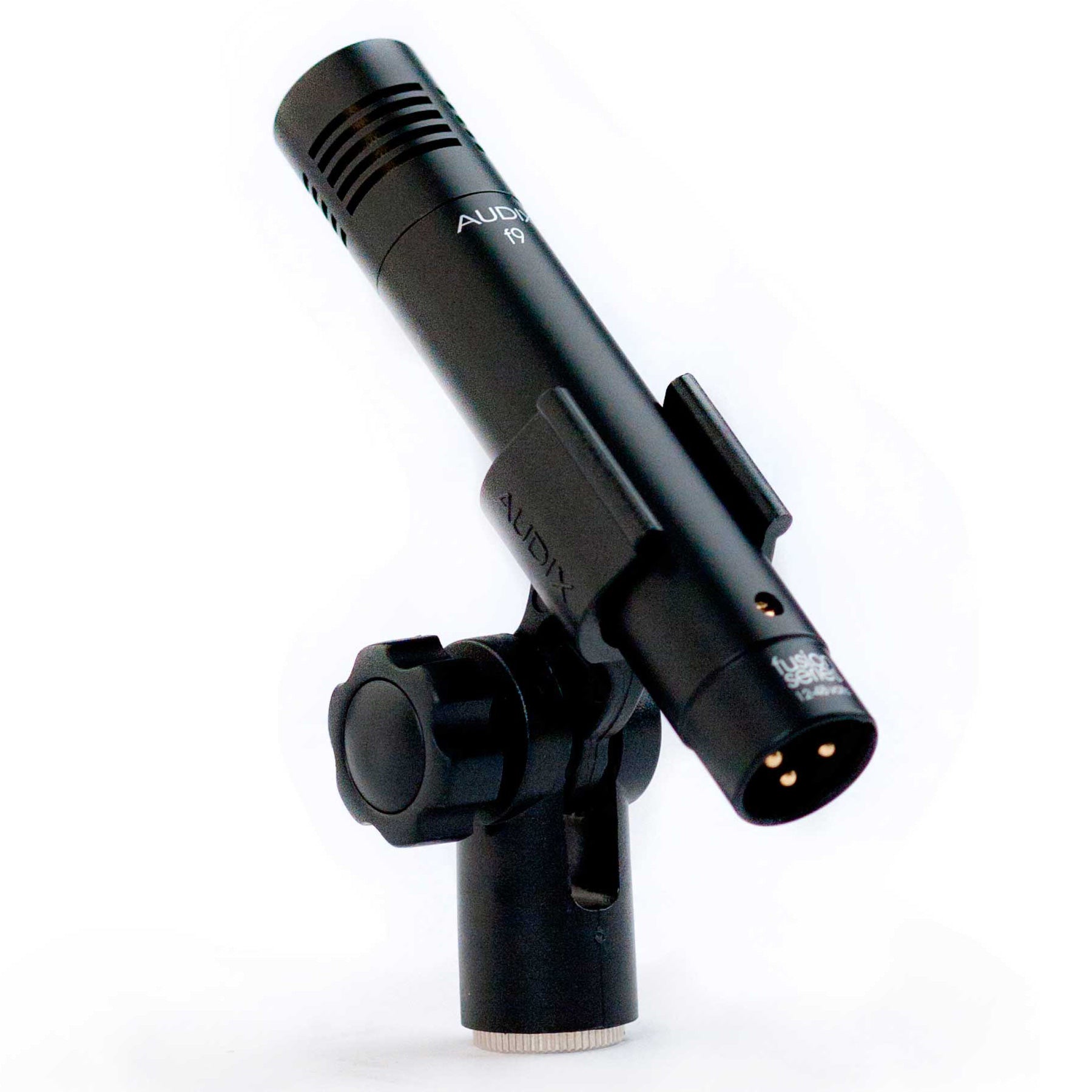

Audix f9 Fusion Series Pencil Condenser Instrument Microphone
F9-ADX
Regular price$199.00
Available to Order
Available from supplier Audix — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Audix
- Shipping Calculated at checkout, most in stock products ship same day
This f9 all-purpose pencil condenser microphone is suited for instruments requiring detailed reproduction in mid-high and extended high-end frequency ranges in live and studio applications. A wide cardioid pick-up pattern paired with high sensitivity allows close, overhead, and distance miking.
With its low impedance and balanced output, the f9 instrument condenser microphone has an interference-free performance. This microphone operates on phantom power of 12-48 V.
Specifications:
- Transducer Type: Pre-Polarized Condenser
- Frequency Response: 40 Hz – 20 kHz
- Polar Pattern: Cardioid
- Output Impedance: 200 ohms
- Sensitivity: 8 mV / Pa @ 1k
- Capsule Technology: Gold Vapor Deposition
- Equivalent Noise Level: 25 dB (A-weighted)
- Signal to Noise Ratio: 69 dB
- Off-Axis Rejection: >24 dB
- Maximum SPL: ≥137 dB
- Power Requirements: 12-48 V Phantom
- Dynamic Range: 112 dB
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish: Zinc Alloy / Black Finish
- Weight: 95 g / 3.3 oz
- Length: 111 mm / 4.37 in
