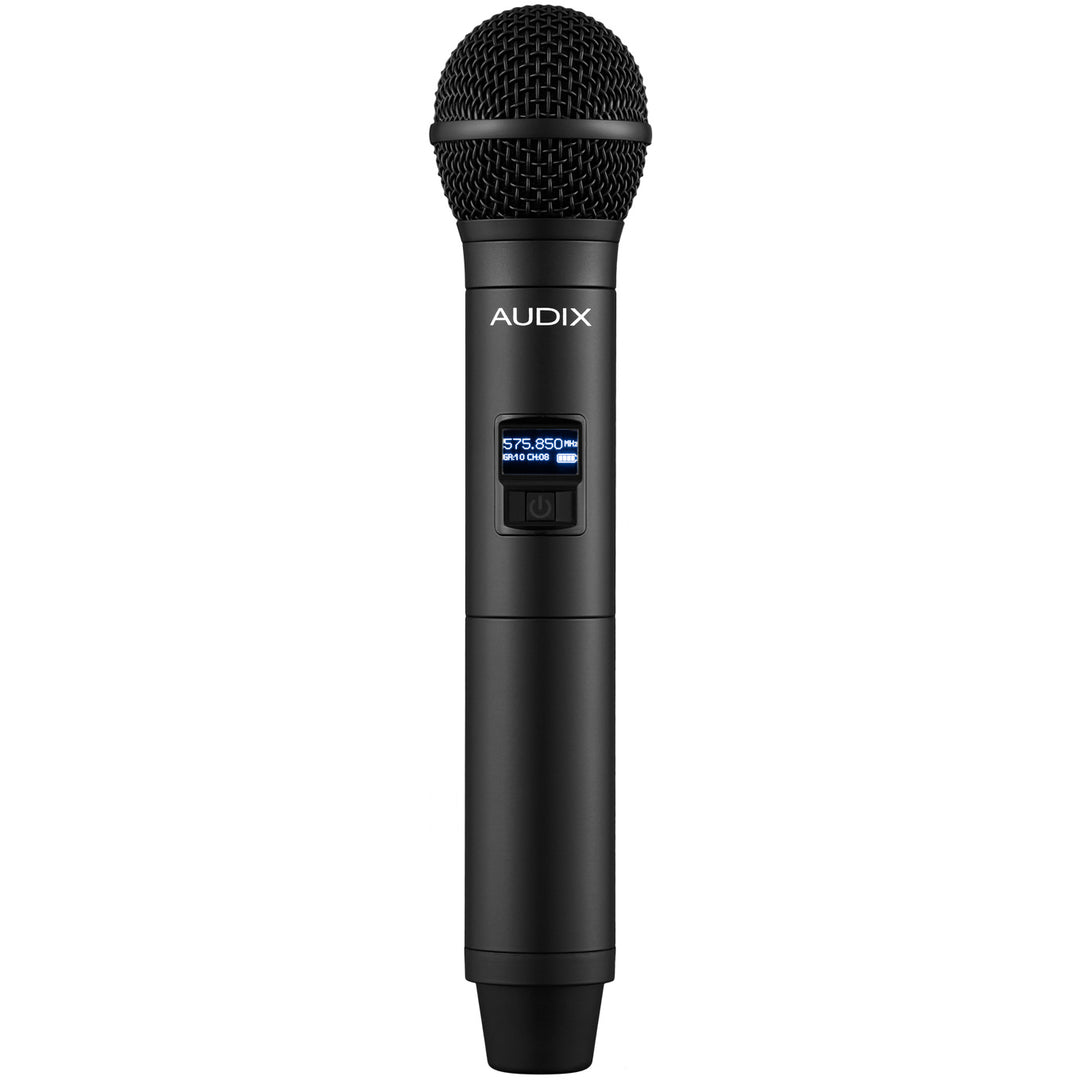

Audix H60 OM5 Handheld Transmitter for Wireless Microphone System
H60OM5
Payment plans from Affirm, learn more
- Audix
- Shipping Calculated at checkout, most in stock products ship same day
The Audix H60 OM5 is a Performance Series handheld microphone transmitter with an OM5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, as well as live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 48 Hz to 19 kHz frequency response with a slight high-frequency rise, and a high maximum SPL of approximately 144 dB.
A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
Features:
- 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
- High-contrast LCD shows group, channel, frequency, and battery status
- Durable tour-worthy metal housing
- Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
- Convenient soft mute button for quick on/off switching
- Two supplied AA batteries provide up to 14 hours of run time
- Selectable 10/30mW RF power outputThree selectable gain settings—0 dB, -6 dB, and -12 dB
- Dent-resistant steel mesh grille
- Includes mic clip and pouch
Specifications:
Type: Dynamic
Polar Pattern: Hyppercardioid
Capsule: VLM Type C
Maximum SPL: ≥144 dB
Impedance: 200 Ohms
Sensitivity: 2 mV/Pa at 1 kHz
Off-Axis Performance: Rejection >30 dB
RF Power Output: 10/30 mW
Bandwidth: 64MHz
Gain Adjustment: 0 dB, -6 dB, -12 dB
Battery Life: Approximately 14 hours
Current Consumption: 110 mA typical
Power Requirement: 2 x AA 1.5V batteries
Dimensions: 2.1 x 10.4" / 53 x 265 mm
Weight: 11 oz / 312 g without batteries
