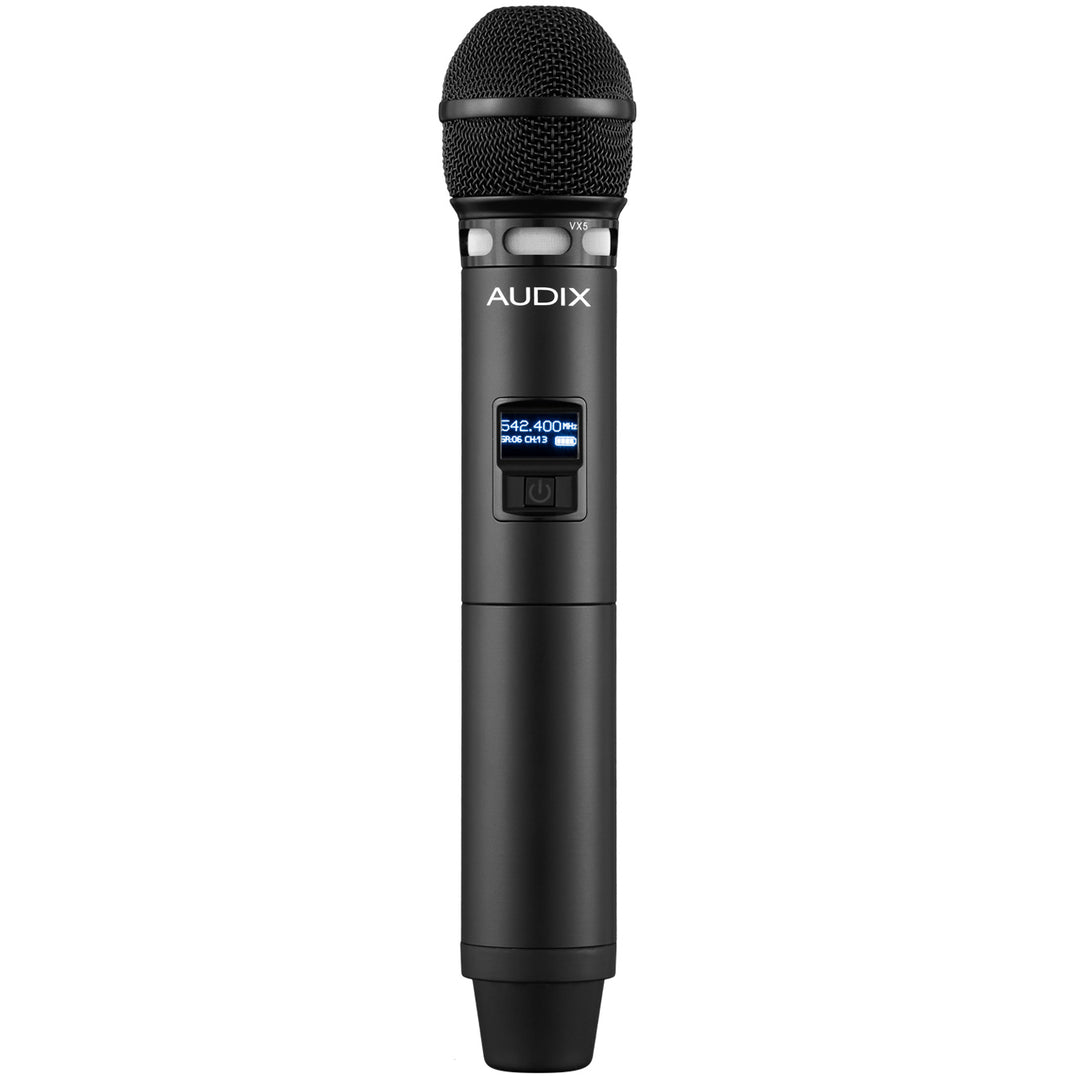

Audix H60 VX5 Handheld Transmitter for Wireless Microphone System
H60VX5
Payment plans from Affirm, learn more
- Audix
- Shipping Calculated at checkout, most in stock products ship same day
The Audix H60 VX5 is a Performance Series handheld microphone transmitter with VX5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The supercardioid condenser capsule yields enhanced off-axis rejection, a 40 Hz to 16.5 kHz frequency response, and a high maximum SPL of approximately 140 dB.
A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30 mW RF output power. Two supplied AA batteries power the H60 VX5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
Features:
- 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
- High-contrast LCD shows group, channel, frequency, and battery status
- Durable tour-worthy metal housing
- Convenient soft mute button for quick on/off switching
- Two supplied AA batteries provide up to 14 hours of run time
- Selectable 10/30mW RF power output
- Three selectable gain settings—0 dB, -6 dB, and -12 dB
- Dent-resistant steel mesh grille
- Includes mic clip and pouch
Specifications:
- Type: Condenser
- Polar Pattern: Supercardioid
- Frequency Response: 40 Hz to 16.5 kHz
- Maximum SPL: ≥140 dB
- Impedance: 150 Ohms
- Sensitivity: 5 mV/Pa at 1 kHz
- Off-Axis Performance Rejection: >20 dB
- Equivalent Noise Level: 26 dBA
- Signal-to-Noise Ratio: 68 dB
- RF Power Output: 10/30 mW
- Bandwidth: 64 MHz
- Gain Adjustment: 0 dB, -6 dB, -12 dB
- Battery Life: Approximately 14 hours
- Current Consumption: 110 mA typical
- Power Requirement: 2 x AA 1.5 V batteries
- Dimensions (Diam. x L): 2.1 x 10.4" / 53 x 265 mm
- Weight: 11 oz / 312 g without batteries
