Audix M3 Series Microphone & Interface Kit for DANTE AES67 Integrated System - White

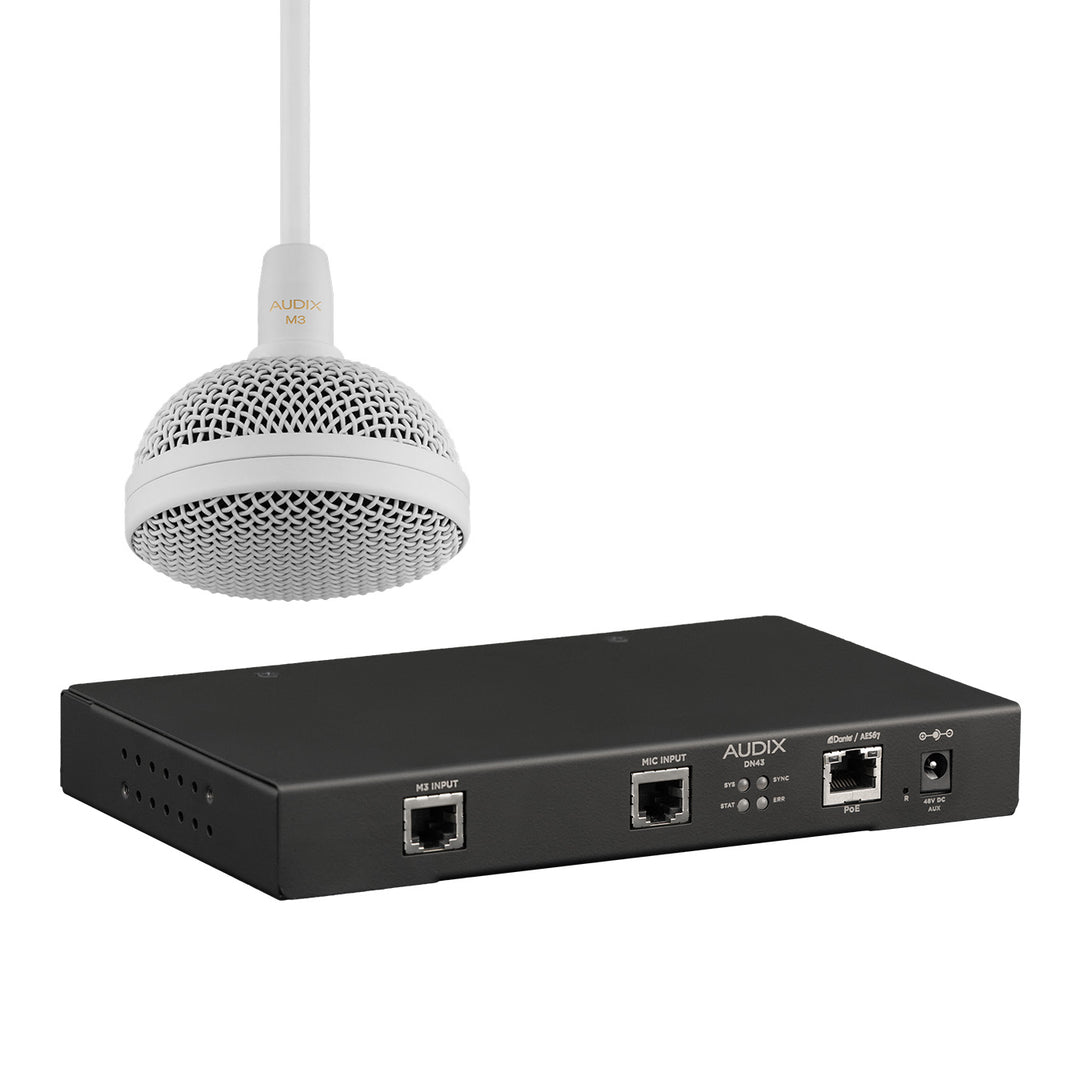

The white M3WDK Tri-Element Hanging Ceiling Microphone Kit from Audix includes the Audix M3 hanging ceiling microphone, the Audix DN4 Dante AES67 microphone interface, a 3' plenum-rated cable, and two seismic and fire cable restraints. It can be used to stream Audix audio performances through Ethernet networks for zone capture, video conferencing, distance learning, hospital and medical procedures, courtroom, and ambient room miking applications.

The M3 is an innovative, tri-element hanging microphone designed forapplications where aesthetics, sound quality, and ease of installation are critical. The frequency response and polar pattern of its three phase-coherent hypercardioid capsules are tailored for voice clarity and rejection of extraneous noise. Gold diaphragm condenser capsules deliver studio-quality sound.

The Audix DN43 interface features one microphone port engineered exclusively for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element analog microphones. Each channel has selectable, independently controlled pre-amp gain, as well as low- and high-pass filters. It features balanced audio inputs with RFI filtering and delivers high-fidelity 24-bit, 48 kHz audio.

The DN43 Dante AES67 Integrated Microphone System Interface from Audix is the heart of a microphone system that offers audio performance through Ethernet networks. It can be used to provide microphone functions including on-off contact closure and LED status indicators for meeting rooms, convention centers, educational facilities, and houses of worship through a single Cat 5 - Cat 7 cable with RJ45 connections.

The DN43 interface features one port for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element microphones. The configuration eliminates wiring errors and accelerates installation. In addition, all Audix RJ45-equipped microphone gain structures are optimized for their intended placement, which provides quality audio at the DSP. The result is true plug-and-play installation.

Furthermore, the interface is equipped with two 5V logic outputs per port and source/sink capability for LEDs that are controlled by network-connected DSPs. Low-pass and high-pass filter settings are available for each audio channel as well as eight selectable gain levels with all settings configurable via software.

Dante Features

• Supports AES67 audio streams
• Dante Domain Manager (DDM) ready
• Dynamic or static IP address
• Evaluated to the requirement of UL2043 and is suitable for use in above-ceiling applications

Power Features

• PoE from any IEEE 802.3af compliant equipment

Connectivity

• Two 5V logic outputs per port, with source/sink capability for LEDs controlled by network-connected DSPs
• One logic input per single-element microphone port for buttons

Specifications:

• Mic Input: Balanced, RFI Filtered
  1 x Tri-Element Mic Port, 1 x RJ45 Port
• Mic Input Connector: Shielded 8P8C, RJ45
• Phantom Power: 48 VDC, 14 mA/Port (Short-Circuit Protected)
• Max Input: -14 dBu, 155 mV (0 dB Gain)
• Input Impedance: 1.15 kOhms (Balanced)
• Frequency Response: 15 Hz to 22 kHz, +0, -3 dB
• THD+N: 0.003% (1 kHz, 0 dB Gain)
• CMRR: 50 dB
• EIN: -120 dBu (Unweighted)
• SNR: -96 dB (Unweighted)
• Channel Crosstalk: <-80 dB (1 kHz)
• Dante / AES67 Channels: 4
• Chipset: Dante: UXT-01-004
• Sample Rate: 48 kHz
• Word Width: 24-Bit
• Logic Input:
  • Logic Inputs Per Port: 1 x Per Single-Element Microphone Port
  • Logic Outputs Per Port: 2 x
• Low-Pass Frequency: Off, 5 kHz, 7 kHz, 10 kHz
• High-Pass Filter: 15 Hz, 238 Hz
• Gain Options: 0 / +8 / +12 / +15 / +18 / +24 / 30 / and +36 dB
• Power: External DC Jack: +48 VDC, 125 mA
  PoE (IEEE 802.3af: Class 2 (3.84 to 6.49 W)
• Temperature (Operating): 50 to 122°F / 10 to 50°C
• Dimensions: 1.1 x 8.0 x 4.9" / 2.8 x 20.2 x 12.5 cm
• Weight: 1.39lb é 0.63kg

The white M3 Tri-Element Hanging Ceiling Microphone with 4' Cable from Audix is an audio capture solution designed for applications where aesthetics, sound quality, and ease of installation are critical. The M3 incorporates three phase-coherent hypercardioid capsules with tailored frequency responses optimized for speech intelligibility. It minimizes frequencies caused by noise, vibration, paper shuffling, fans, and air conditioning. A shielded, silicone-jacket microphone cable ensures a balanced signal and a very clean look.

Furthermore, the electronics above the ceiling are housed in a plenum-rated junction box and cable connections are made via an RJ45 connector. Installation requires drilling a single 5/8" hole in the ceiling. Finally, the M3 mounting hardware adjusts the cable hanging height up to four feet from the ceiling surface without removing ceiling tiles.

• 100% RF shielding and immunity
• Gold-diaphragm condenser capsules with studio-quality sound
• Low-impedance design allows for extremely long cable runs (if required) without cross talk or interference
• Frequency and pattern tailored for voice clarity and rejection of extraneous noise
• Evenly dispersed sound with undetectable phase
• High-quality silicone jacketed microphone cable with adjustable length and position
• Plenum-rated junction box with RJ45 connector
• All visible components of the microphone and cable are the same color
• TAA compliant
• Very high output, low self-noise
• Easy to install

Specifications:

Polar Pattern: Hypercardioid

Element Type: Electret Condenser

Frequency Response: 30 Hz to 19 kHz

Maximum SPL: 128 dB

Analog Output: 1x RJ45 (on Attached Cable)
1x Block 3-Pin (with Included Adapter)

Power Sources: 18 to 52V Phantom Power

Sound Field: Mono

Orientation: End Address

Circuitry: Solid-State

Off-Axis Rejection:

• >23 dB at 180° (1 Capsule)
• >18 dB at 120° (2 Capsules)
• >9 dB at 60° (3 Capsules)

Sensitivity: 34 mV/Pa (at 1 kHz)

Dynamic Range: 106dB

Equivalent Noise Level: 22dB A-weighted

Cable Length: 4' / 1.2m

Weight: 3.4oz / 95g
