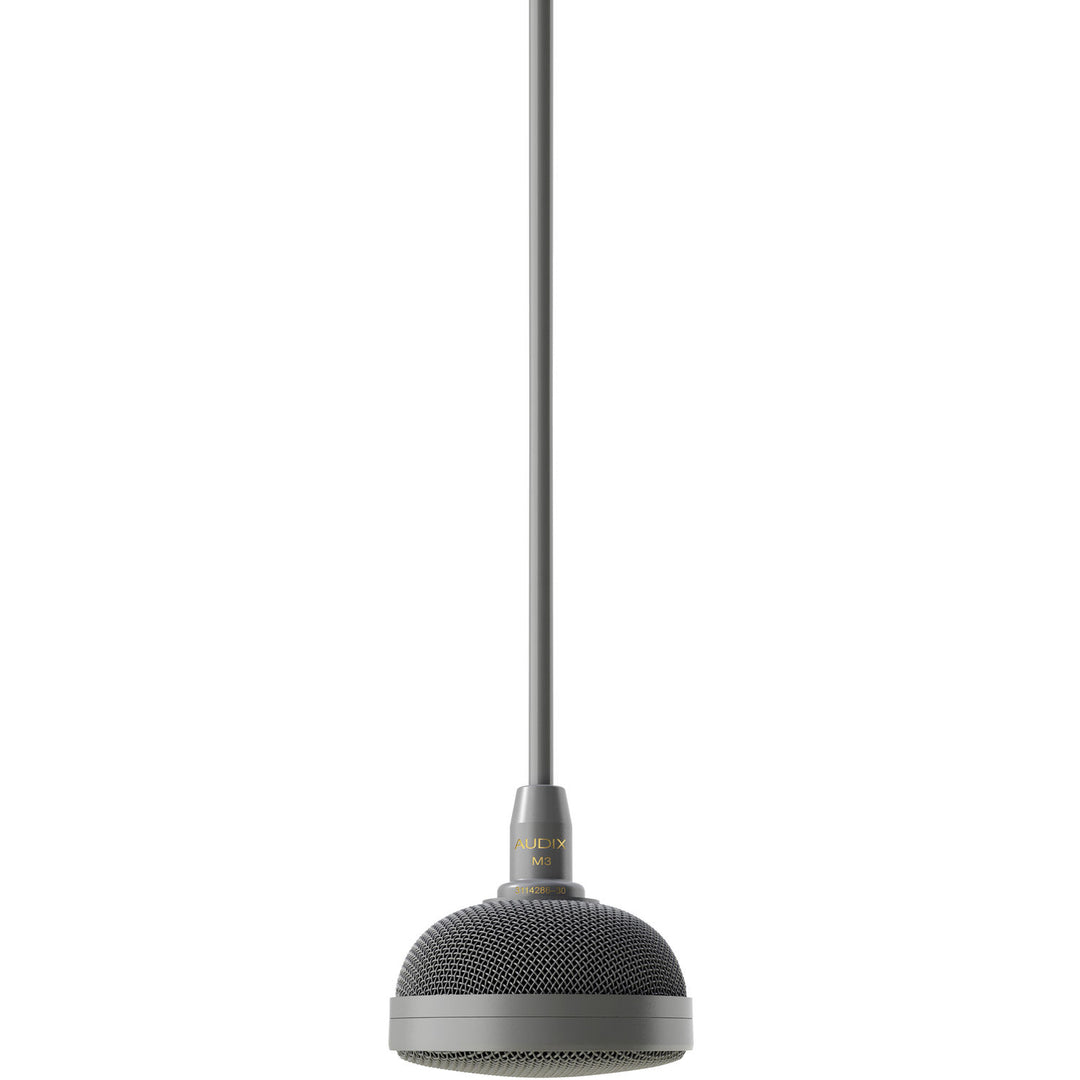

Audix M3 Series Tri-Element Hanging Ceiling Microphone - Grey w/ 4’ Cable

The M3 is an innovative, tri-element hanging ceiling microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The M3 is an ideal audio capture solution for video conferencing, distance learning, courtroom activities, and surgical procedures. It can also be used for ambient room miking and surveillance.

The M3 ceiling microphone incorporates three phase-coherent hypercardioid capsules with tailored frequency response optimized for speech intelligibility. This is accomplished by minimizing frequencies caused by noise, vibration, paper shuffling, keyboard strokes, fans, and heating /air conditioning. Low noise preamp circuitry is employed for the highest possible signal to noise and studio-quality sound. A high-quality silicone jacketed microphone cable ensures a balanced, shielded signal and a very clean look. Electronics above the ceiling are housed within a plenum-rated junction box and cable connections are made via an RJ45 connector embedded within a proprietary brass housing for an airtight seal.

Features

• 100% RF shielding and immunity
• Gold diaphragm condenser capsules with studio-quality sound
• Low impedance design allows for extremely long cable runs (if required) without cross-talk or interference
• Frequency and pattern tailored for voice clarity and rejection of extraneous noise
• Evenly dispersed sound with undetectable phase
• High-quality silicone jacketed microphone cable with adjustable length and position
• Plenum-rated junction box with RJ45 connector
• All visible components of the microphone and cable are the same color
• TAA compliant
• Very high output, low self-noise
• Easy to install

Specifications:

• Transducer Type: Pre-Polatized Condenser
• Frequency Response: 30Hz to 19kHz
• Optimized Response: 70Hz - 9kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 150ohms balanced
• Sensitivity: 34 mV / Pa @ 1k
• Off-Axis Rejection:
  • 1 capsule: >23 dB at 180º relative to 0º
    2 capsules: >18 dB at 120º
    3 capsules: >9 dB at 60º
• Signal-to-Noise Ratio: 72dB (A-Weighted)
• Equivalent Noise Level: 22dB (A-Weighted)
• Maximum SPL: ≥128 dB @ .5% THD
• Dynamic Range: 106dB
• Power Requirements: 18 - 52 V Phantom Power
• Cable/Connector: Terminal block or XLR
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
• Dimensions (Dial. x L): 2" (50.8 mm) x 1.2" (30.48 mm)
• Weight (Mic only): 0.21 lbs (0.10 kg)
