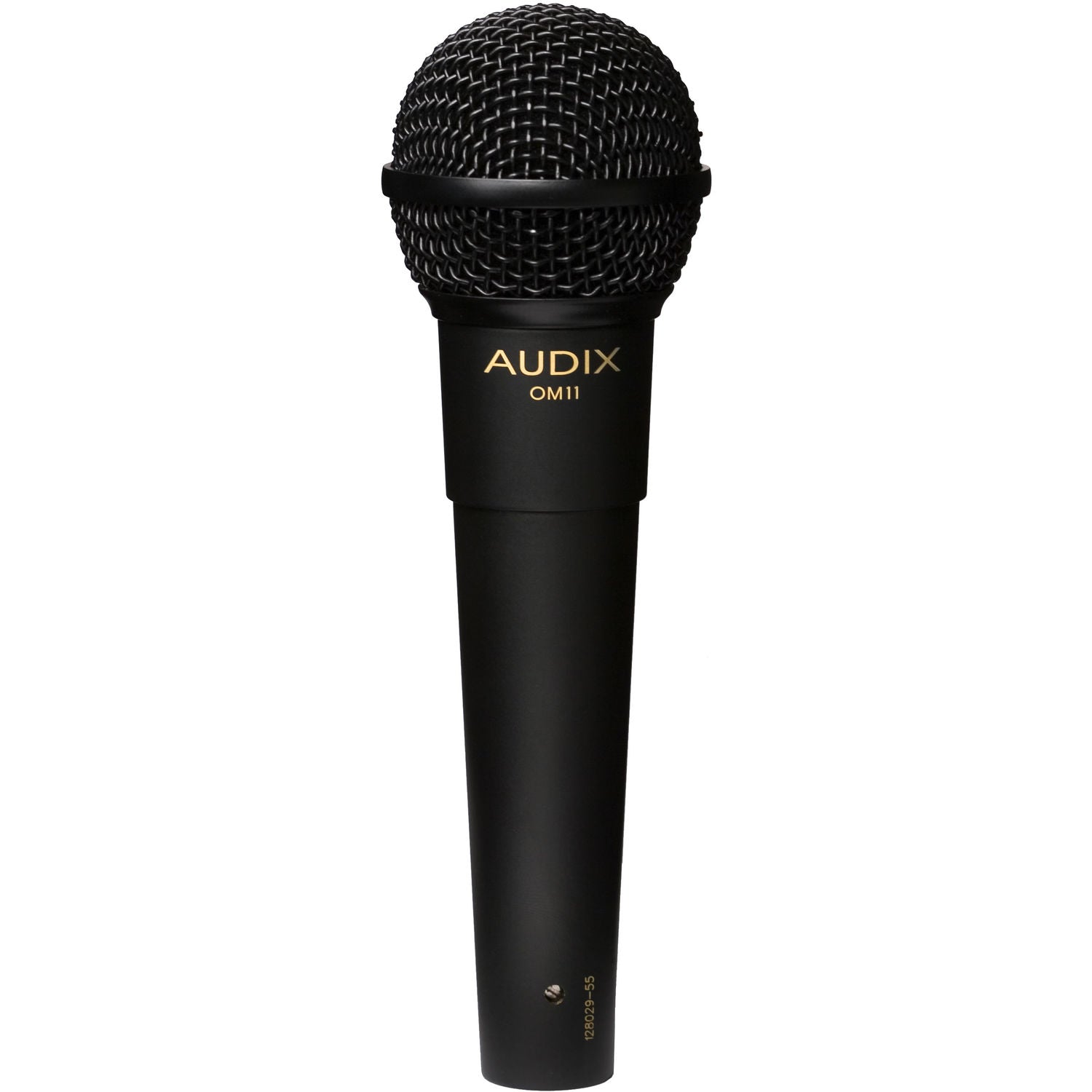

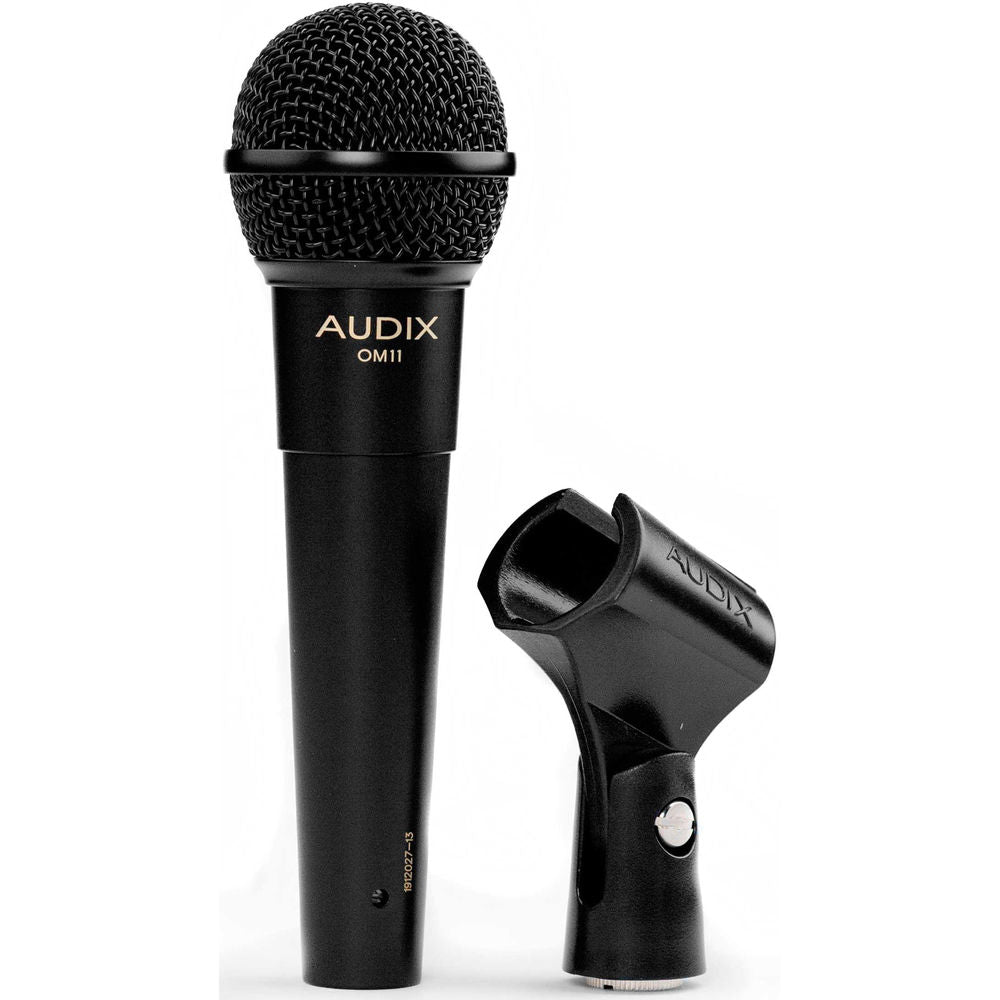

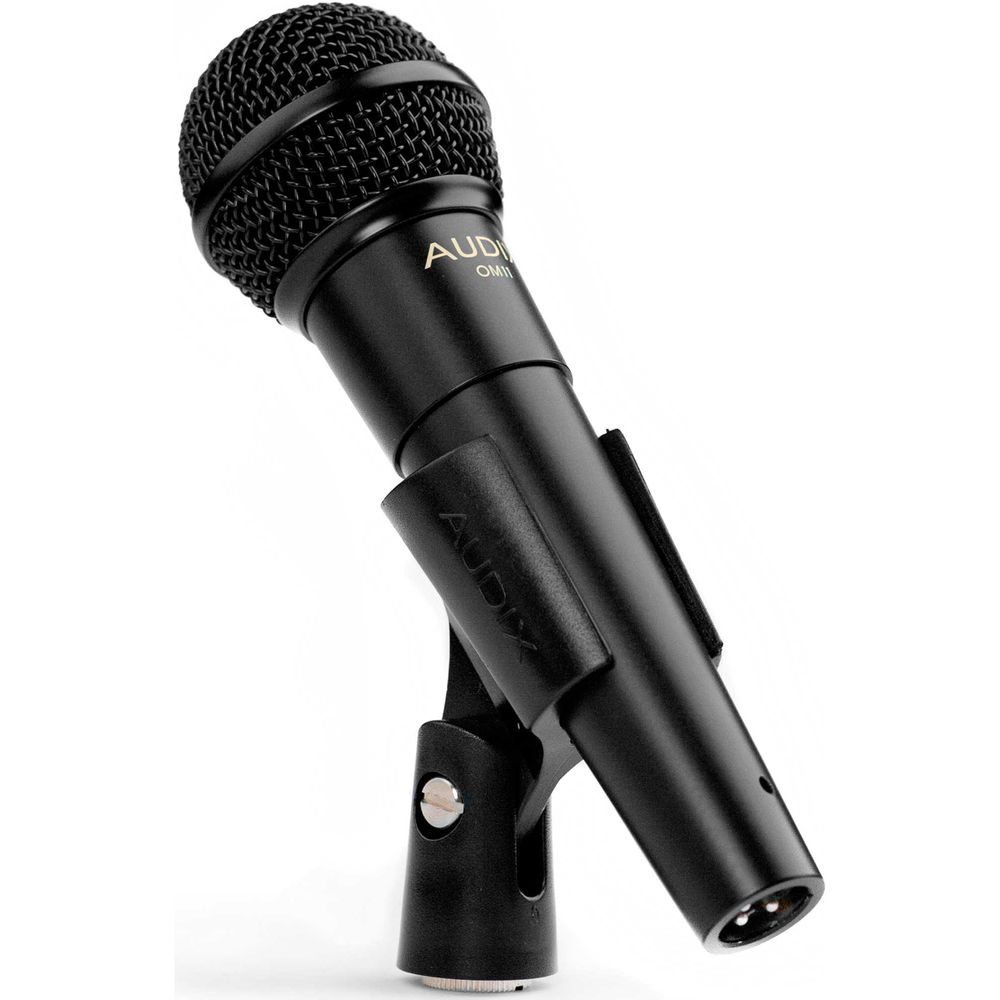

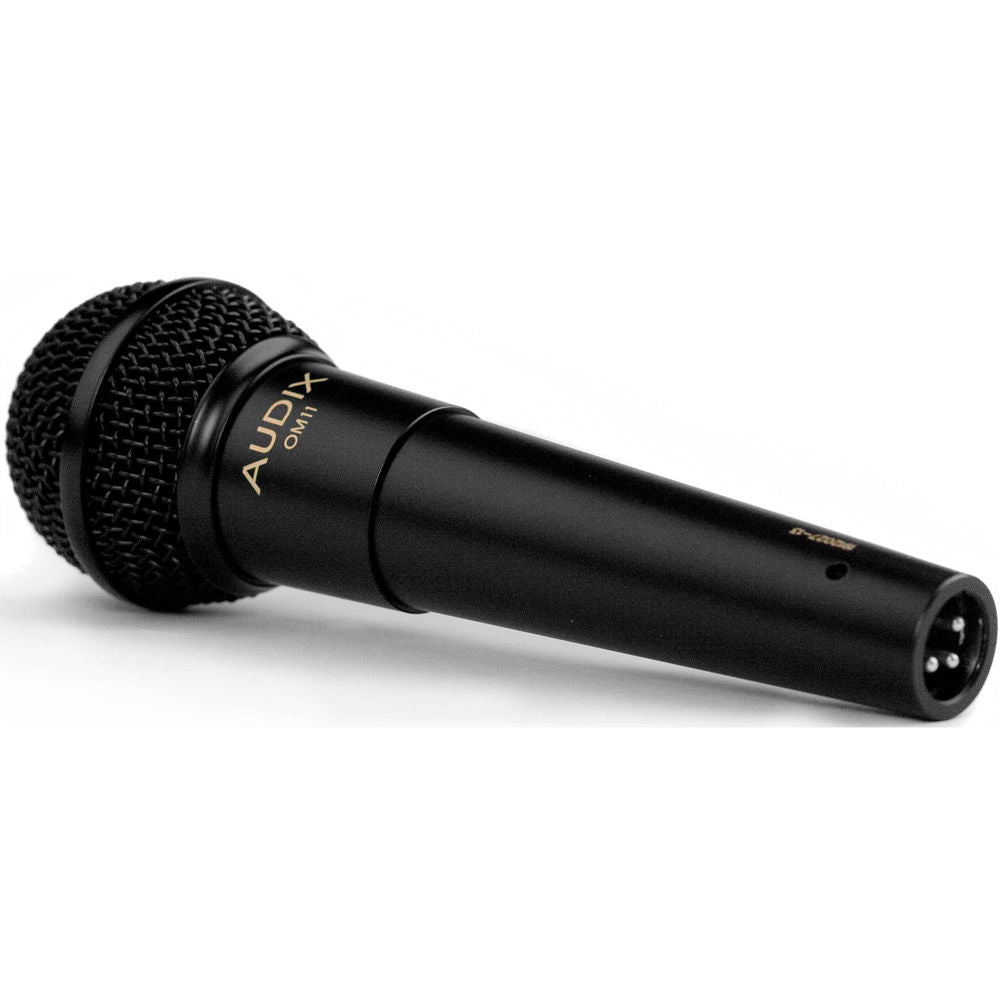

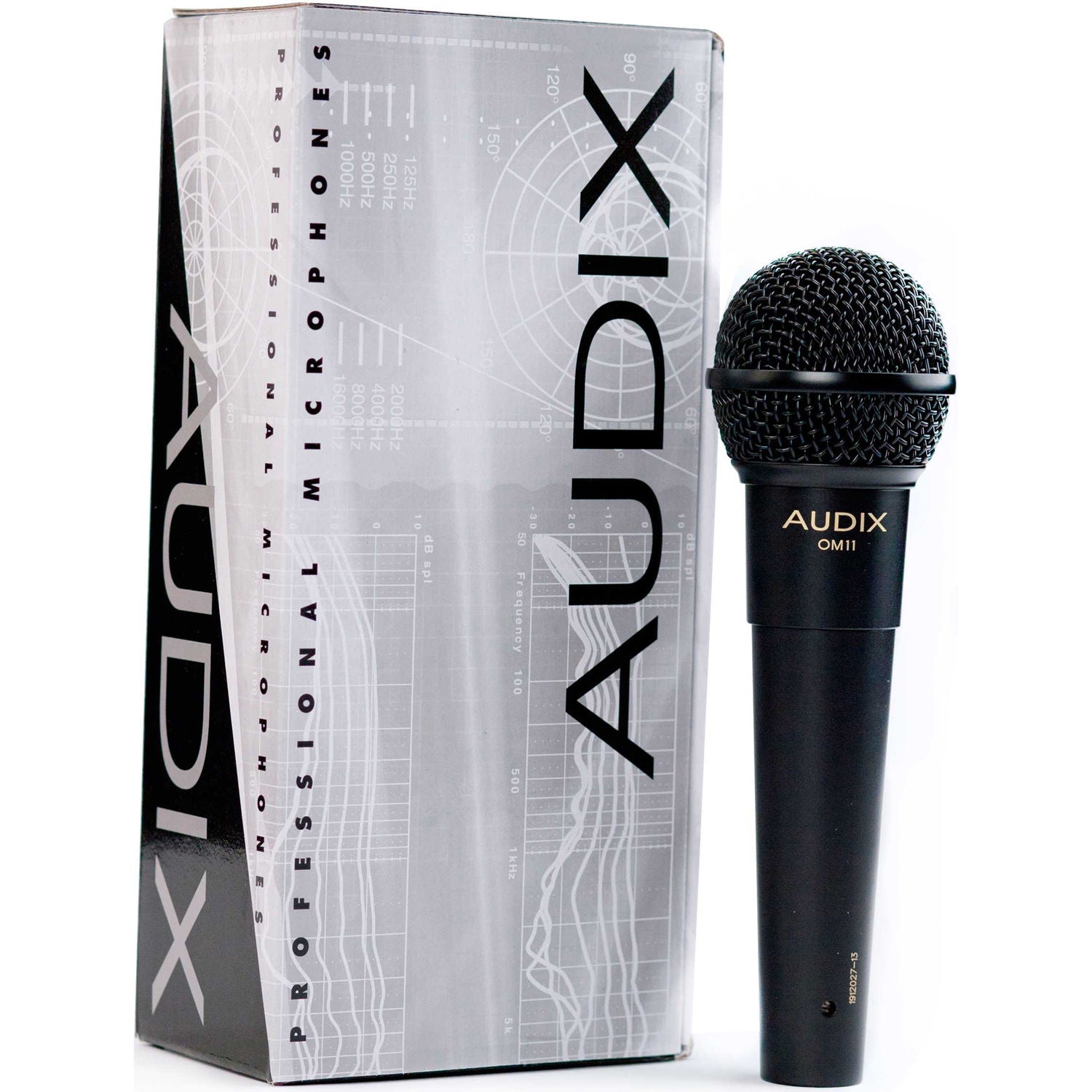

Audix OM11 Handheld Hypercardioid Dynamic Microphone

The OM11 is a re-issue of the original OM1, a hand-made microphone first issued in 1985. Designed, assembled, machined and tested by Audix, the OM11 is a dynamic vocal microphone used for a wide variety of live, studio, and broadcast applications. The OM11 is known for its sharp, crisp vocal sound, resistance to feedback and ability to handle high sound pressure levels without distortion. The OM11 is characterized with a tight and uniformly controlled hypercardioid polar pattern which helps to isolate the vocals from the rest of the instruments on stage. With a wide frequency range of 50 Hz - 18 kHz, the OM11 employs a VLM™(Very Low Mass) diaphragm for a very clean and natural sound with exceptional transient response.

The OM11 response is tailored to cut through the mix, providing presence and articulation to the vocals even at very high stage volumes. In addition to having extremely low handling noise, the OM11 is well balanced, comfortable to hold, durable and manufactured with very high standards and tight tolerances. Roadworthy construction includes a two stage machined brass body, durable black e-coat finish, dent resistent steel mesh grill and gold plated XLR connector.

Features:

• Concert level, professional vocal mic for live sound, broadcast and studio
• Clear, accurate vocal sound that cuts through the mix
• Precision machined brass construction
• Extremely low handling noise
• Handles exceptionally high SPLs without distortion
• VLM Capsule

Applications:

• Lead or backing vocals
• Live recording
• Broadcast
• Home studio - vocal and instrument

Specifications:

Transducer Type: Dynamic

Frequency Response: 50Hz - 18kHz

Polar Pattern: Hypercardioid

Ouput Impedance: 200ohms

Sensitivity: 1.9 mV / Pa @ 1k

Capsule Technology: VLM Type C

Off-Axis Rejection: >30 dB

Maximum SPL: ≥140 dB

Connector: 3-pin XLRm

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: Zinc Alloy / Black Finish

Weight: 370 g / 13 oz

Length: 179 mm / 7 in
