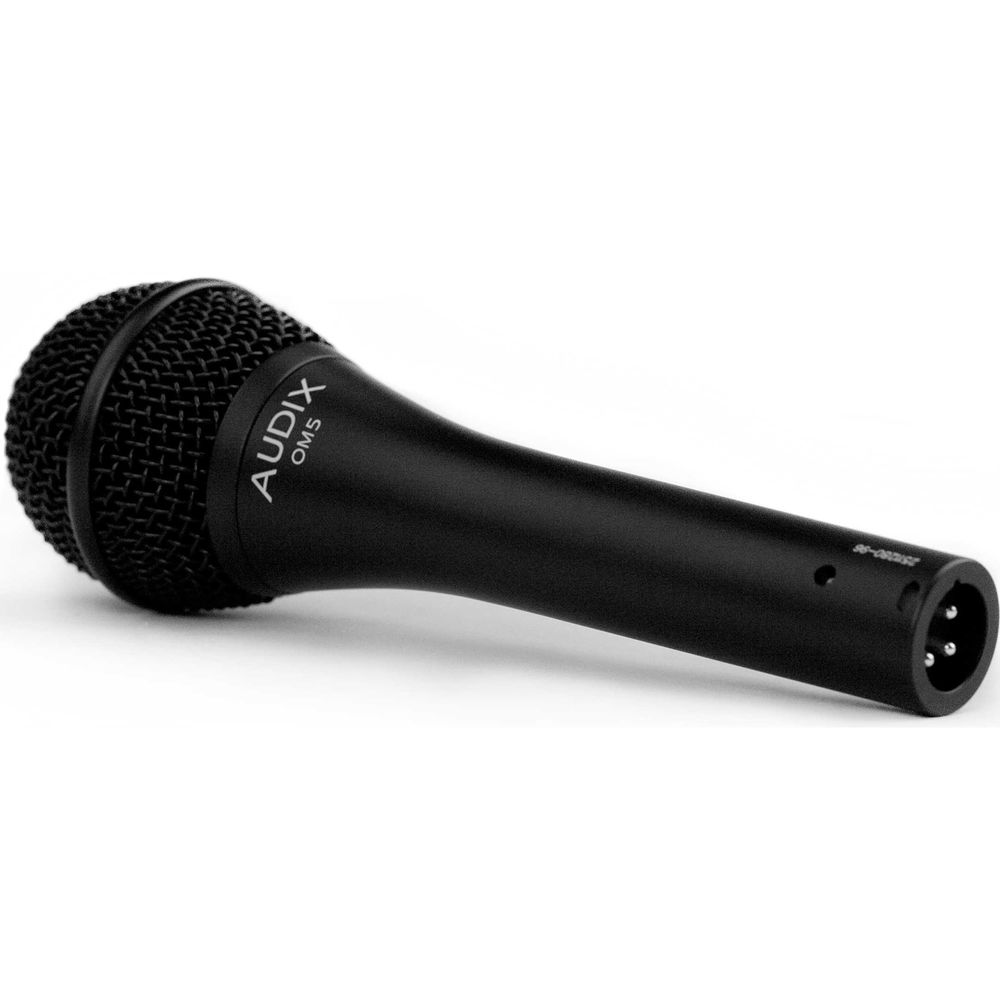

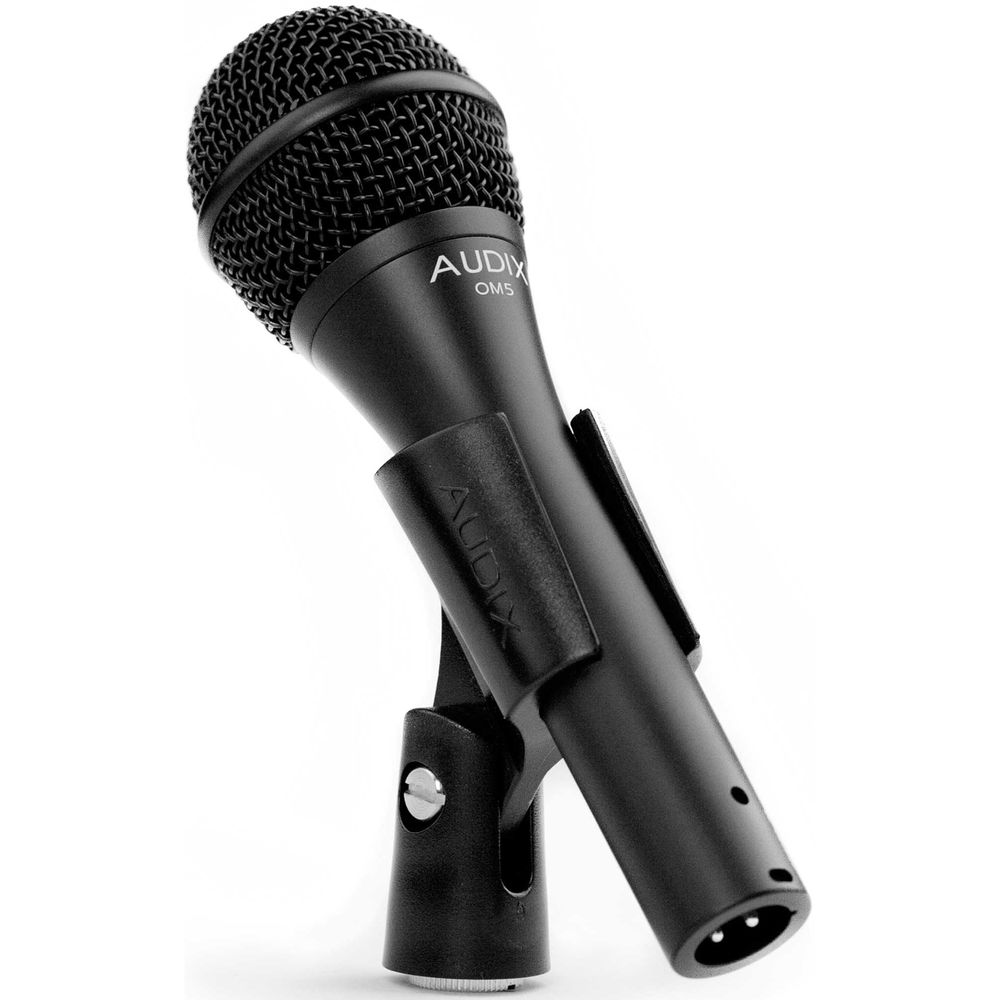

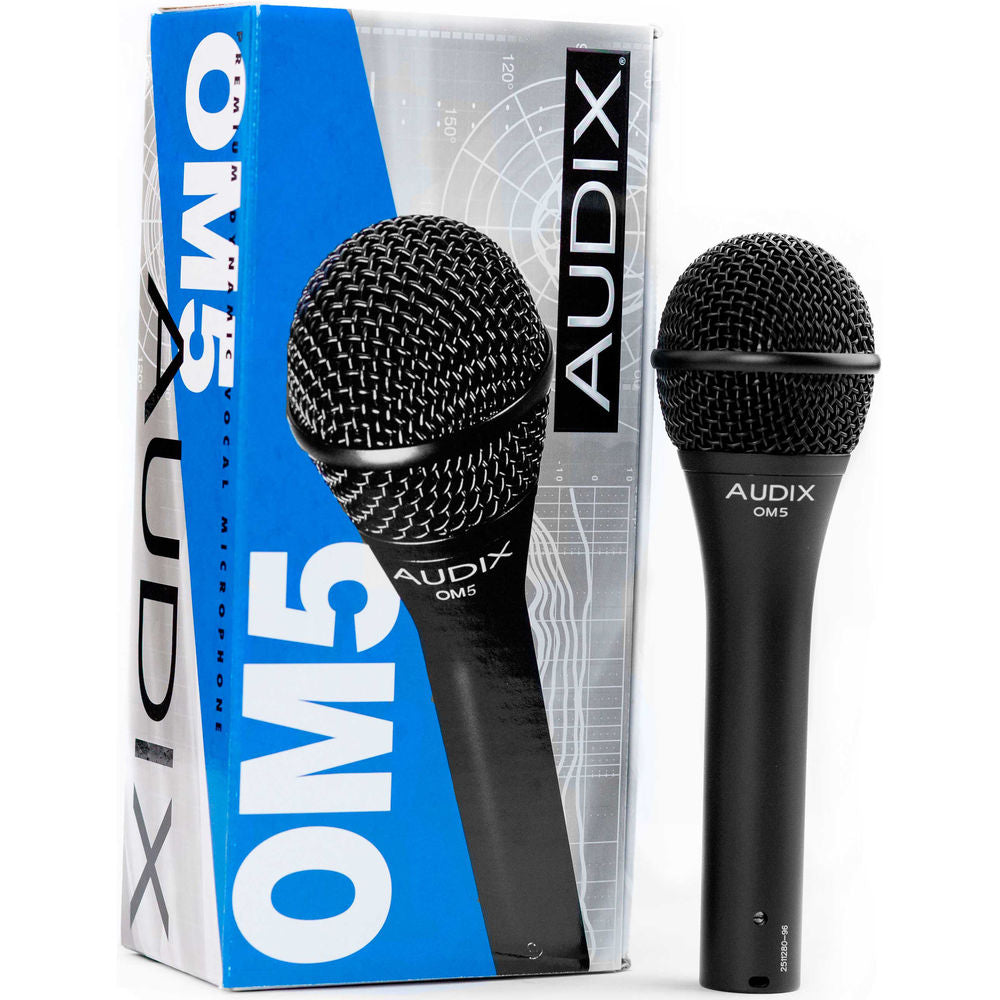

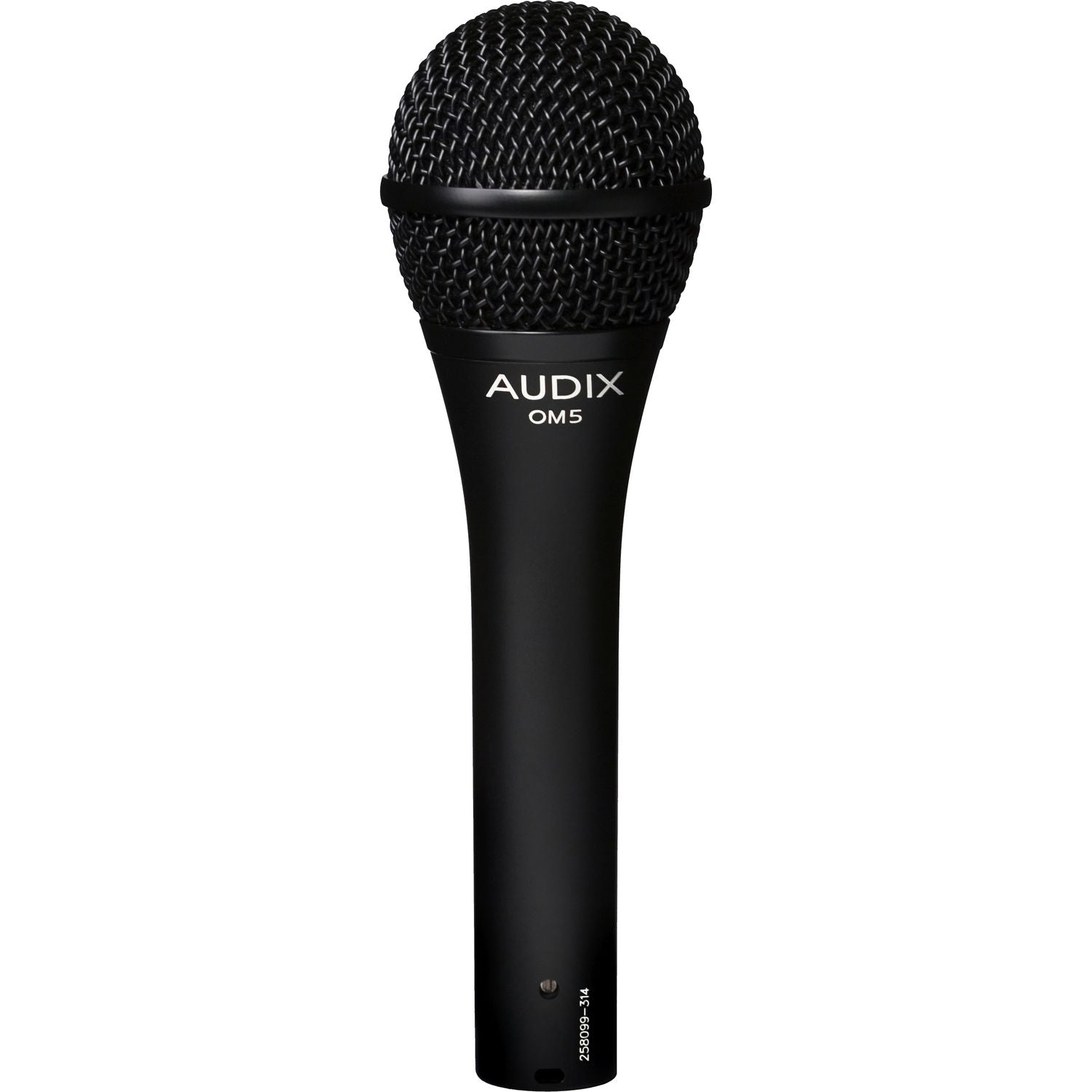

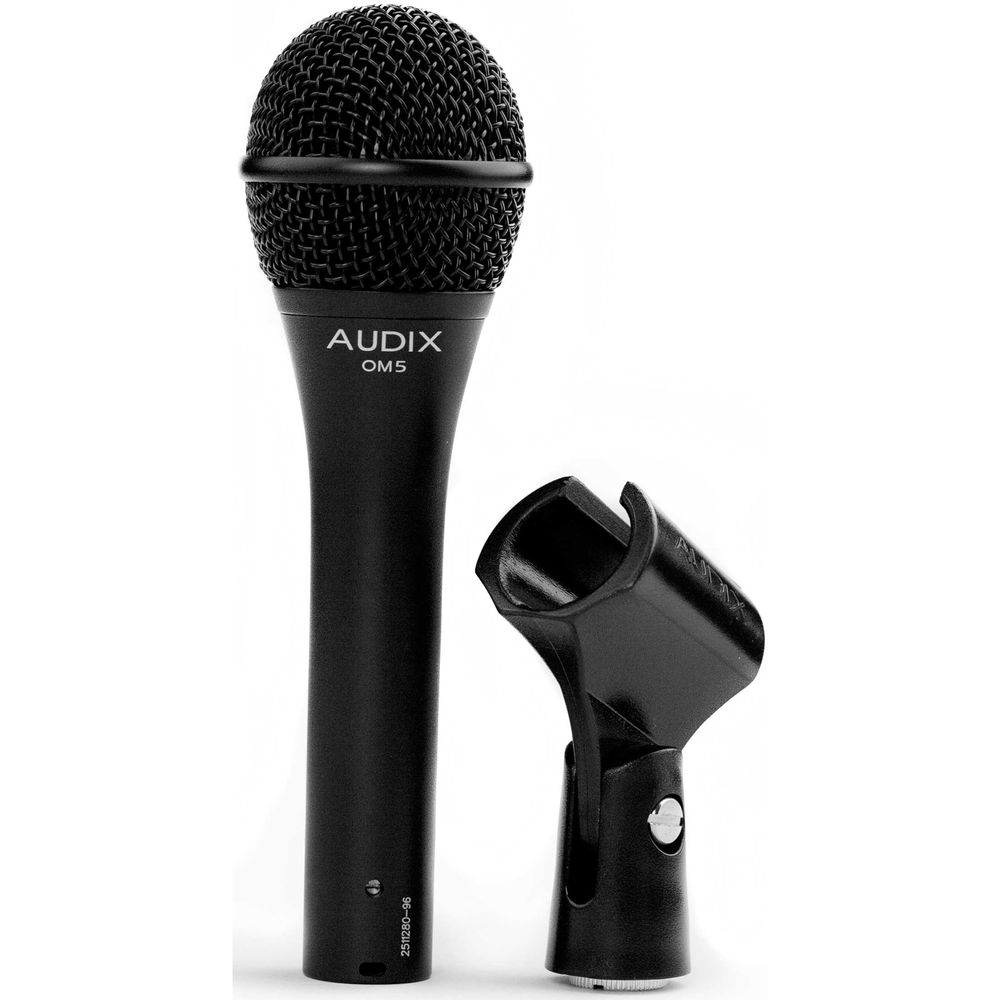

Audix OM5 Handheld Hypercardioid Dynamic Microphone

Crafted with precision by Audix, the OM5 is a dynamic vocal microphone adept for stage performances, studio recordings, and broadcast applications. Renowned for its clarity, resistance to feedback, and ability to manage exceptionally high Sound Pressure Levels (SPL) exceeding 144 dB without any distortion, the OM5 stands out in demanding audio environments.

The OM5 boasts an extremely tight and uniformly controlled hypercardioid polar pattern. This focused pickup pattern effectively isolates the vocals, minimizing spill from other instruments present on stage. Covering a broad frequency spectrum from 48 Hz to 19 kHz, the OM5 incorporates a VLM™ (Very Low Mass) diaphragm. This innovative design ensures a natural response, precise sound reproduction, and remarkable transient response, capturing the nuances of vocal performances.

To optimize vocal clarity, the OM5 features a natural attenuation at 120 Hz, which effectively reduces unwanted boominess and handling noise. Furthermore, the mid-range frequencies are specifically tailored to enhance presence, allowing the vocalist to be heard more distinctly in both the main sound system and stage monitors. The OM5 is designed for comfortable handling and built to last, adhering to stringent manufacturing standards and tight tolerances.

Constructed with a robust precision die-cast zinc alloy body, the OM5 features a durable black E-coat finish, a dent-resistant steel mesh grill, and a gold-plated XLR connector, ensuring reliable performance for years to come.

Features:

• Concert level, professional vocal mic for live sound, broadcast, and studio
• Very tight pattern control, exceptional clarity for premium PA systems
• Clear, accurate sound with slight mid-range moost
• Allows vocals to cut through the stage mix
• Extreme off-axis rejection provides excellent isolation on stage
• VLM Capsule

Specifications:

Transducer Type: Dynamic

Frequency Response: 48Hz - 19kHz

Polar Pattern: Hypercardioid

Output Impedance: 200 ohms

Sensitivity: 2 mV / Pa @ 1k

Capsule Technology: >30 dB

Maximum SPL: ≥144 dB

Connector: 3-pin XLRm

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: Zinc Alloy / Black Finish

Weight: 330 g / 11.6 oz

Length: 176 mm / 6.9 in
